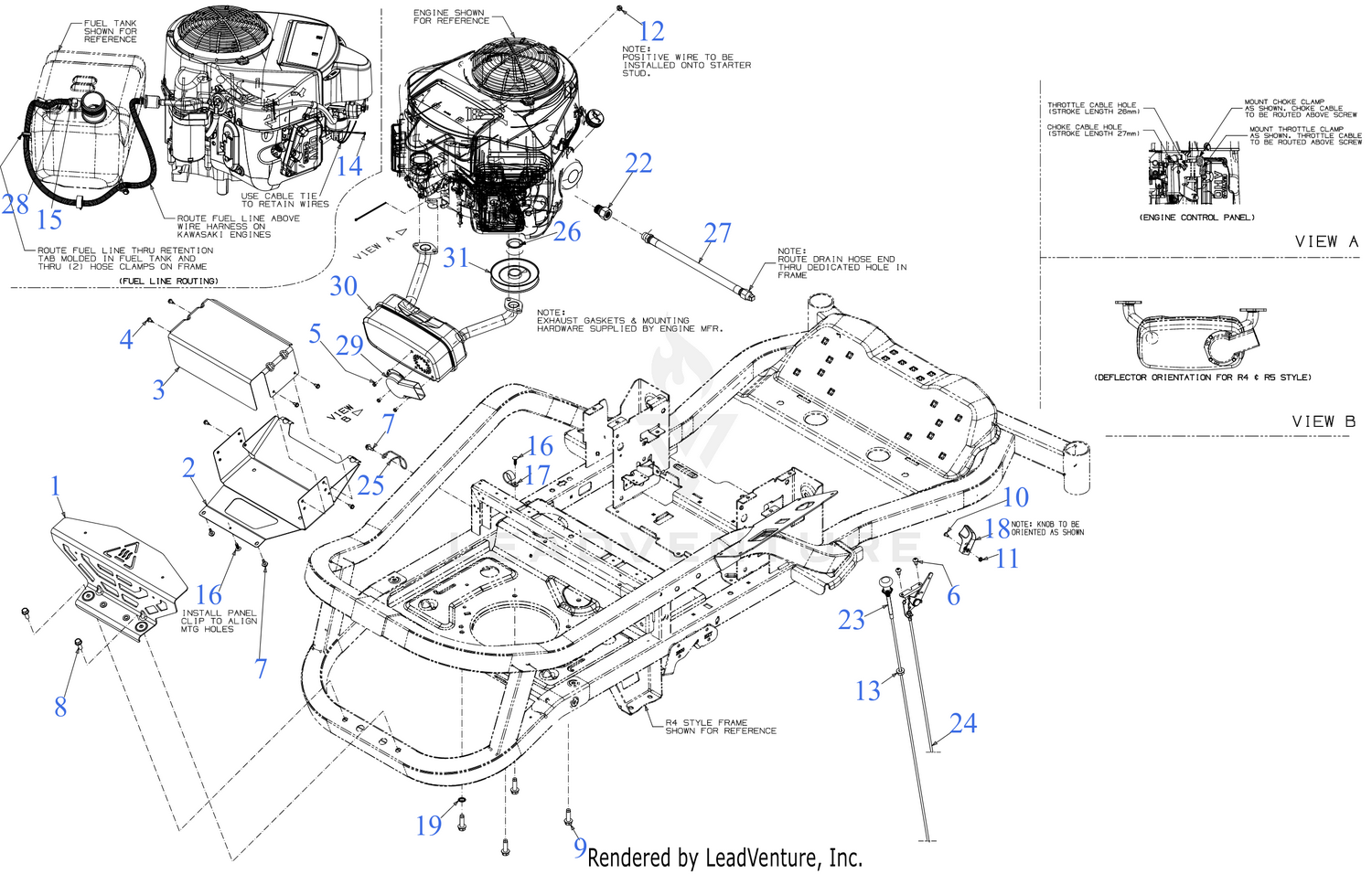

| Ref | Part Number | Description |
|---|
| 1 |
603P06299A |
MUFFLER COVER (REAR) Price: $86.26 |
| 2 |
703-16041A |
MUFFLER SHIELD (LOWER) Price: $74.49 |
| 3 |
703-16042A |
MUFFLER SHIELD (TOP) Price: $42.34 |
| 4 |
910-0224 |
HEX SCREW AB-TAP #10 x .50 Price: $3.19 |
| 5 |
710-0227 |
HEX SCREW WASHER HD #8-18 x 0.500 Price: $3.90 |
| 6 |
710-05070A |
SCREW 1/4-20 x .5 Price: $6.01 |
| 7 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 8 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 9 |
710-1315 |
SCREW 3/8-16 X1.250 Price: $3.90 |
| 10 |
710-3217 |
SCREW #8-32X.38 LG Price: $5.94 |
| 11 |
712-0142 |
HEX NUT 8-32 Price: $3.90 |
| 12 |
712-05106 |
HEX NUT 1/4-20 Price: $2.72 |
| 13 |
712-3005 |
HEX FLANGE NUT Price: $5.99 |
| 14 |
726-0197 |
CABLE TIE Price: $3.22 |
| 15 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 16 |
726-04099A |
RATCHET CLIP (.188 x .85) Price: $3.16 |
| 17 |
726-04119 |
DRAIN HOSE CLAMP Price: $2.83 |
| 18 |
731-09637 |
THROTTLE CONTROL KNOB Price: $7.44 |
| 19 |
736-0148 |
LOCK WASHER 3/8 Price: $3.19 |
| 22 |
737-04138A |
OIL DRAIN FITTING (M20x2.5) Price: $22.64 |
| 23 |
746P04847A |
CHOKE CABLE 40.5 LG Price: $35.39 |
| 24 |
946-05131A |
THROTTLE CABLE 38.5" Price: $40.05 |
| 25 |
747-10050 |
HOSE GUIDE Price: $4.08 |
| 26 |
748-05079 |
ENGINE PULLEY SPACER Price: $6.47 |
| 27 |
751-10291D |
OIL DRAIN HOSE W/VIBRA SEAL This part replaces 751-10291C. Price: $46.52 |
| 28 |
751-22813-36 |
FUEL HOSE 1/4-36" This part replaces 751-10349-28. Price: $41.21 |
| 29 |
751-11053B |
EXHAUST DELECTOR (LONG) Price: $4.64 |
| 30 |
951-11471F |
EXHAUST MUFFLER (TWIN) This part replaces 951-11471D. Price: $132.01 |
| 31 |
756-05623A |
TRANSMISSION DRIVE PULLEY This part replaces 756-05623. Price: $28.63 |
