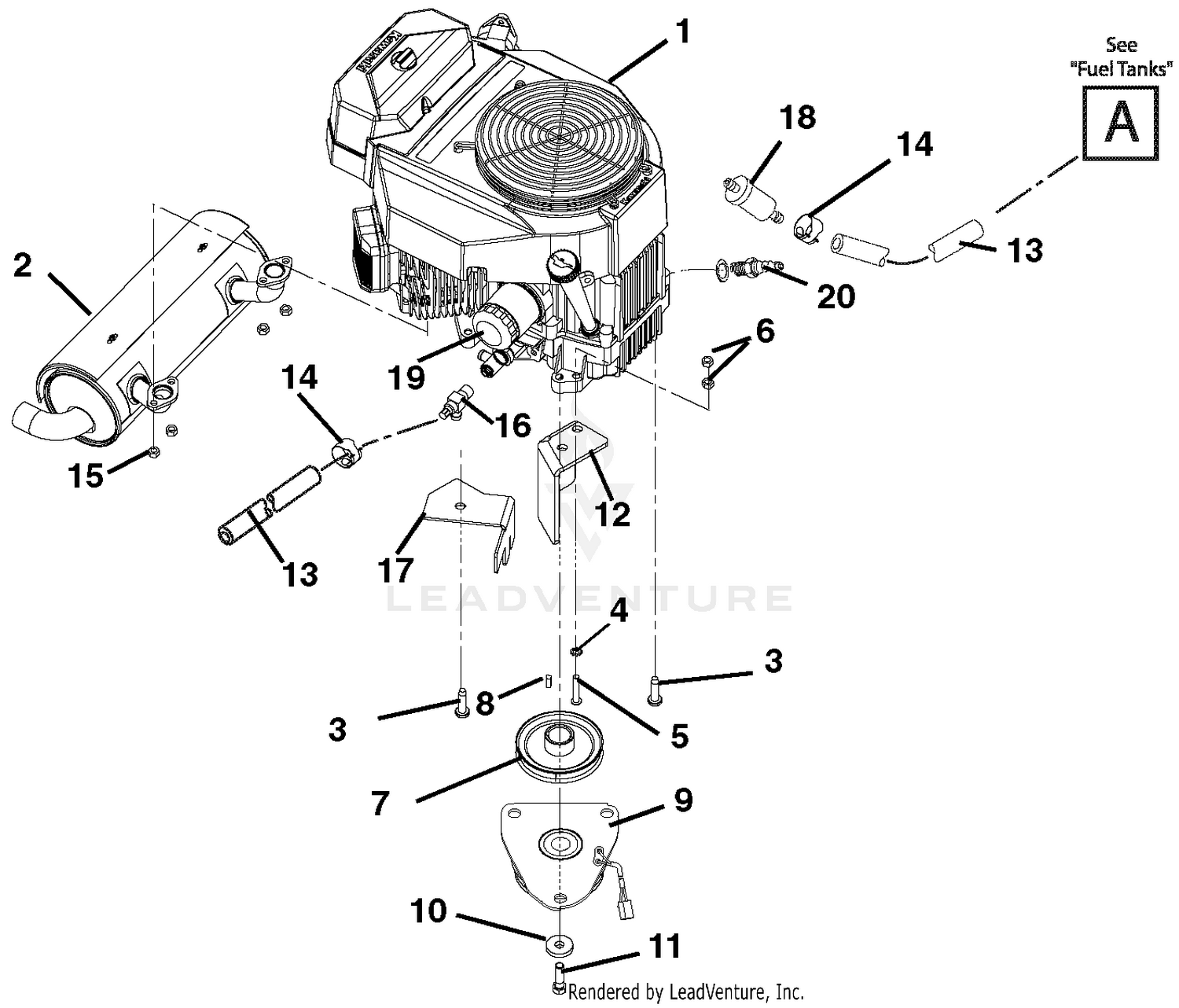

| Ref | Part Number | Description |
|---|
| 1 |
08200140 |
ENGINE, KAWASAKI 19HP Price: Call Us |
| 2 |
09298000 |
MUFFLER, KAW. (COMPACT-Z) Price: $201.45 |
| 3 |
07000104 |
BLT, TAP .38-16X1.5 PH TRX YZ Price: $3.45 |
| 4 |
06300125 |
WSHR-LK-EXT 0.326X0.599X0.031 ZCC This part replaces 06307200. Price: $0.45 |
| 5 |
05901308 |
BLT-BTNHD .31-18 X 1.75 YWZC Price: $3.95 |
| 6 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 7 |
07331667 |
PULLEY, 4.50 OD X 1.127 ENGINE This part replaces 07300106. Price: $59.95 |
| 8 |
06602700 |
KEY-SQ .25X.625X.25 SAE 8630 Price: $3.45 |
| 9 |
03789900 |
CLUTCH, OGURA GT1A-AR03 Price: $286.45 |
| 10 |
06401111 |
WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95 |
| 11 |
05902004 |
BLT- HEX .44-20X1.50 G5ZCCEP80 This part replaces 05900039. Price: $5.45 |
| 12 |
03766851 |
ANCHOR - OGURA CLUTCH - HD Price: $33.95 |
| 14 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 15 |
06500919 |
NUT-LK-TOP-FLG M8 ZCC This part replaces 06500018. Price: $1.95 |
| 16 |
00429000 |
DRAIN, 1/2" OIL Price: $35.95 |
| 17 |
03772951 |
GUARD, HD CLUTCH WIRE Price: $28.95 |
| 18 |
21438400 |
WASHER 8, POLISHED Price: $1.10 |
| 19 |
21535800 |
FILTER,OIL - KAW Price: $27.45 |
| 20 |
21533600 |
PLUG, SPARK Price: $7.45 |
