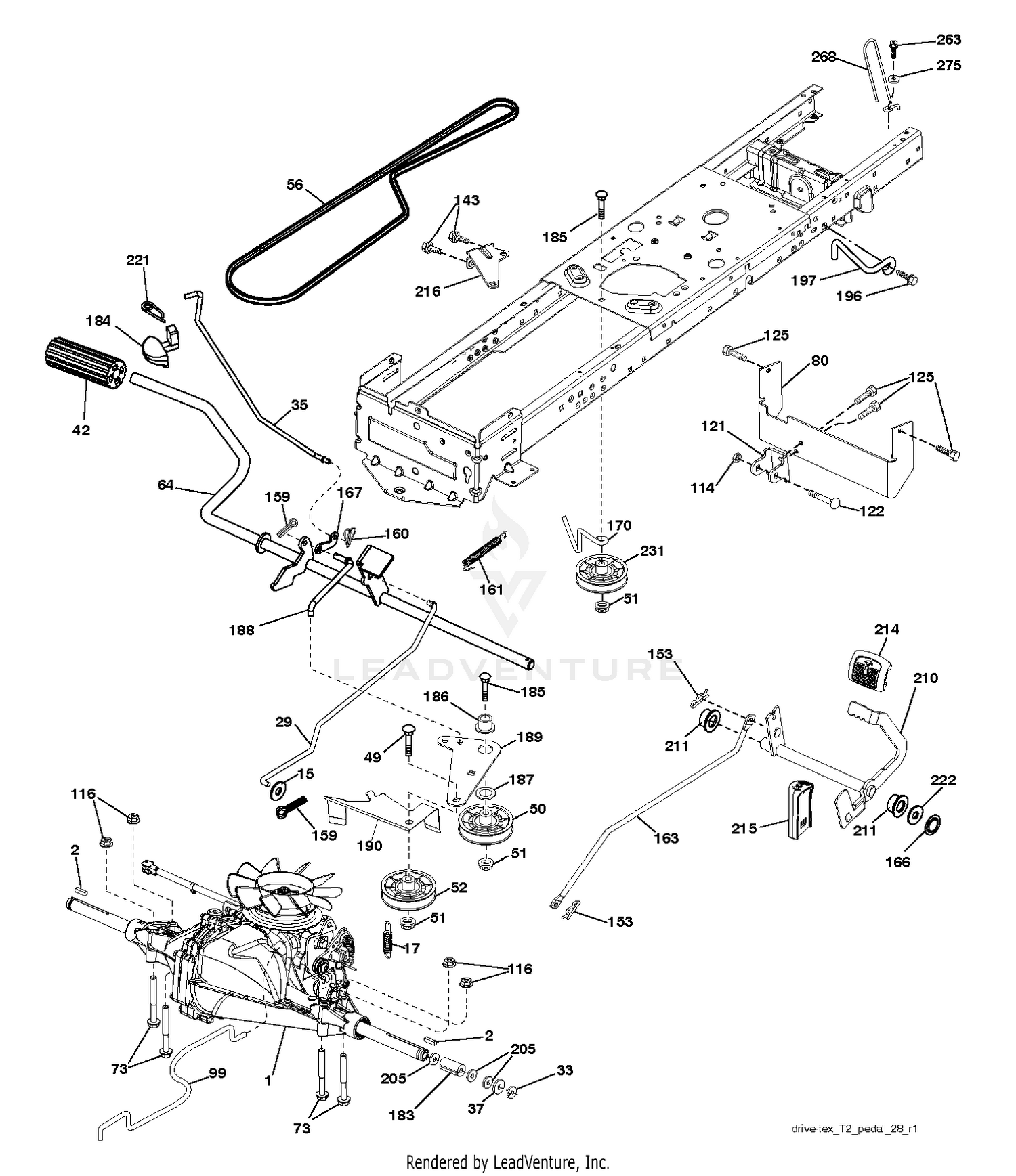

| Ref | Part Number | Description |
|---|
| 1 |
58-6780 |
PLUG Price: $47.43 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
60-6450 |
DISC Price: $12.41 |
| 3 |
58-6760 |
SPRING Price: $17.61 |
| 4 |
58-6770 |
PLUNGER Price: $46.54 |
| 5 |
58-6790 |
O-RING Price: $2.81 |
| 6 |
353-508 |
PLUG-HH This part replaces 58-6710. Price: $7.96 |
| 7 |
58-6720 |
O-RING Price: $1.30 |
| 9 |
60-5720 |
O-RING Price: $1.86 |
| 10 |
58-6370 |
WASHER Price: $40.36 |
| 11 |
58-6350 |
PLUG Price: $36.88 |
| 12 |
60-6410 |
O-RING Price: $1.35 |
| 14 |
58-6740 |
DISCONTINUED Price: Call Us |
| 15 |
58-6750 |
O-RING Price: $1.77 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
58-6470 |
WASHER Price: $2.71 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 17 |
58-6480 |
WASHER Price: $1.57 |
| 18 |
58-6490 |
WASHER Price: $0.68 |
| 19 |
58-6430 |
DISCONTINUED Price: Call Us |
| 20 |
58-6440 |
POPPET Price: $56.35 |
| 22 |
58-6450 |
O-RING Price: $2.48 |
| 23 |
58-6400 |
BUSHING Price: $37.39 |
| 24 |
58-6700 |
WASHER Price: $1.67 |
| 25 |
58-6730 |
SPRING Price: $13.26 |
| 26 |
58-6310 |
SPACER Price: $108.75 |
| 27 |
58-6460 |
RING-RETAINING Price: $1.22 |
| 28 |
58-6420 |
CAP Price: $42.88 |
| 29 |
532423239 |
ROD.BRAKE.T2.TEX Price: $39.99 |
| 29 |
60-6380 |
PLUNGER Price: $299.27 |
| 30 |
58-6380 |
PLUG Price: $325.92 |
| 31 |
58-6410 |
SPRING Price: $12.58 |
| 32 |
60-6440 |
EYELET Price: $2.04 |
| 33 |
58-6290 |
POPPET Price: $47.04 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
58-6330 |
SEAT Price: $39.50 |
| 35 |
596874801 |
Rods This part replaces 532401031. Price: $6.99 |
| 36 |
58-6340 |
O-RING Price: $12.86 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 37 |
58-6300 |
DISCONTINUED Price: Call Us |
| 40 |
58-6320 |
WIPER Price: $10.93 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 56 |
532125907 |
BELT Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 80 |
581550701 |
STRAP.TORQUE.T2 Price: $22.99 |
| 99 |
532408418 |
ROD.ASM.BYPASS.SPRING.T2.FS Price: $7.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
594007201 |
Rods This part replaces 532413322. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 183 |
532156972 |
SPACER, AXLE PVST Price: $5.99 |
| 184 |
532411484 |
HANDLE.PARKNG BRK.PRED.LT.428 This part replaces 532441407. Price: $24.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
583376501 |
PAD.PEDAL.REVERSE This part replaces 532419482. Price: $8.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 268 |
583122001 |
GUARD.MUFFLER This part replaces 532182402. Price: $5.99 |
| 275 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
