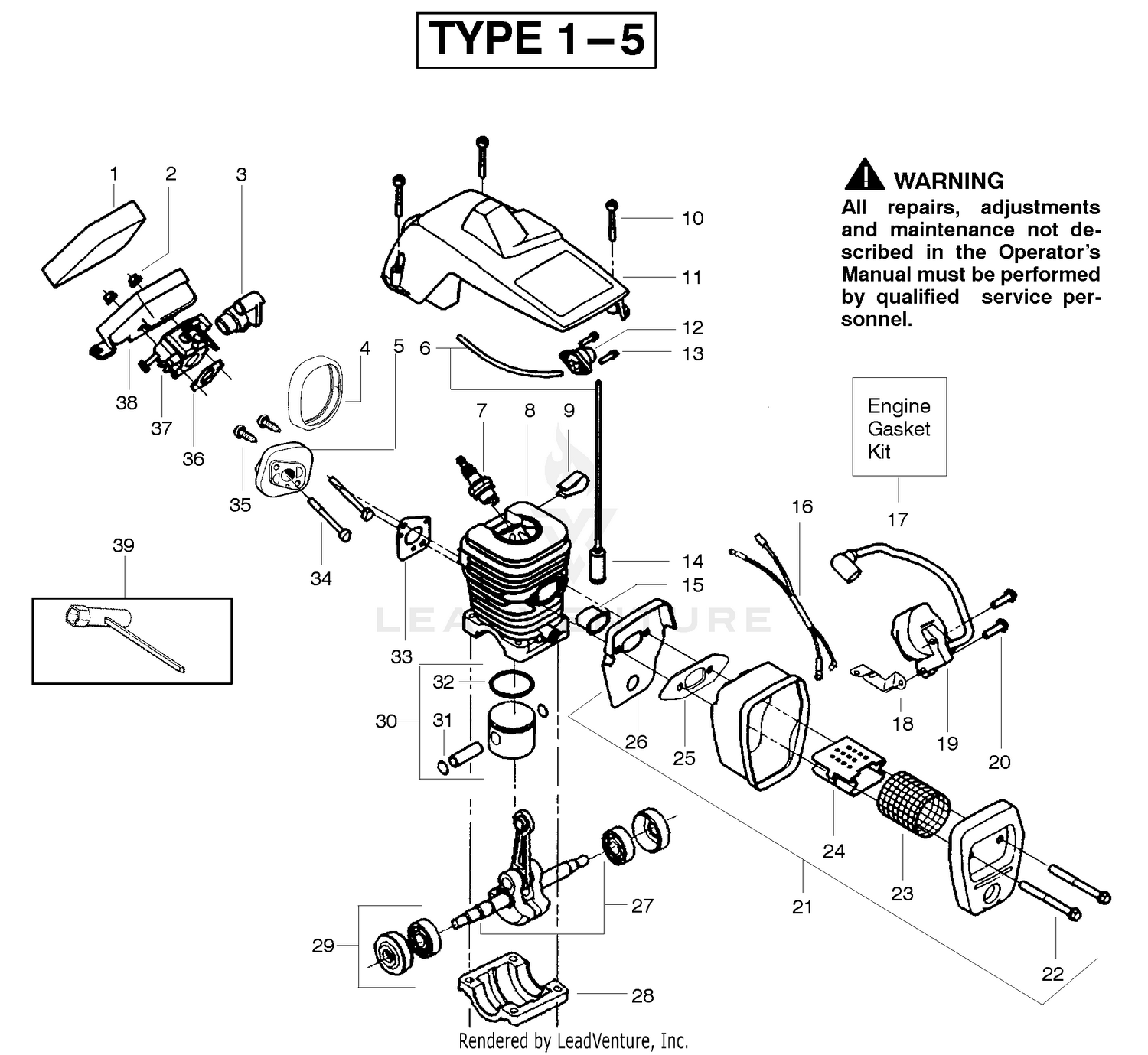

| Ref | Part Number | Description |
|---|
| 1 |
147-0901 |
ARM-PITCH This part replaces 119-9307-01. Price: $179.09 |
| 1 |
530037793 |
Foam- Air Filter Price: $1.99 |
| 2 |
117-9456 |
CROSSLINK Price: $54.18 |
| 2 |
530016101 |
Nut Price: $1.99 |
| 3 |
119-4012 |
SCREW-HWHTF Price: $0.61 |
| 3 |
530035526 |
Grommet-Carb Adjust Price: Call Us |
| 4 |
120-3221 |
LH REEL NUT ASM Price: $33.34 |
| 4 |
530054144 |
Seal-Carb Adapter Price: $2.99 |
| 5 |
115-3340 |
WEIGHT ASM Price: $136.76 |
| 5 |
530049700 |
Carb. Adapter Price: $3.99 |
| 6 |
115-5227 |
MOTOR ADAPTER ASM Price: $98.96 |
| 6 |
530069247 |
Fuel Line Kit (Small) Price: $3.99 |
| 7 |
117-6706 |
CLAMP-MOTOR Price: $34.81 |
| 7 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 8 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 8 |
530047127 |
CYLINDER This part replaces 530069606. Price: $59.99 |
| 9 |
117-6849 |
SHIELD-SPRING Price: $48.38 |
| 9 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 10 |
3274-18 |
SCREW-HSH Price: $8.88 |
| 10 |
530016153 |
Screw Price: $1.99 |
| 11 |
119-4038 |
NUT-HEX Price: $0.31 |
| 11 |
530049227 |
Cylinder Shield Price: $8.99 |
| 12 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 13 |
530015780 |
Screw Price: $1.99 |
| 14 |
530095646 |
Fuel Pick-up Ass'y. Price: $2.99 |
| 15 |
530037652 |
Heat Insulator Price: $1.99 |
| 16 |
530052296 |
Assy. -Wire Harness Price: $4.99 |
| 18 |
530047442 |
Strap-Ground Price: $1.99 |
| 19 |
530071905 |
KIT This part replaces 530039167. Price: $37.99 |
| 20 |
530015814 |
Screw Price: $1.99 |
| 22 |
530016132 |
Screw Price: $1.99 |
| 23 |
530036103 |
Screen-Spark Price: Call Us |
| 24 |
530037813 |
Diffuser-Muffler Price: $1.99 |
| 25 |
530069608 |
Gasket-Muffler (kit) Price: $5.99 |
| 26 |
530049870 |
Backplate-Muffler Price: $3.99 |
| 27 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 28 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 29 |
530056363 |
Assy.-Seal & Bearing Price: $11.99 |
| 31 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 32 |
530029805 |
Ring - Piston Price: $2.99 |
| 33 |
530069608 |
Gasket-Carb. Adap.(kit) Price: $5.99 |
| 34 |
530016187 |
Screw Price: $1.99 |
| 35 |
530016386 |
Screw Price: $5.99 |
| 36 |
530069608 |
Gasket - Carb. (kit) Price: $5.99 |
| 37 |
545081885 |
Kit-Carburetor (Walbro-WT-89) This part replaces 530069703. Price: $22.99 |
| 38 |
530057480 |
Housing- Air Filter This part replaces 530037804. Price: $4.99 |
| 39 |
530031163 |
Wrench - Bar Price: $4.99 |
