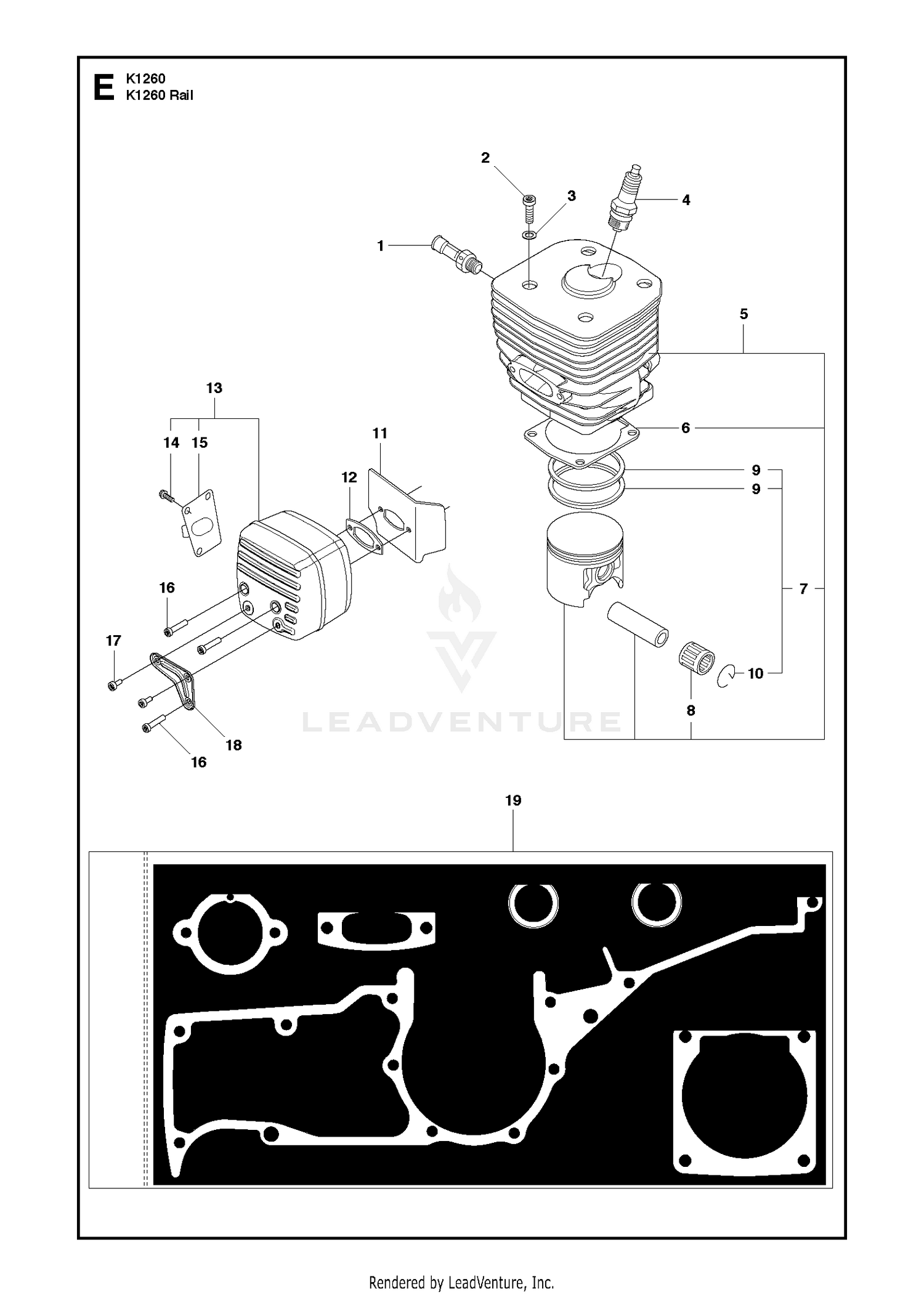

CYLINDER, PISTON & MUFFLER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503665601 | VALVE Price: $24.99 |
| 2 | 516002401 | SCREW UNC Price: $3.99 |
| 3 | 503230005 | WASHER 6.5X11 Price: $2.99 |
| 6 | 503134601 | GASKET Price: $4.99 |
| 8 | 503132901 | SUPPORT BUSHING Price: $9.99 |
| 9 | 503289026 | PISTON RING Price: $22.99 |
| 10 | 737441300 | CLIP Price: $1.99 |
| 11 | 506341401 | PLATE Price: $11.99 |
| 12 | 503131305 | GASKET Price: $4.99 |
| 14 | 574560401 | SCREW EHHM Price: $2.99 |
| 15 | 505419001 | EXHAUST DUCT Price: $22.99 |
| 16 | 544218420 | SCREW ITXSCM Price: $3.99 |
| 17 | 503215312 | SCREW Price: $3.99 |
| 18 | 502850801 | SUPPORT Price: $9.99 |
| 20 | 579851101 | GASKET K1270 This part replaces 506274302. Price: $3.99 |
| 22 | 503260205 | SEALING RING Price: $11.99 |
