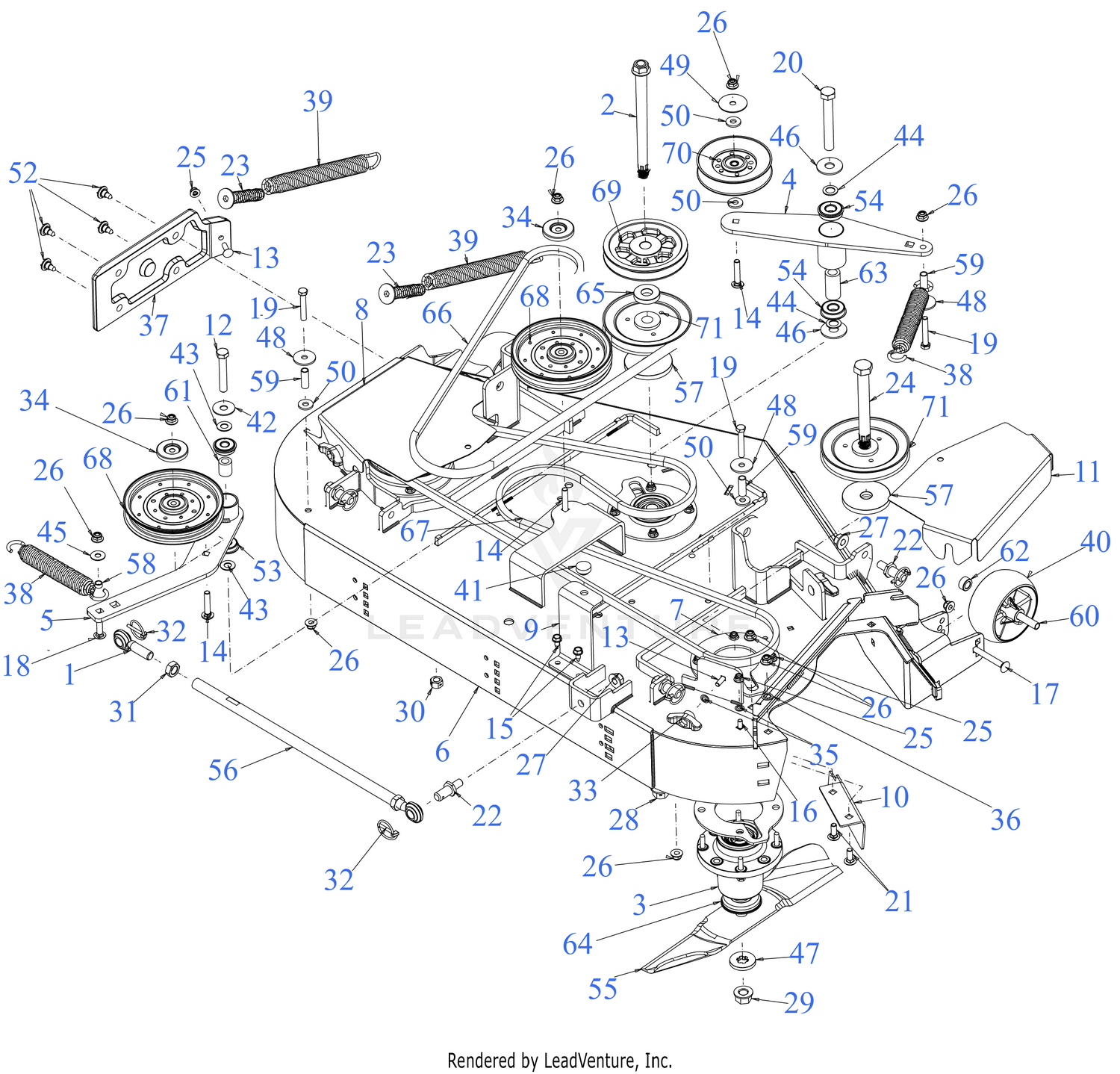

| Ref | Part Number | Description |
|---|
| 1 |
01007487 |
MALE ROD END Price: $78.25 |
| 2 |
611-05847 |
SPINDLE SHAFT Price: $52.41 |
| 4 |
680E00874 |
IDLER BRACKET Price: $83.08 |
| 7 |
703E10057A |
SPINDLE SUPPORT PLATE TOP & BOTTOM Price: $22.65 |
| 10 |
703-26531 |
BAFFLE Price: $12.97 |
| 12 |
710-0182A |
SCREW-HEX 1/2-13 x 3.00 Price: $6.88 |
| 13 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 14 |
710-04157 |
CARRIAGE BOLT 3/8-16 x 2 Price: $7.85 |
| 15 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 16 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 17 |
710-05384 |
CARRIAGE BOLT 3/8-16 x 4.00 GR5 Price: $4.69 |
| 18 |
710-05408 |
CARRIAGE BOLT 3/8-16 X1.25 GR5 Price: $3.37 |
| 19 |
710-3011 |
SCREW 3/8-16 x 2.25 GR5 Price: $6.49 |
| 20 |
710-3151A |
SCREW 5/8-18X4.5 GR5 Price: $16.85 |
| 21 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 22 |
711-05604 |
PIN Price: $9.67 |
| 23 |
711-06667 |
SPRING INSERT SCREW Price: $35.01 |
| 24 |
711-06787 |
SPINDLE SHAFT Price: $29.42 |
| 25 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 26 |
712-04065 |
NUT Price: $3.68 |
| 27 |
712-04150 |
NUT Price: $3.74 |
| 28 |
712-04327 |
NUT Price: $6.57 |
| 29 |
712-05203 |
FLANGE NUT - 5/8-18 GDE 8 Price: $6.16 |
| 30 |
712-3022 |
HEX NUT CTR LK 1/2-13 Price: $3.61 |
| 31 |
712-3056 |
HEX JAM NUT 5/8-18 Price: $4.21 |
| 32 |
753-04070 |
LYNCH PIN .1875 Price: $8.64 |
| 33 |
720-04122 |
WING KNOB 5/16-18 Price: $5.87 |
| 34 |
721-04516 |
PULLEY CAP Price: $12.89 |
| 35 |
726-0201 |
PUSH NUT Price: $6.01 |
| 36 |
712-0229 |
PUSH NUT Price: $3.14 |
| 37 |
731-11926 |
DECK SKID PLATE (LH) Price: $44.26 |
| 38 |
732-05360C |
SPRING 1.25" DIA x 8.5" LONG This part replaces 732-05360A. Price: $30.00 |
| 39 |
732-05476 |
EXTENTION SPRING 1.20 x 11.35 Price: $30.40 |
| 40 |
734-04155 |
DECK WHEEL Price: $19.04 |
| 41 |
735-05058 |
RUBBER BUMPER 1.000 x .313 Price: $2.83 |
| 42 |
736-0208 |
WASHER .51 x 1.5 x .07 Price: $4.02 |
| 43 |
736-0272 |
FLAT WASHER .510 x .995 Price: $4.37 |
| 44 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 45 |
736-04183 |
WASHER-.395 x 1.0 x .62 Price: $4.64 |
| 46 |
736-05210 |
FLAT WASHER 0.635xX1.755x0.110 Price: $9.52 |
| 47 |
736-05223A |
FLAT WASHER - SPECIAL Price: $5.95 |
| 48 |
736-3039 |
FLAT WASHER .406X1.500X.105 Price: $4.42 |
| 49 |
736-3040 |
HUB CAP WASHER .406 x 1.92 x .060 Price: $5.52 |
| 50 |
736-3052 |
FLAT WASHER .406ID X1.0 OD Price: $4.02 |
| 52 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 53 |
741-05247 |
ROLLER BEARING .5X1.37X.44 Price: $11.38 |
| 54 |
941-0563 |
BALL BEARING W/RET Price: $33.84 |
| 56 |
747-10270 |
TUBE .565 X .750 X 18.75"LG This part replaces 747E10270. Price: $33.11 |
| 57 |
748-05174A |
SPINDLE SPACER (UPPER) This part replaces 748-05174. Price: $9.81 |
| 58 |
750-0526 |
SPACER Price: $3.96 |
| 59 |
750-05673 |
SPACER Price: $7.49 |
| 60 |
750-06199 |
SPACER .38X.49X3.05LG Price: $7.44 |
| 61 |
750-06330 |
SPACER 0.51 x 0.88 x 1.00 Price: $5.78 |
| 62 |
750-0664 |
SPACER-.505 1D Price: $6.01 |
| 63 |
750-06716 |
SPACER 0.63 x 1.00 x 2.01 Price: $5.78 |
| 64 |
750-06749A |
SPINDLE SPACER (LOWER) This part replaces 750-06749. Price: $11.42 |
| 65 |
750-10830 |
SPACER Price: $5.57 |
| 66 |
754P06034 |
BELT B SEC x 87.30 Price: $77.06 |
| 67 |
754P06514 |
BELT B SEC X 109.9 Price: $101.02 |
| 68 |
756-04487 |
IDLER PULLEY Price: $58.67 |
| 69 |
756-04497A |
DRIVE PULLEY This part replaces 756-04497. Price: $111.78 |
| 70 |
756-04522 |
IDLER PULLEY 5.06 OD Price: $34.82 |
