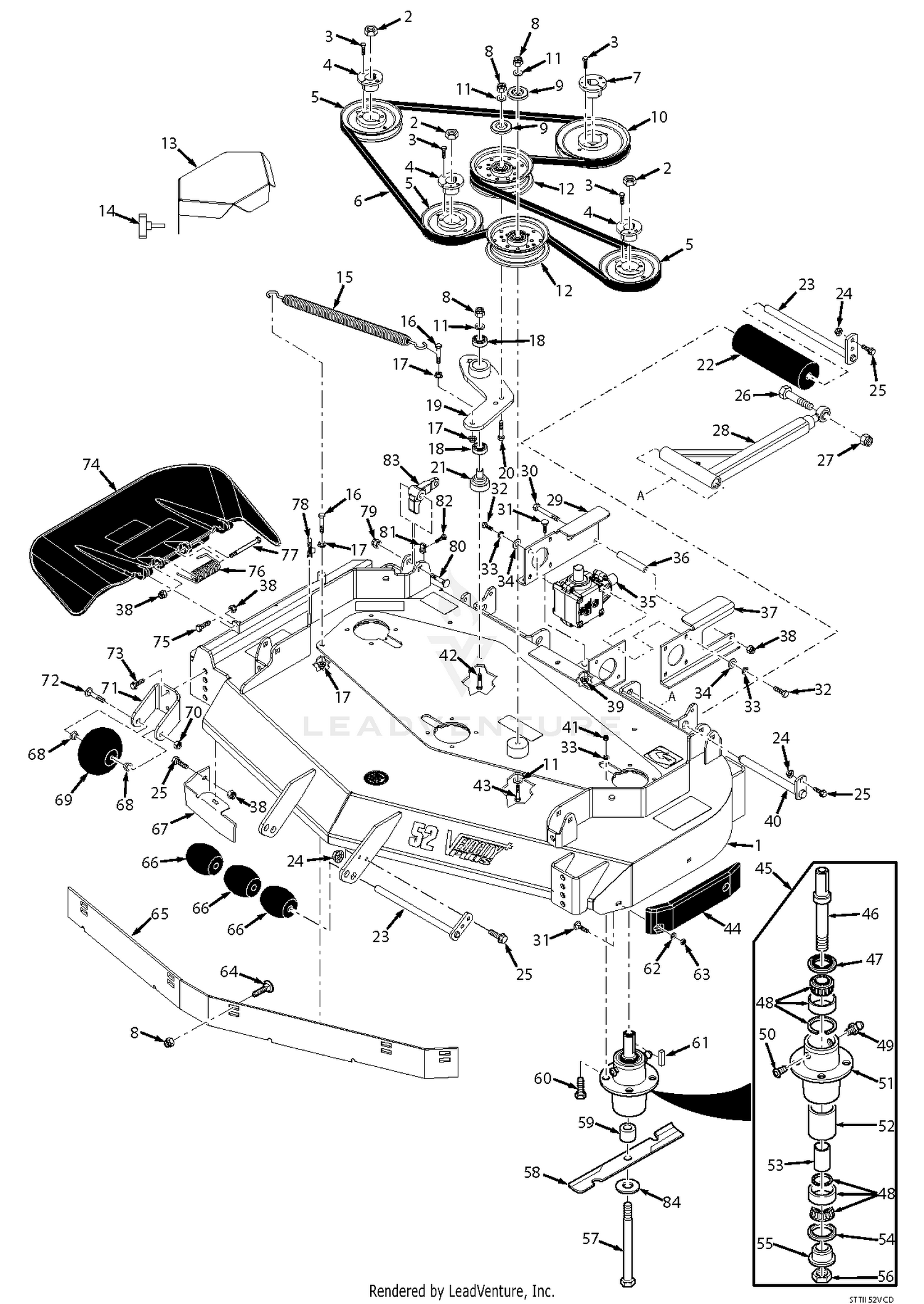

| Ref | Part Number | Description |
|---|
| 1 |
462879 |
Cutter Deck w/Decals - 52V Price: Call Us |
| 2 |
04020-09 |
Nut, 5/8-11 UNC Price: Call Us |
| 4 |
48926 |
Tapered Hub, 1-1/8" Bore Price: Call Us |
| 5 |
482744 |
Pulley, 5.75 O.D. Price: Call Us |
| 6 |
482281 |
Belt, Cutter Deck Drive Price: Call Us |
| 7 |
48141 |
Tapered Hub, 1" Bore Price: Call Us |
| 8 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 9 |
424367 |
Dust Shield Price: Call Us |
| 10 |
482747 |
Pulley, 6.95 O.D. Price: Call Us |
| 11 |
04043-04 |
Flatwasher, 3-8/.391 x .938 x .105 HD Price: Call Us |
| 12 |
483215 |
Pulley, Idler Price: Call Us |
| 13 |
427110 |
Belt Cover Price: Call Us |
| 14 |
481625-01 |
Knob w/Stud Price: Call Us |
| 15 |
483704 |
Spring Price: Call Us |
| 17 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 18 |
48224 |
Bearing Price: Call Us |
| 20 |
04001-22 |
Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us |
| 21 |
43681 |
Pivot, Idler Price: Call Us |
| 22 |
48038 |
Guide Roller Price: Call Us |
| 23 |
45944 |
Roller Shaft Price: Call Us |
| 24 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 25 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 26 |
04001-79 |
Bolt, Hex Head 5/8-11 x 4-1/2" Price: Call Us |
| 27 |
04021-13 |
Nut, Elastic Stop 5/8-11 Price: Call Us |
| 28 |
461516 |
Pusharm Assy., LH & RH Price: Call Us |
| 29 |
424798 |
Mounting Plate Price: Call Us |
| 30 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 31 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 32 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 33 |
04030-03 |
Lockwasher, 5/16" Price: Call Us |
| 34 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 35 |
482486 |
Gearbox Price: Call Us |
| 36 |
43763 |
Spacer Price: Call Us |
| 37 |
428026 |
Mounting Plate This part replaces 424799. Price: Call Us |
| 38 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 39 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 40 |
451240 |
Shaft Weldment, Pusharm Price: Call Us |
| 42 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 43 |
04001-51 |
Bolt, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 44 |
483176 |
Pad, Deck Wear Price: Call Us |
| 45 |
461663 |
Spindle Assembly Price: Call Us |
| 46 |
43589 |
Shaft, Spindle Price: Call Us |
| 47 |
481024 |
Seal, Top Price: Call Us |
| 48 |
481022 |
Bearing Assembly Price: Call Us |
| 49 |
48114-04 |
Grease Fitting Price: Call Us |
| 50 |
48677 |
Relief Fitting, Tapered Spindle Price: Call Us |
| 51 |
43644 |
Spindle Housing Price: Call Us |
| 52 |
43312 |
Spacer, Outside Price: Call Us |
| 53 |
43296 |
Spacer, Inside Price: Call Us |
| 54 |
481025 |
Seal Bottom Price: Call Us |
| 55 |
43297 |
Spindle Bushing, Bottom Price: Call Us |
| 56 |
481035 |
Nut, Special 1-1/16 - 18 Price: Call Us |
| 57 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 58 |
482878 |
Cutter Blade, 18" (52H) Price: Call Us |
| 59 |
43590 |
Spacer, Spindle Bottom Price: Call Us |
| 61 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 62 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 Price: Call Us |
| 63 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 64 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 65 |
424840 |
Baffle, Custom Cut - 52V Price: Call Us |
| 66 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 67 |
424677 |
Baffle, Turbo Price: Call Us |
| 68 |
48100-15 |
Bushing, .376 I.D. Oilite Price: Call Us |
| 69 |
481632 |
Anti-Scalp Wheel Price: Call Us |
| 70 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 71 |
422478 |
Bracket, Anti-Scalp Price: Call Us |
| 72 |
04003-26 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 73 |
04017-27 |
Bolt, Hex Head Serrated Flange 3/8-16 x 1" Price: Call Us |
| 74 |
461845 |
Discharge Chute Assy. Price: Call Us |
| 75 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 76 |
483378 |
Spring, Discharge Chute Price: Call Us |
| 77 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 78 |
04110-04 |
U-Nut, 3/8-16 Price: Call Us |
| 79 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 80 |
04003-42 |
Bolt, Carriage 7/16-14 x 2-1/4" Price: Call Us |
| 81 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 82 |
04107-04 |
Bolt, Hex Head 3/8-16 x 2" Special Price: Call Us |
| 83 |
485528 |
Lever, Deck Level Price: Call Us |
