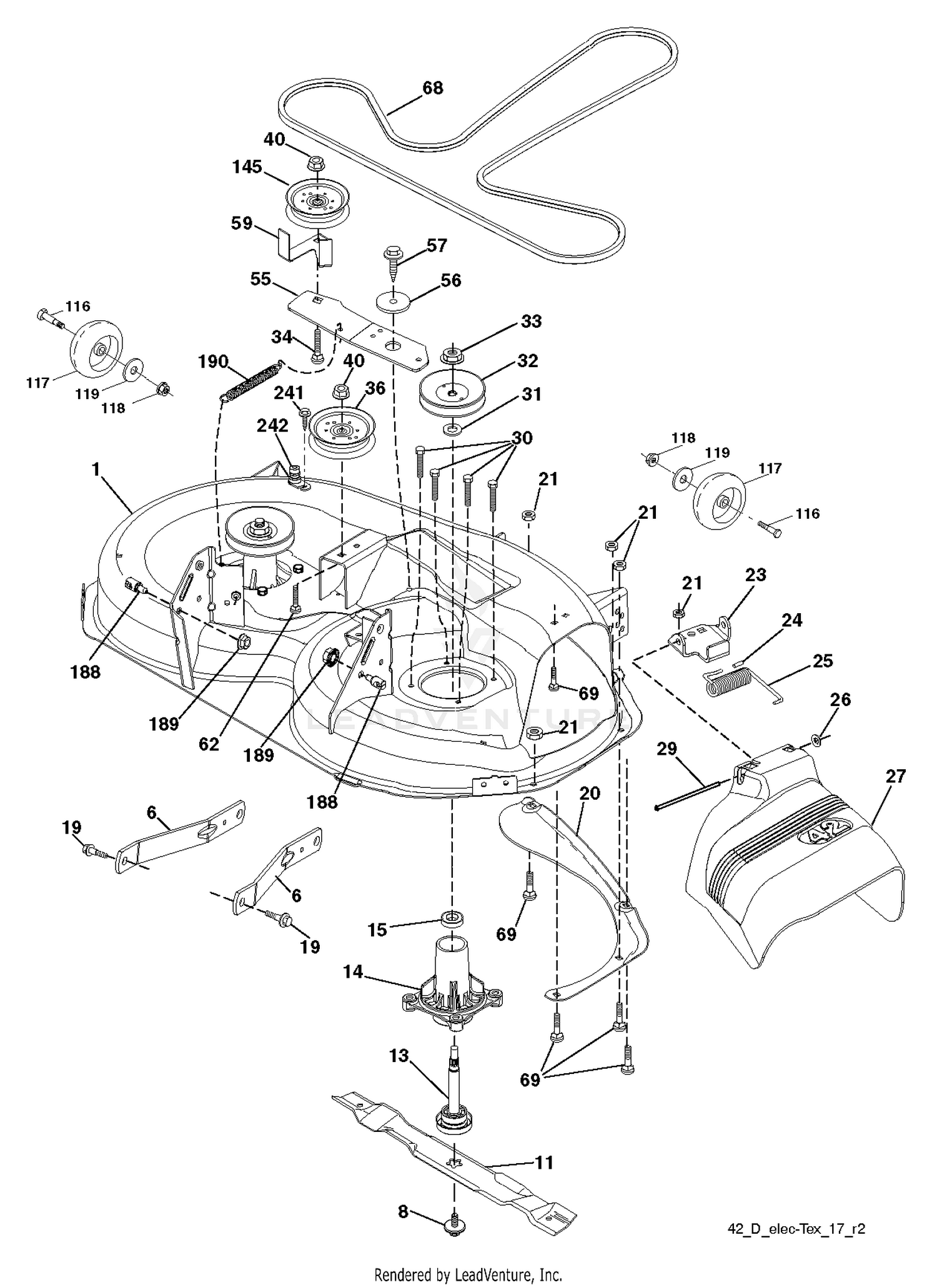

MOWER DECK / CUTTING DECK

MOWER DECK / CUTTING DECK

Parts (75)

RefPart NumberDescription
1 127-3071 WATER PUMP ASM Price: $827.54
1 598602801 Decks This part replaces 532402999. Price: $349.99
3 125-6998 GASKET Price: $12.33
4 125-6999 PLATE Price: $58.91
6 529846401 SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99
8 532193003 BOLT.WASHER.ASM.7/16-2 Price: $6.99
9 127-3017 JOINT Price: $71.31
10 125-7123 PLUG Price: $9.86
11 127-3175 PLUG Price: $2.87
12 125-7195 PLUG Price: $2.71
13 125-7234 SCREW Price: $2.32
13 587819701 KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99
14 125-7047 GASKET Price: $5.13
14 587819701 KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99
15 125-6986 JOINT Price: $24.66
15 532110485 BEARING Price: $11.99
16 125-7048 O-RING Price: $2.87
17 125-6978 GASKET Price: $2.00
18 125-7192 GASKET Price: $1.14
19 532196539 BOLT.SHOULDER Price: $5.99
19 93-0362 BOLT Price: $3.89
20 125-7214 BOLT Price: $3.77
20 531167001 SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99
21 125-7219 BOLT Price: $4.58
22 125-7222 BOLT Price: $4.99
23 125-7039 V-PULLEY Price: $23.56
23 532192557 BRKT.DEFLECTOR.38"2005+ Price: $7.99
24 127-2998 V-BELT Price: $20.88
24 532105304 CAP-SLEEVE LT Price: $3.99
25 125-7206 BOLT Price: $1.97
25 532197026 SPRING.TORSION.DEFLECT Price: $8.99
26 125-7029 THERMOSTAT Price: $56.77
26 532110452 NUT PUSH M Price: $2.99
27 125-7026 GASKET Price: $2.90
27 532403004 SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99
28 125-7034 COVER Price: $78.09
29 125-7110 GASKET Price: $3.76
29 595297001 Rods This part replaces 532131491. Price: $4.99
30 125-7594 BOLT Price: $3.00
30 584953901 BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99
31 125-6953 PLUG Price: $7.59
31 532187690 WASHER.SPACER.MANDREL Price: $3.99
32 125-7124 SENSOR-THERMOSTAT, CW Price: $96.15
32 532173436 PULLEY MANDREL This part replaces 532153535. Price: $14.99
33 125-6979 GASKET Price: $2.55
33 596134801 Nuts This part replaces 532400234. Price: $1.00
34 125-7176 WASHER-SEAL Price: $7.31
34 596136101 GSPW Bolts This part replaces 872110612. Price: $2.99
35 127-3017 JOINT Price: $71.31
36 127-3072 WATER IN PIPE ASM Price: $51.67
36 532196106 PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99
38 127-3020 CLIP-HOSE Price: $2.92
40 127-3115 WATER OUT PIPE ASM Price: $21.26
40 532409149 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99
41 127-3020 CLIP-HOSE Price: $2.92
43 127-3116 WATER OUT PIPE ASM Price: $47.67
44 127-3020 CLIP-HOSE Price: $2.92
47 127-3117 PIPE-OUT, CW Price: Call Us
55 531171201 SERVICE KIT IDLER.ARM.42" This part replaces 532437110. Price: $5.99
56 532199092 SPACER.RETAINER Price: $5.99
57 817000616 SCREW 3/8-16X1 Price: $5.99
59 531165901 SERVICE KIT GUARD This part replaces 532141043. Price: $4.99
62 596136301 Bolts This part replaces 872110616. Price: $2.99
68 532144959 BELT V SECONDARY Price: $37.99
69 596136401 Bolts This part replaces 872140505. Price: $2.99
116 596434402 Bolts This part replaces 532124842. Price: $3.99
117 589527401 WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99
118 532409149 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99
119 596134901 GSPH This part replaces 819121414. Price: $2.99
145 532177968 PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99
188 593824001 STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99
189 596135701 GSPW Nuts This part replaces 873900500. Price: $2.99
190 532197251 SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99
241 532152927 SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99
242 532415598 PORT.WASHOUT Price: $6.99
