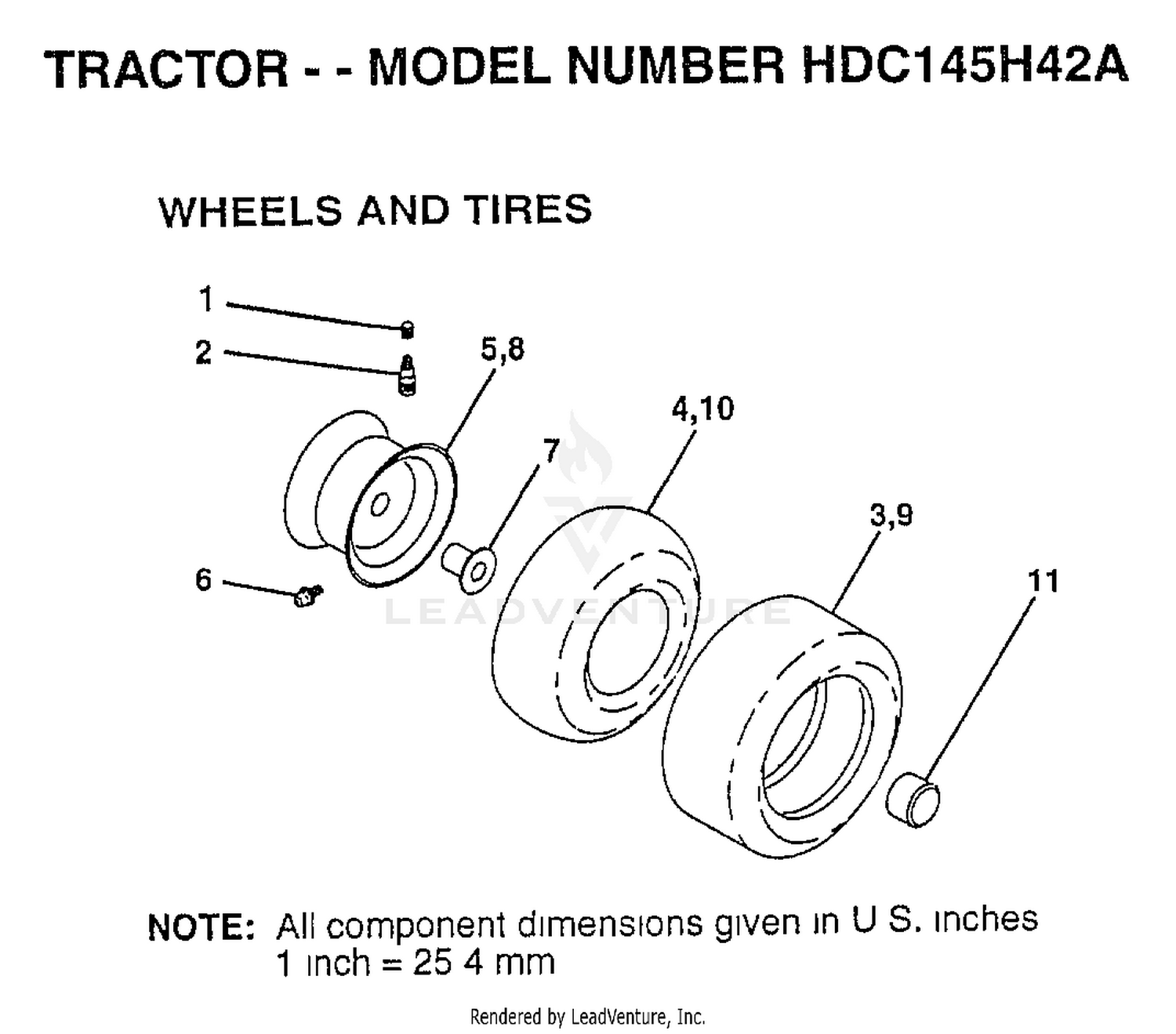

| Ref | Part Number | Description |
|---|
| 1 |
283-61 |
PIN-YOKE Price: $1.56 |
| 1 |
59192 |
VALVE CAP Price: Call Us |
| 2 |
282-2 |
YOKE Price: $30.04 |
| 2 |
65139 |
VALVE STEM LT Price: Call Us |
| 3 |
106222X |
SUB= 122073X Price: Call Us |
| 3 |
3220-2 |
NUT-JAM Price: $0.50 |
| 4 |
323-12 |
SCREW-HH Price: $1.14 |
| 4 |
59904 |
TUBE.5.3/4.5/6 Price: Call Us |
| 5 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 6 |
100-9819 |
LATCH ASM Price: $127.30 |
| 6 |
278H |
FITTING LT Price: Call Us |
| 7 |
100-9821 |
PLATE-SWITCH, REED Price: $20.58 |
| 8 |
93-8062 |
DECAL-BRAKE, PARKING Price: $4.95 |
| 9 |
105-0463-01 |
PLATE-FOOTREST Price: $174.49 |
| 9 |
106268X |
SUB= 122074X Price: Call Us |
| 10 |
7152J |
TUBE.18X9.5-8 Price: Call Us |
| 11 |
104757X |
HUB CAP Price: Call Us |
| 11 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 12 |
32141-111 |
NUT-ADJUSTING Price: $6.09 |
| 13 |
95-1629 |
HINGE-LOWER Price: $10.72 |
| 14 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 15 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 16 |
3274-31 |
SCREW-HSBH Price: $0.89 |
| 17 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 18 |
321-4 |
SCREW-HH Price: $0.99 |
| 19 |
83-0200-01 |
PLATE-COVER, LH Price: $46.92 |
| 20 |
32128-33 |
NUT-HF Price: $0.25 |
| 21 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 24 |
27-2270 |
ROD-ADJUSTMENT, BRAKE Price: $32.18 |
| 25 |
10-8100-01 |
STRAP-SHAFT, BRAKE Price: $34.17 |
| 26 |
32121-35 |
PIN-ROLL Price: $0.79 |
| 27 |
88-9640-01 |
BRACKET-LIFT PIVOT, LH Price: $42.90 |
| 28 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 29 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 30 |
83-0160 |
SHAFT-BRAKE Price: $111.83 |
| 32 |
93-7629 |
PAD-FOOT, BRAKE Price: $25.13 |
| 33 |
105-0440-01 |
BRACKET-BRAKE, RH Price: $46.19 |
| 34 |
10-8140 |
SPRING-LATCH, BRAKE Price: $18.38 |
| 35 |
321-3 |
SCREW-HH Price: $0.28 |
| 36 |
104-2057 |
SENSOR Price: $136.35 |
| 37 |
33113-016 |
SCREW-HH This part replaces 48-7620. Price: $0.34 |
| 38 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 39 |
33023-00 |
NUT-LOCK This part replaces 49-7810. Price: $0.25 |
