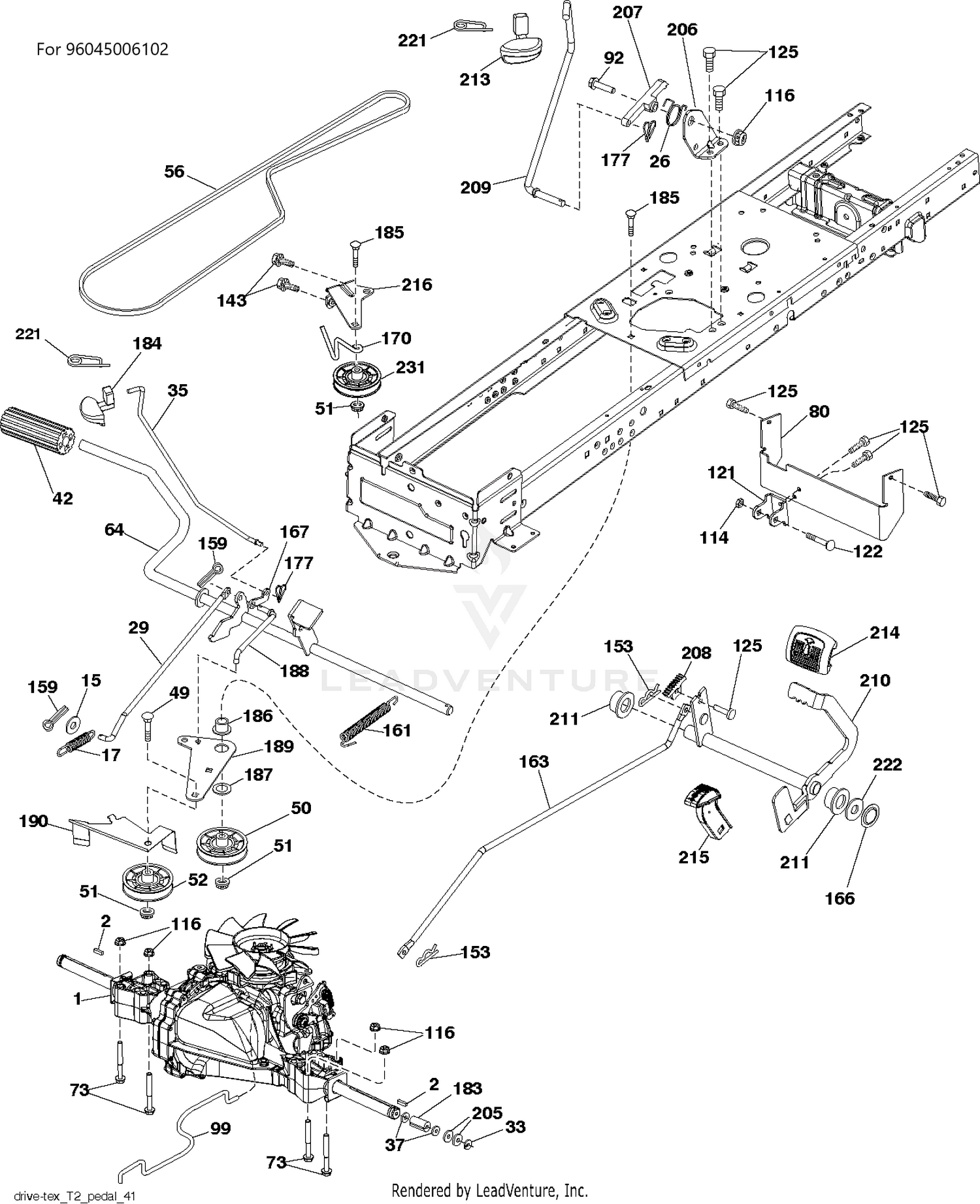

| Ref | Part Number | Description |
|---|
| 1 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
104-7520 |
SPRING-DAMPER Price: $49.77 |
| 4 |
104-7521 |
BUSHING Price: $3.43 |
| 5 |
105-2808 |
END-ROD Price: $88.58 |
| 6 |
3220-5 |
NUT-JAM Price: $0.65 |
| 7 |
105-2809 |
TUBE-LINK Price: $77.02 |
| 8 |
114-2717 |
CRANK-BELL, LH Price: $170.50 |
| 9 |
114-2716 |
CRANK-BELL, RH Price: $170.50 |
| 10 |
325-9 |
SCREW-HH Price: $1.87 |
| 11 |
322-10 |
SCREW-HH Price: $0.70 |
| 12 |
104-8331 |
END-ROD, SPHERICAL Price: $46.75 |
| 13 |
105-3249 |
DAMPER Price: $176.72 |
| 14 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 15 |
3290-360 |
SCREW-HH Price: $4.34 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 16 |
105-4552 |
BEARING-PLASTIC Price: $25.10 |
| 17 |
100-8138 |
SPRING-COMPRESSION Price: $48.65 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 18 |
105-4551 |
WASHER-FLAT Price: $3.35 |
| 19 |
105-4548 |
SHAFT-SPRING Price: $211.58 |
| 20 |
105-4550 |
BUSHING-STRAIGHT Price: $8.87 |
| 21 |
145-8390 |
PLATE This part replaces 105-2807-03. Price: $13.74 |
| 22 |
3220-7 |
NUT-JAM Price: $4.09 |
| 23 |
105-2806 |
END-ROD Price: $98.92 |
| 24 |
105-0756 |
SPACER Price: $21.53 |
| 25 |
323-7 |
SCREW-HH Price: $0.65 |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 28 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 29 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 29 |
581506401 |
ROD.BRAKE.T2.TEX Price: $9.99 |
| 30 |
140-6478 |
LH REAR ARM ASM This part replaces 120-8884. Price: $428.39 |
| 31 |
140-6480 |
RH REAR ARM ASM This part replaces 120-8883. Price: $540.59 |
| 32 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 33 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
327-23 |
SCREW-HH Price: $3.60 |
| 35 |
120-8856-03 |
BRACKET-ROLLER, LH Price: $57.85 |
| 35 |
590605902 |
ROD ROD.PARKINGBRAKE.GT.HUSQ/P Price: $7.99 |
| 36 |
120-8874-03 |
BRACKET-ROLLER, RH Price: $54.83 |
| 37 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 38 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 39 |
3256-61 |
WASHER-FLAT Price: $1.79 |
| 40 |
86-5350 |
BUMPER-RUBBER Price: $46.29 |
| 41 |
119-8308 |
PLATE This part replaces 119-8308-03. Price: $25.33 |
| 42 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532008883. Price: $4.99 |
| 43 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 49 |
596136201 |
Bolts Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
581270501 |
BELT.GROUND.DRIVE.T2-HP.CE Price: $29.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts Price: $3.99 |
| 80 |
581550701 |
STRAP.TORQUE.T2 Price: $22.99 |
| 92 |
595305701 |
Screws Price: $3.99 |
| 99 |
532408418 |
ROD.ASM.BYPASS.SPRING.T2.FS Price: $7.99 |
| 114 |
596583702 |
Nuts Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws Price: $2.99 |
| 153 |
532004497 |
RETAINER M Price: $4.99 |
| 159 |
596029501 |
Pins Price: $2.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
594007201 |
Rods Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 177 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 183 |
532156972 |
SPACER, AXLE PVST Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch Price: $5.99 |
| 208 |
596564101 |
Gears Price: $4.99 |
| 209 |
590527802 |
ROD ROD.CRUISECONTROL.GT.HUSQ/ Price: $6.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
586606502 |
PEDAL.COVER.REVERSE.CRD.X428BK Price: $17.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
