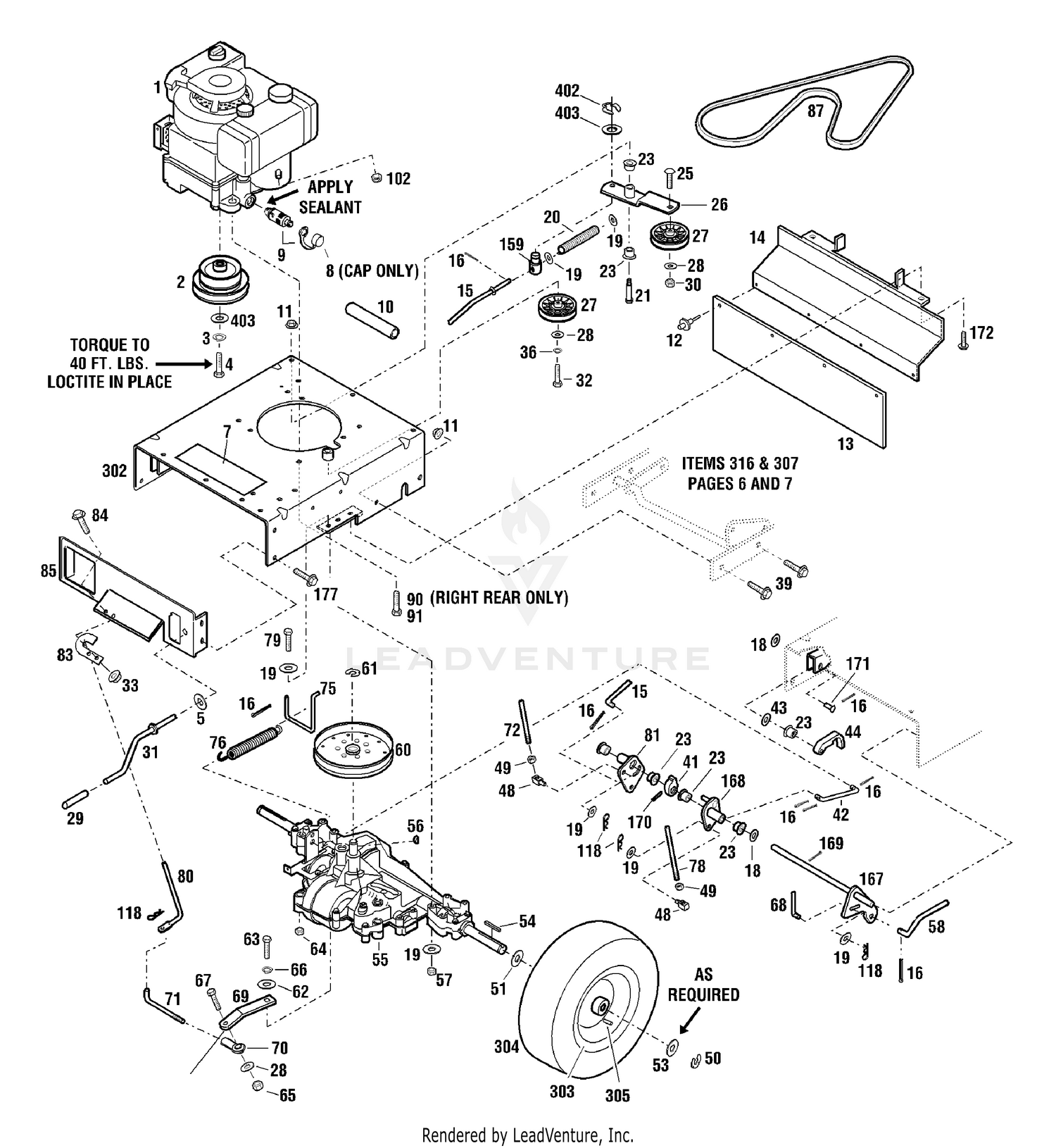

| Ref | Part Number | Description |
|---|
| 2 |
1769904 |
ENGINE PULLEY Not Available Price: |
| 3 |
736-0171 |
Lock Washer, 7/16 Price: $3.86 |
| 4 |
710-04092 |
Pin Dowel 7×14 This part replaces 1740949. Price: $3.70 |
| 5 |
736-04070 |
NYLONWASHER .455 ID x 1.0 OD Not Available This part replaces 1773599. Price: |
| 7 |
777S00006 |
LABEL-WARNING REAR Not Available Price: |
| 8 |
1766326 |
OIL DRAIN CAP Not Available Price: |
| 10 |
751-3141-14 |
Oil Drain, Extension Hose This part replaces 1769006. Price: $10.40 |
| 11 |
1186393 |
Flange Locknut, 3/8-16 Price: $2.63 |
| 12 |
1727379 |
POP RIVET 3/16X5/8 Not Available Price: |
| 13 |
1769870 |
FLAP Not Available Price: |
| 14 |
1769869001 |
BRACKET-FLAP Not Available This part replaces 1769869. Price: |
| 15 |
1769885 |
ROD-LOWER TRANSMIS Not Available Price: |
| 16 |
714-0111 |
Cotter Pin This part replaces 1185147. Price: $4.20 |
| 18 |
GW-20546 |
WASHER Not Available This part replaces 1890234. Price: |
| 19 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 20 |
1711864 |
SPRING Not Available Price: |
| 21 |
1763219 |
Shoulder Bolt Price: $8.93 |
| 23 |
1715538 |
BUSHING-NYLINER .5X.5 Not Available Price: |
| 25 |
1748393 |
SCREW-CARR Not Available Price: |
| 26 |
687-02011-0637 |
ASSM-IDLER ARM ZP This part replaces 1918370. Price: $44.38 |
| 27 |
1756151 |
BACKSIDE PULLEY IDLER Not Available Price: |
| 28 |
736-3050 |
Flat Washer, 3/8 Price: $3.90 |
| 29 |
720-0269 |
Clutch Grip This part replaces 1715685. Price: $4.24 |
| 30 |
712-3000 |
Top Locknut, 3/8-16 Price: $3.90 |
| 31 |
1915831 |
Lift Crank Assembly Price: $23.33 |
| 32 |
710-0347 |
Bolt, 3/8-16 x 1-3/4 Price: $4.39 |
| 33 |
1186389 |
Flange Locknut, 1/4-20 Price: $3.05 |
| 36 |
736-0169 |
Lock Washer, 3/8 Price: $3.33 |
| 39 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 41 |
1769881 |
Interlock Cam Price: $7.36 |
| 42 |
1769877 |
ROD-LOWER BRAKE Not Available Price: |
| 43 |
1702646 |
FLAT WASHER 1.0X.516X.031 Not Available Price: |
| 44 |
1770361 |
LATCH-INTERLOCK Not Available Price: |
| 48 |
1725264 |
BLOCK-SWIVEL Not Available Price: |
| 49 |
712-3007 |
Jam Nut, 5/16-18 This part replaces 1186258. Price: $6.06 |
| 50 |
716-0231 |
E-ring..75 This part replaces 1185388. Price: $3.50 |
| 51 |
736-0188 |
Washer-Fl-.760Id X This part replaces 1708012. Price: $3.75 |
| 53 |
1701447 |
Special Washer Price: $3.93 |
| 54 |
714-0168 |
SQUARE KEY 3/16X2.25 Not Available This part replaces 1769781. Price: |
| 56 |
914-0868 |
KEY-WOODRUFF .188X.75 This part replaces 1104436. Price: $3.50 |
| 57 |
1732499 |
Top Locknut, 5/16-18 Price: $3.49 |
| 58 |
1770247 |
LOWER BLADE ROD Not Available Price: |
| 60 |
1770326 |
TRANSMISSION AXLE PULLEY Not Available Price: |
| 61 |
1118808 |
RETAINING RING Not Available Price: |
| 62 |
736-0463 |
Flat Washer, 1/4 Price: $3.91 |
| 63 |
710-0412 |
Screw, 1/4-28 x 3/4 This part replaces 1100002. Price: $4.95 |
| 64 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 65 |
712-3000 |
Locknut, 3/8-16 Price: $3.90 |
| 66 |
936-0329 |
Lock Washer This part replaces 736-0329. Price: $3.90 |
| 67 |
712-3005 |
Screw, 3/8 x 1-1/4 Price: $5.99 |
| 68 |
1769888 |
ROD-UPPER BLADE Not Available Price: |
| 69 |
1768140 |
ARM-TRANSMISSION Not Available Price: |
| 70 |
1767837 |
BALL JOINT Not Available Price: |
| 71 |
1768628 |
Shift Link Rod Price: $9.16 |
| 72 |
1769873 |
ROD-UPR TR Not Available Price: |
| 75 |
1768624 |
ROD-SPRING-ATTACHM Not Available Price: |
| 76 |
1768636 |
EXTENSION SPRING Not Available Price: |
| 78 |
1769872 |
ROD-UPPER BRAKE Not Available Price: |
| 79 |
710-0176 |
Hex Bolt 5/16-18 x 2.75 This part replaces 1111609. Price: $3.89 |
| 80 |
1769874 |
SHIFT ROD Not Available Price: |
| 81 |
1769875 |
Clutch Arm Pivot Price: Call Us |
| 83 |
1768630001 |
BRACKET SHIFT ROD Not Available This part replaces 1768630. Price: |
| 84 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces 1186308. Price: $3.86 |
| 87 |
1770334 |
V-Belt Price: $42.95 |
| 90 |
710-1007 |
TT Sems Screw 3/8-16 x 1.5 This part replaces 1768194. Price: $5.71 |
| 91 |
1762042 |
SCREW-HH Not Available Price: |
| 102 |
1186229 |
Hex Nut, 1/4-20 Price: $4.05 |
| 118 |
1717897 |
PIN-CLIP Not Available Price: |
| 159 |
1916897 |
PIVOT-REVERSE ROD Not Available Price: |
| 167 |
1769882 |
ASSM-PIVOT Not Available Price: |
| 168 |
1769878 |
ASSM-BRAKE ARM ZP Not Available Price: |
| 169 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 1100350. Price: $3.48 |
| 170 |
915-0249 |
Roll Pin This part replaces 1187961. Price: $5.94 |
| 171 |
1730851 |
CLEVIS PIN .5X1.25 Not Available Price: |
| 172 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 1724491. Price: $3.34 |
| 177 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 1740496. Price: $3.34 |
| 302 |
687-02014-0638 |
FRAME ASSEMBLY (MTD RED) Not Available This part replaces 1915752. Price: |
| 303 |
1768180 |
WHEEL Not Available Price: |
| 304 |
734-04237 |
TIRE 4.80 x 8 This part replaces 1774129. Price: $108.00 |
| 305 |
934-0255 |
TUBELESS VALVE This part replaces 1718086. Price: $3.83 |
| 402 |
GW-9532 |
Clip Ring Price: $3.22 |
| 403 |
GW-20546 |
WASHER Not Available Price: |
