Home / OPE / G0061103 / POWER UNIT

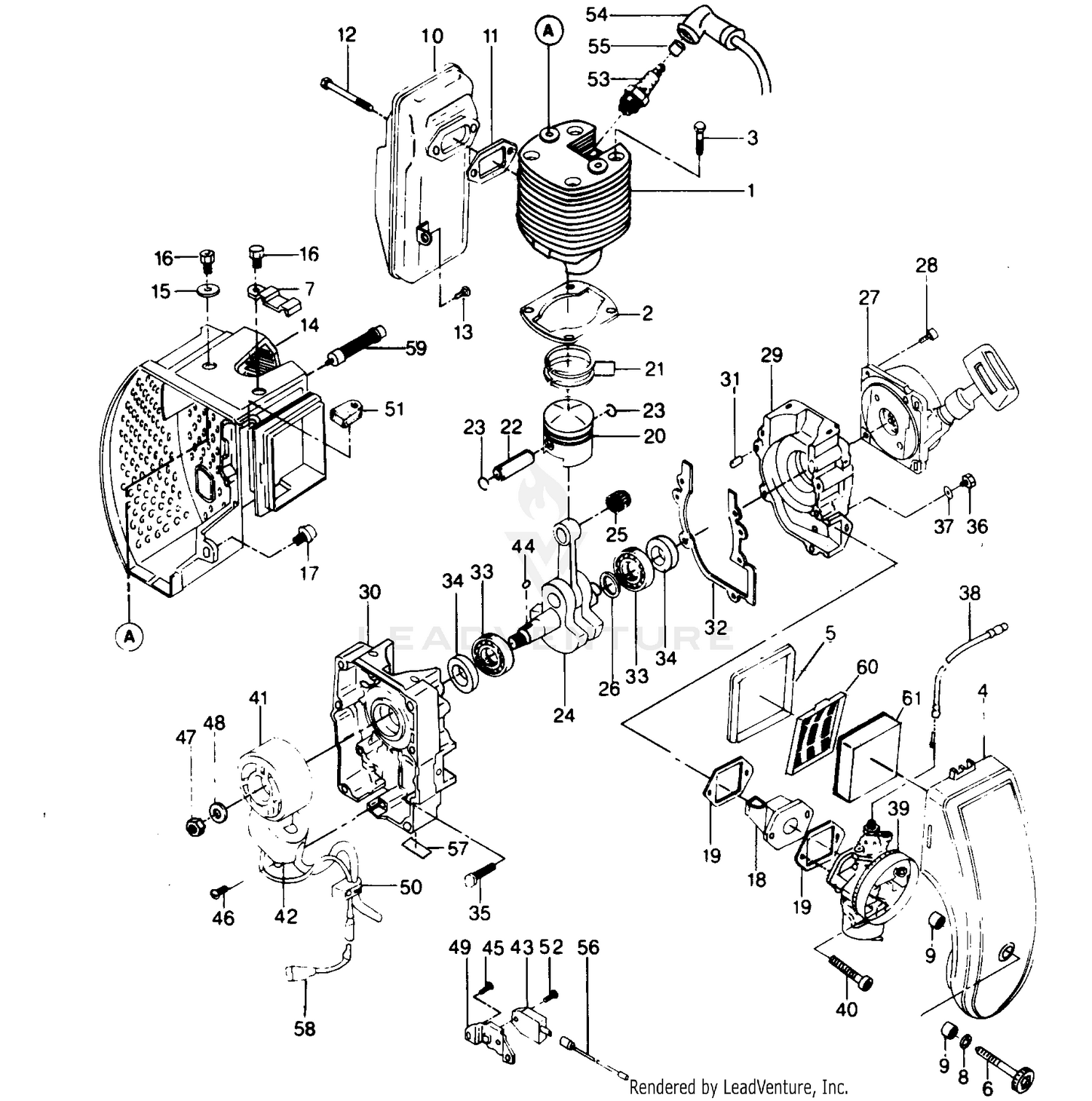

POWER UNIT

POWER UNIT

Parts (58)

RefPart NumberDescription
1 530094304 Cylinder Price: $3.33
1 SGH08454 HEAD-TINE, ADAPTER Price: $267.45
2 530094305 Gasket Price: $3.33
2 SG715754 SHANK-ADAPTER Price: $15.40
3 530094306 Bolt Price: $3.33
4 530094307 Air Cleaner Ass'y. Price: $3.33
5 530094308 Gasket Price: $3.33
6 530094309 Bolt Price: $3.33
7 530094310 Holder Price: $3.33
8 530094311 O - Ring Price: $1.99
9 530094312 Tube Price: $3.33
10 530094313 Muffler Ass'y. Price: $3.33
11 530094314 Gasket Price: $3.33
12 530094315 Bolt Price: $3.33
13 530094316 Screw (6 x 14mm) Price: $3.33
14 530094317 Cover - Cylinder Price: $3.33
15 530094318 Washer Price: $3.33
16 530094319 Bolt Price: $3.33
17 530094320 Screw Price: $3.33
18 530094321 Reed Valve Ass'y. Price: $3.33
19 530094322 Gasket Price: $3.33
20 530094323 Piston Price: $3.33
21 530094324 Piston Ring Set Price: $3.33
22 530094325 Pin - Piston Price: $3.33
23 530094326 Ring - Snap Price: $3.33
24 530094327 Crank Shaft Ass'y. Price: $3.33
25 530094328 Bearing - Needle Price: $3.33
27 530094330 Recoil Starter Ass'y. Price: $3.33
28 530094331 Screw (4 x 16mm) Price: $3.33
29 530094332 Crankcase Price: $3.33
30 530094333 Crankcase Price: $3.33
31 530094334 Pin - Dowel Price: $3.33
32 530094335 Gasket Price: $3.33
33 530094336 Bearing - Ball Price: $3.33
34 530094337 Seal - Oil Price: $3.33
35 530094338 Screw (6 x 30mm) Price: $3.33
36 530094339 Bolt (6 x 8mm) Price: $3.33
37 530094340 Gasket Price: $3.33
38 530094341 Cable Price: $3.33
39 530094342 Carburetor Ass'y. Price: $3.33
40 530094343 Screw (6 x 45mm) Price: $3.33
41 530094344 Flywheel Price: $3.33
42 530094345 Coil - Ignition Price: $3.33
43 530094346 Igniter Price: $3.33
44 530094347 Key Price: $3.33
45 530094348 Screw (5 x 8mm) Price: $3.33
46 530094349 Screw (5 x 20mm) Price: $3.33
47 530094350 Nut (10mm) Price: $3.33
48 530094351 Washer Price: $3.33
49 530094352 Bracket Price: $3.33
50 530094353 Grommet Price: $3.33
51 530094354 Grommet Price: $3.33
52 530094355 Screw (4 x 6mm) Price: $3.33
54 530094357 Boot - Spark Plug Price: $3.33
55 530094358 Connector Price: $3.33
56 530094359 Wire - Lead Price: $3.33
59 530094428 Spark Arrestor Ignition Price: $3.33
60 530094471 Air Filter Price: $14.99
