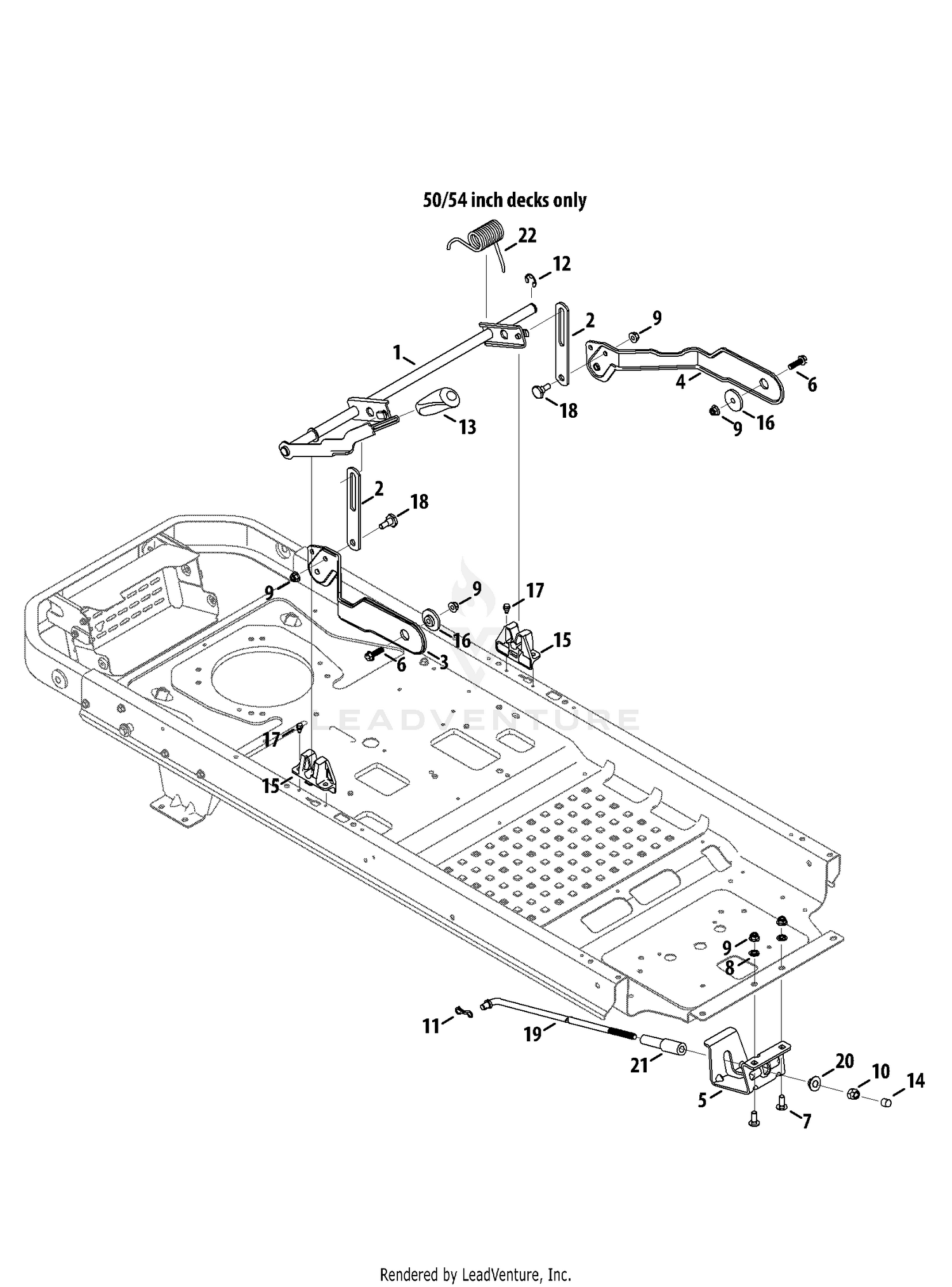

| Ref | Part Number | Description |
|---|
| 1 |
753-08218 |
DECK SHAFT KIT LIF This part replaces 603-04983A. Price: $98.75 |
| 2 |
703-08591A-0637 |
Lift Link Plate Price: $17.68 |
| 3 |
603-05107B-0637 |
DECK LIFT PLATE ASSEMBLY (RH) (POWDER BLACK) This part replaces 703-08592-0637. Price: $83.99 |
| 4 |
603-05108B |
DECK LIFT PLATE ASSEMBLY (LH) This part replaces 703-08593-0637. Price: $67.97 |
| 5 |
703-08644A-0637 |
FRONT LIFT ROD MOUNTING BRACKET (POWDER BLACK) This part replaces 703-08644-0637. Price: $16.10 |
| 6 |
710-1315 |
Hex Washer Screw, 3/8-16 x 1.250 Price: $3.90 |
| 7 |
710-3168 |
Carriage Bolt, 3/8-16 x 1.00 Price: $3.61 |
| 8 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 9 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 10 |
712-04243 |
Flange Lock Nut, 1/2-13 Price: $3.52 |
| 11 |
714-04043 |
Bow-Tie Cotter Pin Price: $4.24 |
| 12 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 13 |
720-04139B |
Grip, .50 ID Price: $16.45 |
| 14 |
726-05009 |
End Cap Price: $3.70 |
| 15 |
731-08782 |
DECK LIFT BRACKET Price: $7.71 |
| 16 |
738-04162C |
Shoulder Spacer, .884 x .190 Price: $12.76 |
| 17 |
738-04278 |
Shoulder Screw, .500 x 1/4-20 Price: $5.99 |
| 18 |
738-0507B |
Shoulder Screw, .5D x .434 This part replaces 938-0507B. Price: $3.86 |
| 19 |
747-05552C |
DECK FRONT LIFT ROD This part replaces 747-05552A. Price: $28.06 |
| 20 |
748-04069A |
DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93 |
| 21 |
750-05658 |
Nylon Sleeve, .55 ID x 4.50 LG Price: $5.72 |
