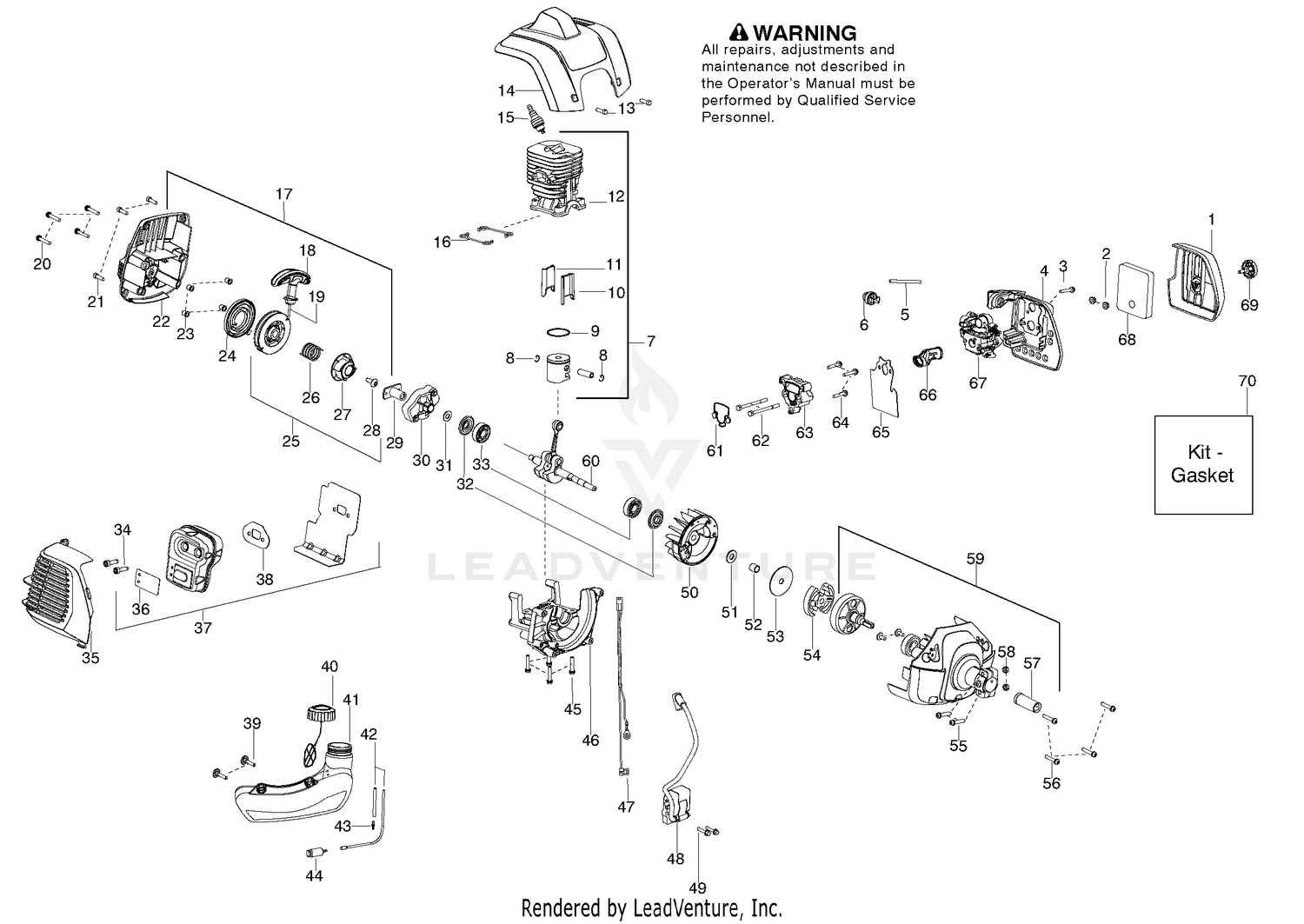

| Ref | Part Number | Description |
|---|
| 1 |
545177001 |
Cover-Airbox Price: $1.99 |
| 2 |
530016101 |
Nut-Carb. Screw Price: $1.99 |
| 3 |
530016301 |
Screw 8-32 Price: $1.99 |
| 4 |
545176901 |
Base-Airbox Price: $2.99 |
| 6 |
530047721 |
Purge Bulb Price: $3.99 |
| 8 |
545194801 |
Retainer-Piston pin Price: $1.99 |
| 9 |
545194601 |
Ring-Piston Price: $2.99 |
| 10 |
545194901 |
Insert-Front Transfer Port Price: $1.99 |
| 11 |
545195001 |
Insert-Rear Transfer Port Price: $1.99 |
| 12 |
545181801 |
Cylinder-Machined Price: $12.99 |
| 13 |
530016449 |
Screw M4 x1.75 x 16mm Price: $1.49 |
| 14 |
545156401 |
Cover-Top Price: $5.99 |
| 15 |
952030249 |
Spark Plug (RCJ- 6Y) Price: Call Us |
| 16 |
545008044 |
Seal-Cylinder(Kit) Price: $6.99 |
| 17 |
545190701 |
Assy-Shroud Rear Price: $14.99 |
| 19 |
545029901 |
Kit-Rope Price: $9.99 |
| 20 |
530015897 |
Screw M4 x .8 x 25mm Price: $1.99 |
| 21 |
530016449 |
Screw M4 x 1.75 x 16mm Price: $1.49 |
| 22 |
545190601 |
Housing-Starter w/eyelet Price: $7.99 |
| 23 |
545185301 |
Spacer Price: $1.99 |
| 24 |
545008013 |
Kit-Starter Spring Price: $3.49 |
| 26 |
545188301 |
Spring-Starter Hub Price: $2.99 |
| 27 |
545188001 |
Hub-Starter Price: $2.99 |
| 28 |
545112801 |
Screw M6 Price: $1.99 |
| 29 |
545188201 |
Coupling-Starter Price: $1.99 |
| 30 |
545188701 |
Assy-Starter Cup Price: $3.99 |
| 31 |
530015828 |
Washer-Flat Price: $1.99 |
| 32 |
545008044 |
Seal-Crankshaft (kit) Price: $6.99 |
| 33 |
545013401 |
Bearing-Crankshaft Price: $6.99 |
| 34 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 35 |
545156301 |
Guard-Muffler Price: $2.99 |
| 36 |
545224001 |
SPARK ARRESTER This part replaces 545008070. Price: $2.99 |
| 38 |
545008044 |
Gasket-Muffler (kit) Price: $6.99 |
| 39 |
530016445 |
Screw-Tank Retainer Price: $1.99 |
| 40 |
530057973 |
Assy-Fuel Cap This part replaces 545215901. Price: $7.99 |
| 43 |
530023877 |
Fitting-Fuel Line Price: $1.99 |
| 44 |
530095646 |
Assy-Fuel Pickup Price: $2.69 |
| 45 |
530015897 |
Screw-m5x25mm Price: $1.99 |
| 46 |
545181901 |
Crankcase Price: $12.99 |
| 47 |
545191601 |
Assy-Leadwire Price: $3.99 |
| 48 |
545189701 |
Module-Ignition Price: $22.99 |
| 49 |
530016357 |
Screw 8-32 Price: $1.99 |
| 50 |
545120401 |
Assy-Flywheel Price: $9.99 |
| 51 |
530016463 |
Washer Price: $1.99 |
| 52 |
530057852 |
Spacer-Flywheel Price: $2.99 |
| 53 |
530094189 |
Washer-Clutch Price: $2.99 |
| 54 |
530055122 |
Assy-Clutch This part replaces 545008038. Price: $8.99 |
| 55 |
530015774 |
Screw 10-24 x 1" Price: $1.99 |
| 56 |
530015897 |
Screw M5 x 25mm Price: $1.99 |
| 57 |
545186401 |
Guide-Clutch Drum Price: $2.99 |
| 58 |
530015768 |
Locknut 10-24 Price: $1.99 |
| 60 |
545194001 |
CRANKSHAFT This part replaces 545008047. Price: $33.99 |
| 61 |
545008044 |
Seal-Cyl./Adapter (kit) Price: $6.99 |
| 62 |
530016418 |
Bolt M5 x .80 Price: $1.99 |
| 63 |
575391501 |
ADAPTER, CARBURETOR This part replaces 545194501. Price: $6.99 |
| 64 |
530016441 |
Screw .20 x 32 Price: $1.99 |
| 65 |
545008044 |
Gasket-Carb./Adapter(kit) Price: $6.99 |
| 66 |
545190501 |
Boot-Carb. Price: $1.99 |
| 67 |
545189502 |
CARBURETOR This part replaces 545008042. Price: $39.99 |
| 68 |
545195901 |
Filter-Air Price: $1.99 |
| 69 |
545188801 |
Assy-Airbox Knob Price: $1.99 |
