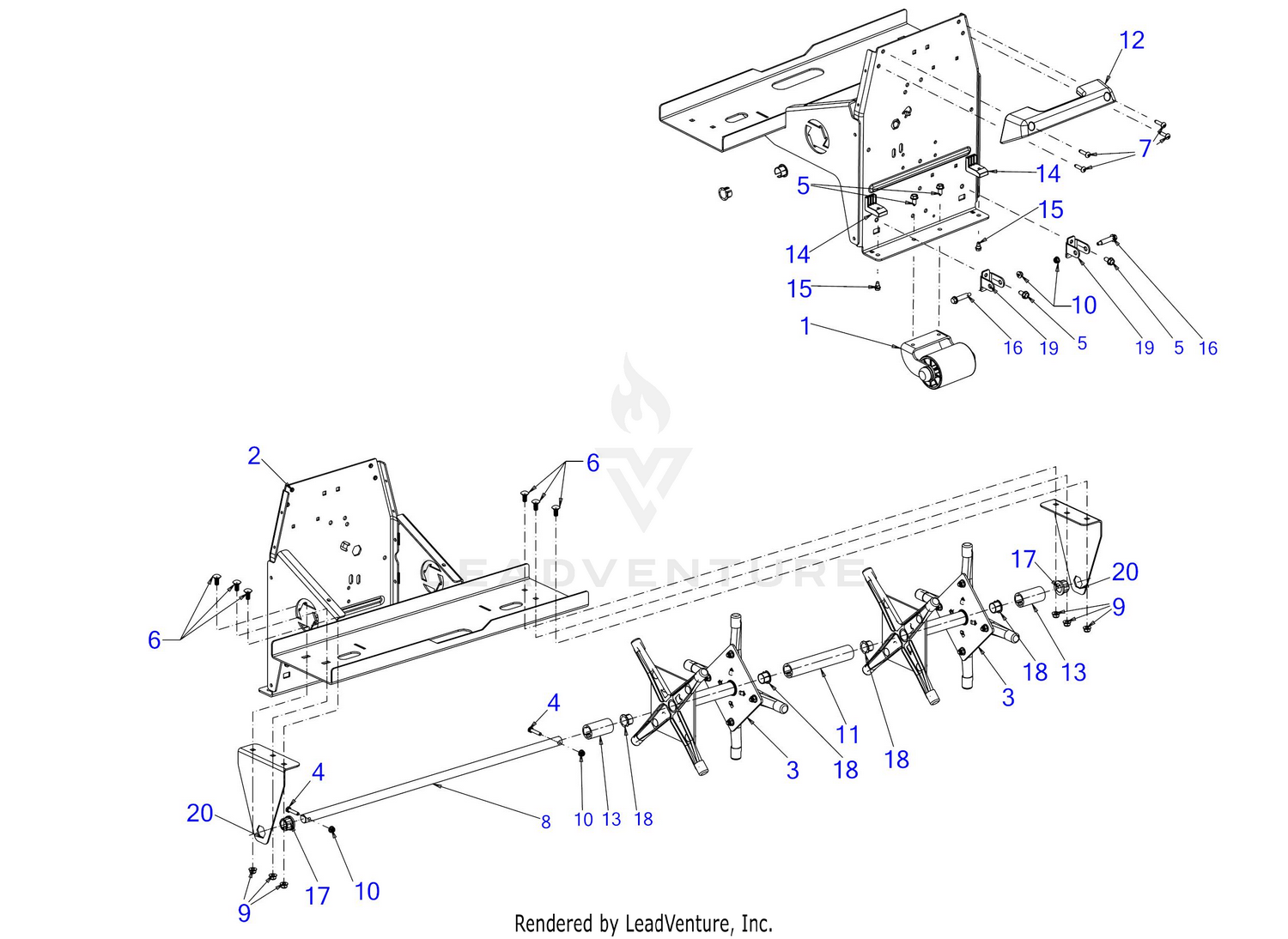

| Ref | Part Number | Description |
|---|
| 2 |
687-05185-0638 |
AERATOR FRAME ASSEMBLY Price: $152.89 |
| 4 |
710-0106 |
HEX SCREW 1/4-20 x 1.25 Price: $3.66 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 7 |
710-05074 |
SCREW 1/4-20 x 1.0 Price: $2.90 |
| 8 |
711-06594 |
CORE AERATOR AXLE Price: $53.92 |
| 9 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 10 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 11 |
731-09486 |
SPACER Price: $8.34 |
| 12 |
731-10490 |
HANDLE Price: $34.32 |
| 13 |
731-11883 |
SPACER - .75 x 1.25 x 2.4 Price: $2.94 |
| 14 |
735-05069 |
BUMPER PAD Price: $5.14 |
| 15 |
738-04502 |
SHOULDER SCREW 1/4-20 x .50 Price: $3.75 |
| 16 |
738-1226 |
Shoulder Screw This part replaces 938-1226. Price: $6.73 |
| 17 |
941-0245 |
FLANGE BEARING Price: $9.07 |
| 18 |
741-0493C |
FLANGE BUSHING Price: $3.86 |
| 19 |
787-03195-0637 |
SUPPORT BRACKET Price: $10.29 |
