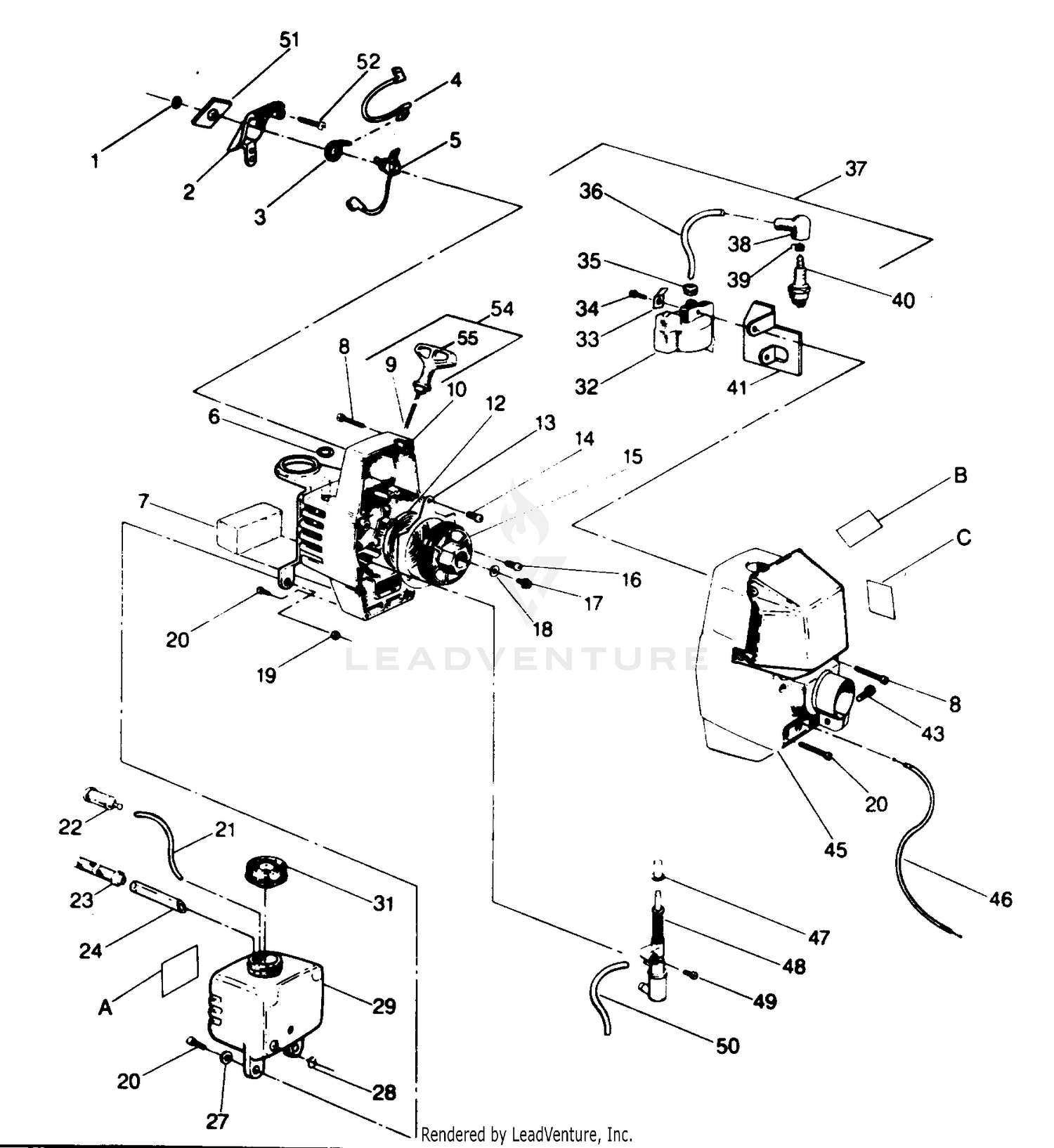

| Ref | Part Number | Description |
|---|
| A |
530027049 |
Type 1 & 2 Price: $3.33 |
| A |
530027150 |
Type 3 Price: $3.33 |
| B |
530027072 |
Type 1 Price: $3.33 |
| B |
530027263 |
Type 2 Price: $3.33 |
| B |
530027382 |
Type 3 Price: Call Us |
| 1 |
115-8293-0P |
TUBE-SHORT This part replaces 115-8293-03. Price: $224.35 |
| 1 |
530002582 |
Switch- Plate and Nut This part replaces 530023575. Price: $6.69 |
| 2 |
114-5410 |
SHAFT-SHORT, REAR ROLLER Price: $128.74 |
| 2 |
530026997 |
Housing - Switch Price: $1.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
530024569 |
Washer - Grounding Switch Price: Call Us |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
530039122 |
Wire - Lead - Grounding Switch Price: $2.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
530069182 |
Kit - Grounding Switch (incl. #34) Price: $5.48 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
530026118 |
Bearing - Nyliner (Fan Housing) Price: $0.08 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
530024371 |
Air Filter Price: $2.99 |
| 8 |
530015376 |
Screw - #10 - 24 x 1-1/2" Fil. Hd. - Fan Housing Top Price: $3.33 |
| 9 |
530069231 |
Rope Kit Price: $3.33 |
| 10 |
530069236 |
Fan Housing Ass'y Price: $3.33 |
| 12 |
545008009 |
KIT STARTER SPRING This part replaces 530042067. Price: $5.99 |
| 13 |
530026035 |
Air Baffle Price: $2.99 |
| 14 |
530015373 |
Screw - 10 - 24 x 1/4 Pan. Hd. - Air Baffle Price: $0.04 |
| 15 |
530026048 |
Starter Pulley Price: $9.99 |
| 16 |
530015596 |
Screw - #10 - 24 x 7/16" - Air Baffle Price: $0.08 |
| 17 |
530016141 |
Screw This part replaces 530015036. Price: $1.99 |
| 18 |
530015123 |
Washer - #10 - Starter Pulley Screw Price: $1.99 |
| 19 |
530001543 |
Nut - #10 - 24 - Fuel Tank Bracket Price: Call Us |
| 20 |
530015168 |
Screw - #10 - 24 x 5/8" Fil. Hd. Housing Bottom Price: $1.46 |
| 21 |
530069247 |
Line Kit Price: $3.99 |
| 22 |
530026931 |
Previous Style Price: $3.33 |
| 22 |
530095646 |
Assy-Fuel Pickup This part replaces 530010897. Price: $2.99 |
| 23 |
530026109 |
Filter - Fuel (Inlet Line) Price: $8.80 |
| 24 |
530021052 |
Line - Fuel Inlet Price: $1.99 |
| 27 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 28 |
530026178 |
Clip - Retainer - Inlet Line - Fuel Tank Price: $1.99 |
| 29 |
530010761 |
Fuel Tank Ass'y (Incl. #21-24 & 31) Price: $24.64 |
| 31 |
530014347 |
Assy-Fuel Cap This part replaces 530010729. Price: $4.99 |
| 32 |
530069181 |
Kit Ignition Module Price: $3.33 |
| 33 |
530025995 |
Electrical Tab Price: $0.99 |
| 34 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 35 |
530024435 |
Grommet - Plug Wire Price: $1.99 |
| 36 |
530039082 |
High Tension Lead Wire Price: Call Us |
| 37 |
502039103 |
High Tension - Lead Assembly (Incl. #17, 18 & 19) Price: $219.99 |
| 38 |
530003934 |
Boot - Spark Plug Price: Call Us |
| 39 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 40 |
530030077 |
Spark Plug (CJ-14) Price: $2.27 |
| 41 |
530026658 |
Deflector - Air Price: $3.33 |
| 43 |
530093802 |
BOLT Price: $3.13 |
| 45 |
530010763 |
Ass'y - Shroud/Heat Shield Price: $3.33 |
| 46 |
530093959 |
Throttle Cable Price: $4.99 |
| 47 |
530026032 |
Injector Button Price: $0.99 |
| 48 |
530010738 |
Pump Assembly (incl. #50) Price: $34.99 |
| 49 |
530015305 |
Screw - #10 - 14 x 1-3/16" - Air Baffle-Pump Mounting Price: $1.99 |
| 50 |
530021053 |
Line-Pump to Accumulator Price: $3.33 |
| 51 |
530026741 |
Plate - Indicating Switch Price: $1.99 |
| 52 |
530015598 |
Screw - #10 - 17 x 3/8" - Switch Plate Price: $1.99 |
| 54 |
530026792 |
Ass'y - Rope & Handle Price: $3.33 |
| 55 |
530027569 |
Handle-Starter This part replaces 530026735. Price: $1.99 |
| 506093802 |
HAND |
GUARD Price: $24.99 506093802 |
| 530039103 |
HIGH |
TENSION LEAD NLA Price: Call Us 530039103 |
