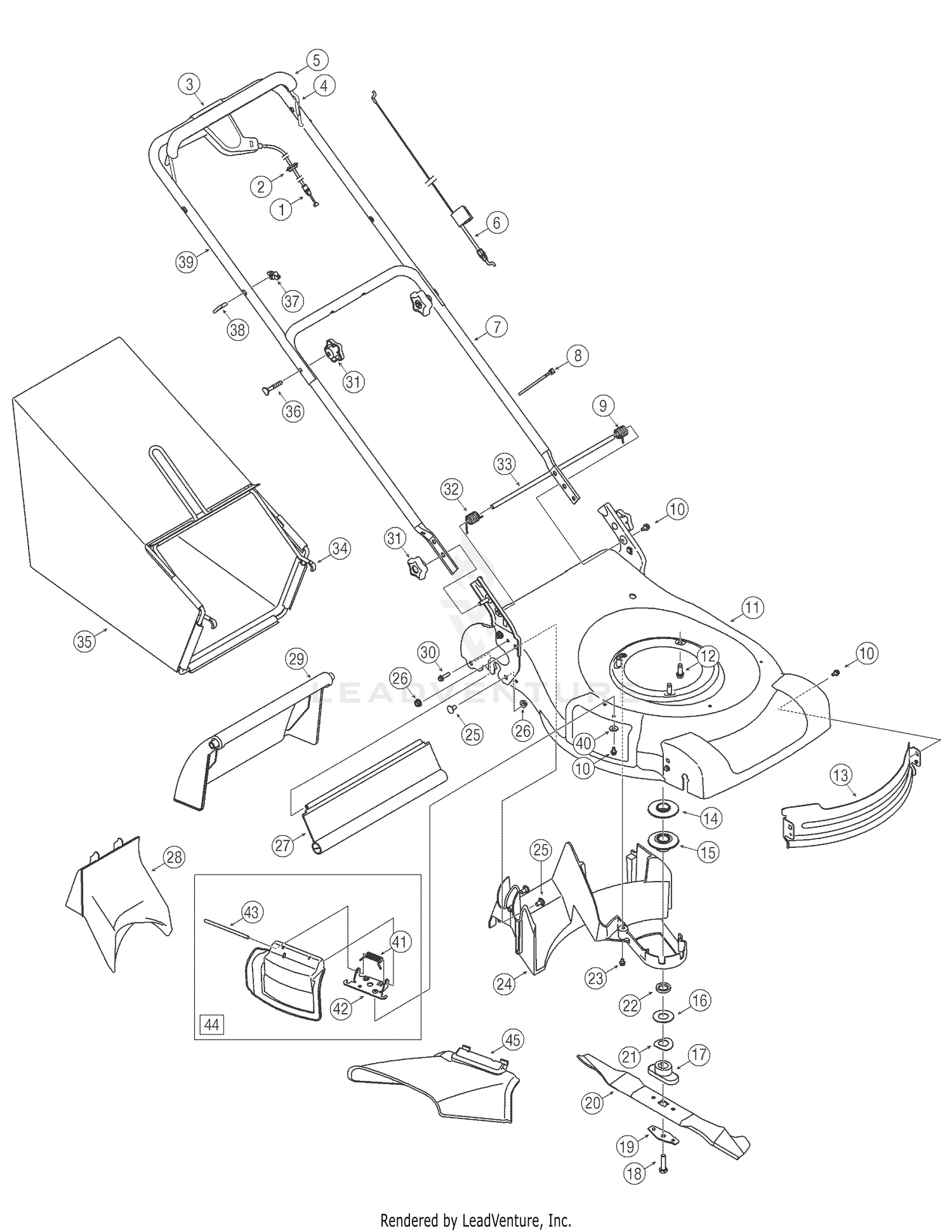

| Ref | Part Number | Description |
|---|
| 1 |
946-04265A |
Drive Control Cable This part replaces 746-04265A. Price: $35.75 |
| 2 |
735-04059 |
Rubber Grommet Price: $4.04 |
| 3 |
753-06060A |
KIT This part replaces 753-05096A. Price: $23.77 |
| 4 |
747-1161A |
Blade Control Price: $10.27 |
| 5 |
731-04859 |
Bail Cover Price: $10.05 |
| 6 |
946-04213 |
Control Cable 45" This part replaces 746-04213. Price: $22.67 |
| 7 |
749-04037 |
Lower Handle Price: $46.59 |
| 8 |
725-0157 |
Cable Tie Price: $3.46 |
| 9 |
732-04265 |
DOOR TORSION SPRING (LH) Not Available Price: |
| 10 |
710-0599 |
TT Screw, 1/4-20 x .500 Price: $3.86 |
| 12 |
710-0654A |
TT Screw, 3/8-16 x 1.00 Price: $3.75 |
| 13 |
987-01834 |
FRONT DECK BAFFLE Not Available This part replaces 787-01346. Price: |
| 14 |
956-04157B |
Upper Engine Pulley Not Available This part replaces 756-04157B. Price: |
| 15 |
956-04156B |
ENGINE PULLEY 2.75 DIA Not Available This part replaces 756-04156B. Price: |
| 16 |
736-0514 |
Flat Washer, .885 x 1.850 x .060 Price: $5.94 |
| 17 |
748-0376E |
Blade Adapter This part replaces 748-0376C. Price: $19.13 |
| 18 |
710-1044 |
Screw, 3/8-24 x 1.50 Price: $3.48 |
| 19 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 20 |
942-0741A |
Blade This part replaces 742-0741. Price: $27.55 |
| 21 |
936-0513 |
WASHER SPRING Not Available This part replaces 736-0513. Price: |
| 22 |
950-1071 |
Sleeve Spacer .88 ID x 1.13 OD This part replaces 750-1071. Price: $3.82 |
| 23 |
710-0653 |
TT Screw, 1/4-20 x .375 Price: $3.78 |
| 24 |
731-05463A |
DECK BAFFLE Not Available This part replaces 731-05463. Price: |
| 25 |
710-0260A |
Carriage Bolt, 5/16-18 x .62 Price: $3.71 |
| 26 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 27 |
731-05462A |
TRAILSHIELD Not Available This part replaces 731-05462. Price: |
| 28 |
731-05157 |
Mulch Plug Price: $28.91 |
| 29 |
931-05017A |
DOOR Not Available This part replaces 731-05017A. Price: |
| 30 |
710-1241 |
Screw, 1/4-15 x 1.00 Price: $5.77 |
| 31 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 32 |
732-04264 |
DOOR TORSION SPRING (RH) Not Available Price: |
| 33 |
711-04374 |
Door Pivot Rod Price: $29.34 |
| 34 |
647-04051B-0637 |
GRASSBAG FRAME ASSEMBLY (POWDER BLACK) Not Available This part replaces 647-04051. Price: |
| 35 |
964-04045 |
Grass Catcher This part replaces 664-04045. Price: $100.49 |
| 36 |
710-1174 |
Carriage Bolt, 5/16-18 x 2.00 Price: $6.28 |
| 37 |
720-0279 |
Wing Nut Price: $3.93 |
| 38 |
710-1205 |
Eye Bolt Price: $3.53 |
| 39 |
749-04206 |
UPPER HANDLE Not Available Price: |
| 40 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 41 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 42 |
17032A |
PLATE-ADAPTER Not Available Price: |
| 43 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 44 |
987-02055 |
Mulch Plug Assembly Price: $24.18 |
