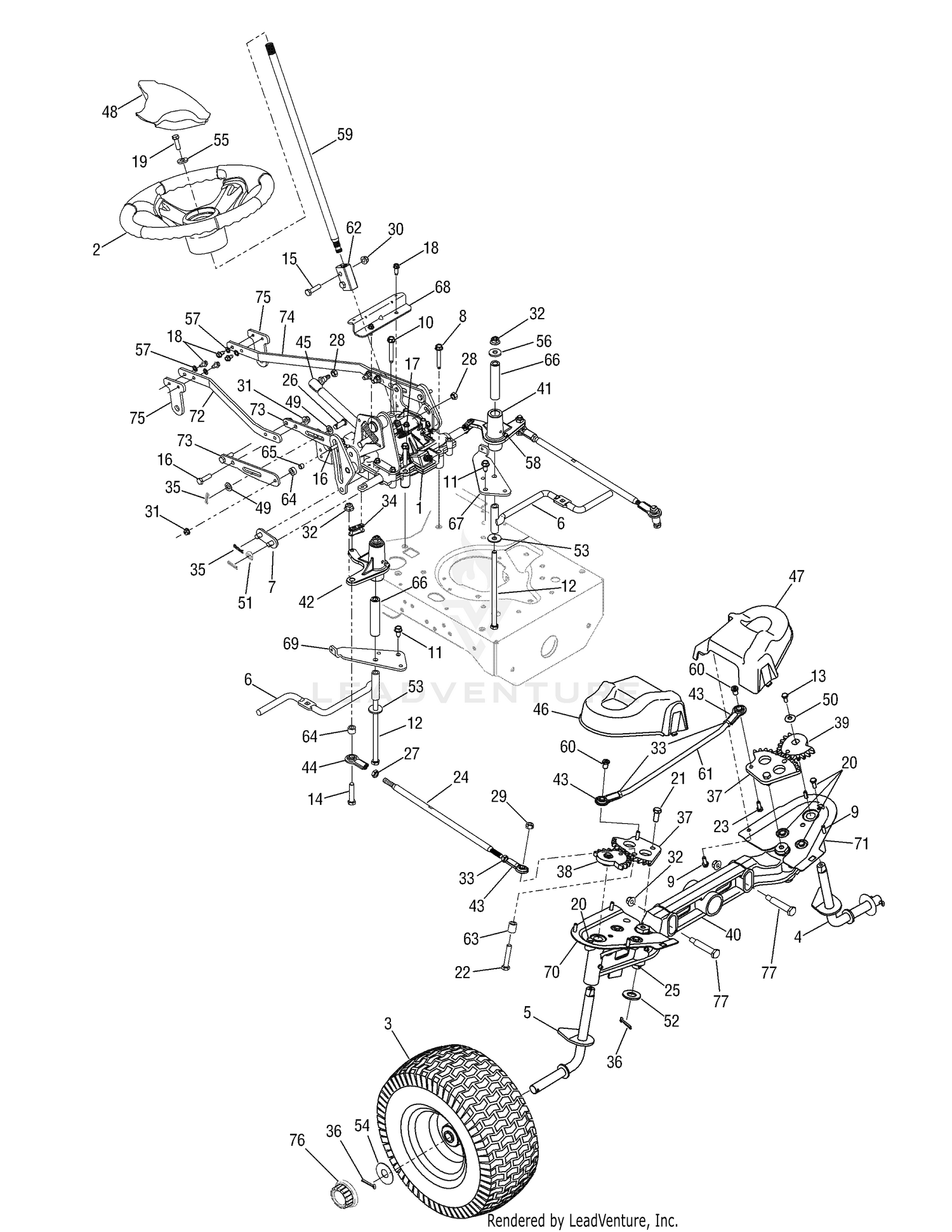

| Ref | Part Number | Description |
|---|
| 1 |
918-04634A |
Hydro Steering Assembly This part replaces 918-04634. Price: $862.68 |
| 2 |
631-04008B |
Steering Wheel Assembly This part replaces 631-04008A. Price: $87.97 |
| 4 |
683-04440 |
AXLE ASSEMBLY (LH) Not Available Price: |
| 5 |
683-04439 |
Axle Assembly, RH Not Available Price: |
| 6 |
647-04080A-0637 |
FENDER ROD ASSEMBLY (RH) (POWDER BLACK) Not Available Price: |
| 7 |
683-04332 |
STEERING LINK ASSEMBLY Not Available Price: |
| 8 |
710-04006 |
Screw, Hex Wash Hd. Tapp, 5/16-18 x 2.0 Price: $8.46 |
| 9 |
710-04187A |
Screw, TT, 1/4-15 x .500 This part replaces 710-04187. Price: $5.99 |
| 10 |
710-04389 |
SCREW Price: $6.01 |
| 11 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 12 |
710-04692 |
Screw, Hex Cap, 3/8-16 x 7.25 Gr5 Price: $8.15 |
| 13 |
710-0513A |
Hex Bolt, 1/4-28 x .625" This part replaces 710-0513. Price: $4.04 |
| 14 |
710-0520 |
Screw, Hex Cap, 3/8-16 x 1.5 Gr5 Price: $3.93 |
| 15 |
710-0528 |
Screw, Hex Cap, 5/16-18 x 1.25 Gr5 Price: $3.90 |
| 16 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 17 |
710-0599 |
Screw, Hex Wash Hd. Tapp, 1/4-20 x .5 Price: $3.86 |
| 18 |
710-0642 |
Screw, Hex Wash Hd. Tapp, 1/4-20 x .75 Price: $4.05 |
| 19 |
710-0650 |
Screw, Hex Wash Hd. Tapp, 5/16-18 x .875 Price: $3.71 |
| 20 |
710-3015 |
Screw, Hex Cap, 1/4-20 x .75 Gr5 Price: $3.65 |
| 21 |
710-3119 |
Screw, Hex Cap Lock, 3/8-16 x .75 Gr5 Price: $5.91 |
| 22 |
710-3144 |
Screw, Hex Cap, 3/8-16 x 2.0 Gr5 Price: $4.02 |
| 23 |
710-3296 |
Screw, Hex Cap Lock, 1/4-20 x .75 Gr5 Price: $3.85 |
| 24 |
711-04472 |
DRAG LINK Not Available Price: |
| 25 |
711-04562 |
Shaft, Steering Pivot Gear Price: $14.72 |
| 26 |
711-04722 |
Pin, Clevis, .375 x .969 HT Price: $5.89 |
| 27 |
712-0312A |
HEX NUT 3/8 Not Available Price: |
| 28 |
712-0365 |
NUT Not Available Price: |
| 29 |
712-0375 |
Nut, Hex Lock, 3/8-16 Price: $4.02 |
| 30 |
712-04063 |
Nut, Hex Insert Flange Lock, 5/16-18 GrF Price: $3.56 |
| 31 |
712-04064 |
Nut, Hex Insert Flange Lock, 1/4-20 GrF Price: $3.64 |
| 32 |
712-04065 |
Nut, Hex Insert Flange Lock, 3/16-16 GrF Price: $3.68 |
| 33 |
912-3001 |
Nut, Hex Jam, 3/8-24 Gr2 Price: $5.94 |
| 34 |
913-04037 |
Link, Connnecting Price: $5.94 |
| 35 |
714-0104 |
Internal Cotter Pin This part replaces 914-0104. Price: $3.90 |
| 36 |
714-0162 |
Pin, Cot, 5/32, 1.25 This part replaces 714-04039. Price: $4.29 |
| 37 |
717-04274A |
Gear, Spur, 12T Price: $179.08 |
| 38 |
717-04275A |
Gear, Spur, RH 13T Price: $30.67 |
| 39 |
717-04282A |
Gear, Spur, LH 13T Price: $30.67 |
| 40 |
719-04170A |
PIVOT BAR AXLE Not Available Price: |
| 41 |
719-04287-0637 |
Arm, Steering, LH Price: $38.10 |
| 42 |
719-04288-0637 |
Arm, Steering, RH Price: $36.62 |
| 43 |
723-04035 |
End, Ball Joint Rod Price: $32.04 |
| 44 |
723-04036 |
End, Ball Joint Rod, LH Thrd. Price: $32.88 |
| 45 |
927-0626A |
Damper Cylinder This part replaces 727-0626A. Price: $134.75 |
| 46 |
731-05476 |
STEERING GEAR COVER (RH) Not Available Price: |
| 47 |
731-05618 |
Cover, Steering Gear, LH Price: $20.56 |
| 48 |
731-04532B |
Cover, Steering Wheel, Cub Cadet This part replaces 731-04532A. Price: $21.34 |
| 49 |
736-0185 |
Washer, Flat, .406 X .75 X .063 Thk This part replaces 936-0185. Price: $3.43 |
| 50 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 51 |
936-0286 |
Washer, Sping, .39 x .75 x .010 Price: $6.01 |
| 52 |
736-0315 |
Washer, Flat, .76 x 1.5 x .12 Price: $5.94 |
| 53 |
736-0452 |
Bell-Wash..46" I.D. This part replaces 936-0452. Price: $4.05 |
| 54 |
736-0866 |
Washer, Flat, .755 x 1.92 x .060 Price: $3.90 |
| 55 |
736-3004 |
Washer, Flat, .406 X .875 X .105 Thk This part replaces 936-3004. Price: $4.08 |
| 56 |
736-3052 |
Washer, Flat, .406 x 1.0 x .105 Price: $4.02 |
| 57 |
736-0222 |
Ext. L-Wash. 1/4" Scr.* This part replaces 936-0222. Price: $5.07 |
| 58 |
937-3000 |
Fitting, Grease Price: $4.04 |
| 59 |
738-04189 |
STEERING SHAFT Not Available Price: |
| 60 |
738-04240 |
Nut, Shoulder, .375 x .5 Price: $5.88 |
| 61 |
747-04496 |
ROD-3/8-24 x 14.4 Not Available Price: |
| 62 |
748-04139 |
Block, Steering Shaft Price: $36.14 |
| 63 |
750-04676 |
Spacer, .385 x .63 x .75 Price: $18.43 |
| 64 |
750-04776 |
Spacer, .380 x .625 x .265 Price: $4.75 |
| 65 |
750-04777 |
Spacer, .26 x .372 x .33 Price: $5.95 |
| 66 |
750-04855 |
Spacer, .385 x .75 x 3.47 Price: $10.78 |
| 67 |
783-04798-0637 |
STEERING SUPPORT BRACKET Not Available Price: |
| 68 |
783-04799-0637 |
STEERING SUPPORT BRACKET Not Available Price: |
| 69 |
783-05140-0637 |
STEERING SUPPORT BRACKET Not Available Price: |
| 70 |
783-05184-0637 |
BASE PLATE Not Available Price: |
| 71 |
783-05185-0637 |
BASE PLATE Not Available Price: |
| 72 |
783-05380-0637 |
STEERING LINK Not Available Price: |
| 73 |
783-05381 |
Bracket, Hydro/Steering Adjustment Not Available Price: |
| 74 |
783-05404-0637 |
STEERING LINK Not Available Price: |
| 76 |
931-3020 |
Hub Cap Price: $7.77 |
| 77 |
738-1011A |
Bolt, Shoulder, .5 x 2.23:3/8-16 Price: $7.65 |
| 539101331 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 539108369 |
539108369 |
HCS 1/2-13 X 1-1/4 Price: $2.99 |
| 539111155 |
539111155 |
HITCH WELDMENT Price: $449.99 |
| 539111157 |
539111157 |
MOUNT Z BRACE Price: $149.99 |
| 539111158 |
539111158 |
SUPPORT, OUTER Price: $34.99 |
| 539111162 |
539111162 |
SUPPORT ARM WELDMENT Price: $169.99 |
| 539111167 |
539111167 |
SEAL, RUBBER Price: $22.99 |
| 539111171 |
539111171 |
SEAL STRAP Price: $22.99 |
| 539111187 |
539111187 |
NUT 1/2-13 HEX Price: $2.99 |
| 539111190 |
539111190 |
LATCH WELDMENT Price: $54.99 |
| 539111267 |
539111267 |
BRACKET, SUPPORT Price: $11.99 |
| 539111280 |
539111280 |
Hood Assembly Collection System (HSC9) Price: $1,899.95 |
| 539976978 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 539976979 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 539977250 |
539977250 |
SPRING Price: $3.99 |
| 539990254 |
539990254 |
WASHER 1/2" SPLIT LOCK Price: $2.99 |
| 539990563 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 539990580 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 539990613 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 539990625 |
596433401 |
Nuts This part replaces 539990625. Price: $2.99 |
