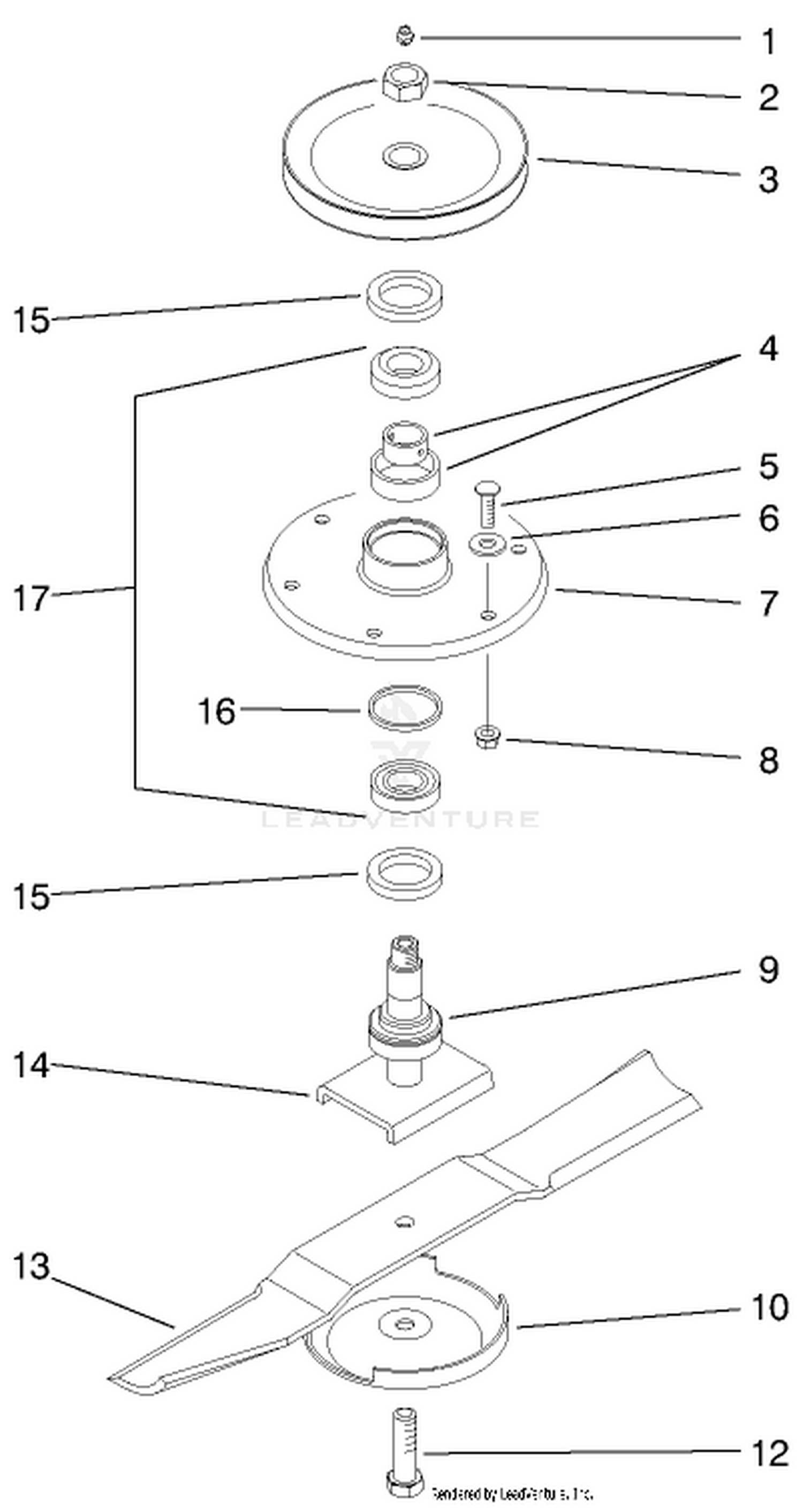

| Ref | Part Number | Description |
|---|
| 1 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 2 |
32146-20 |
NUT-HEX Price: $3.23 |
| 3 |
92-5607 |
PULLEY AND HUB ASM Price: $44.75 |
| 4 |
27-5970 |
SPACER-SET, MATCHED Price: $57.99 |
| 5 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
61-4160 |
HOUSING-SPINDLE Price: $131.00 |
| 8 |
32128-21 |
NUT-HF Price: $0.39 |
| 9 |
92-5606 |
SPACER-SPINDLE Price: $55.62 |
| 10 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 12 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 13 |
92-5608-03 |
BLADE This part replaces 92-5608. Price: $44.11 |
| 14 |
92-5604 |
SPINDLE SHAFT ASM Price: $145.09 |
| 15 |
253-139 |
SEAL-OIL Price: $12.45 |
| 17 |
27-0960 |
BEARING ASM Price: $58.99 |
