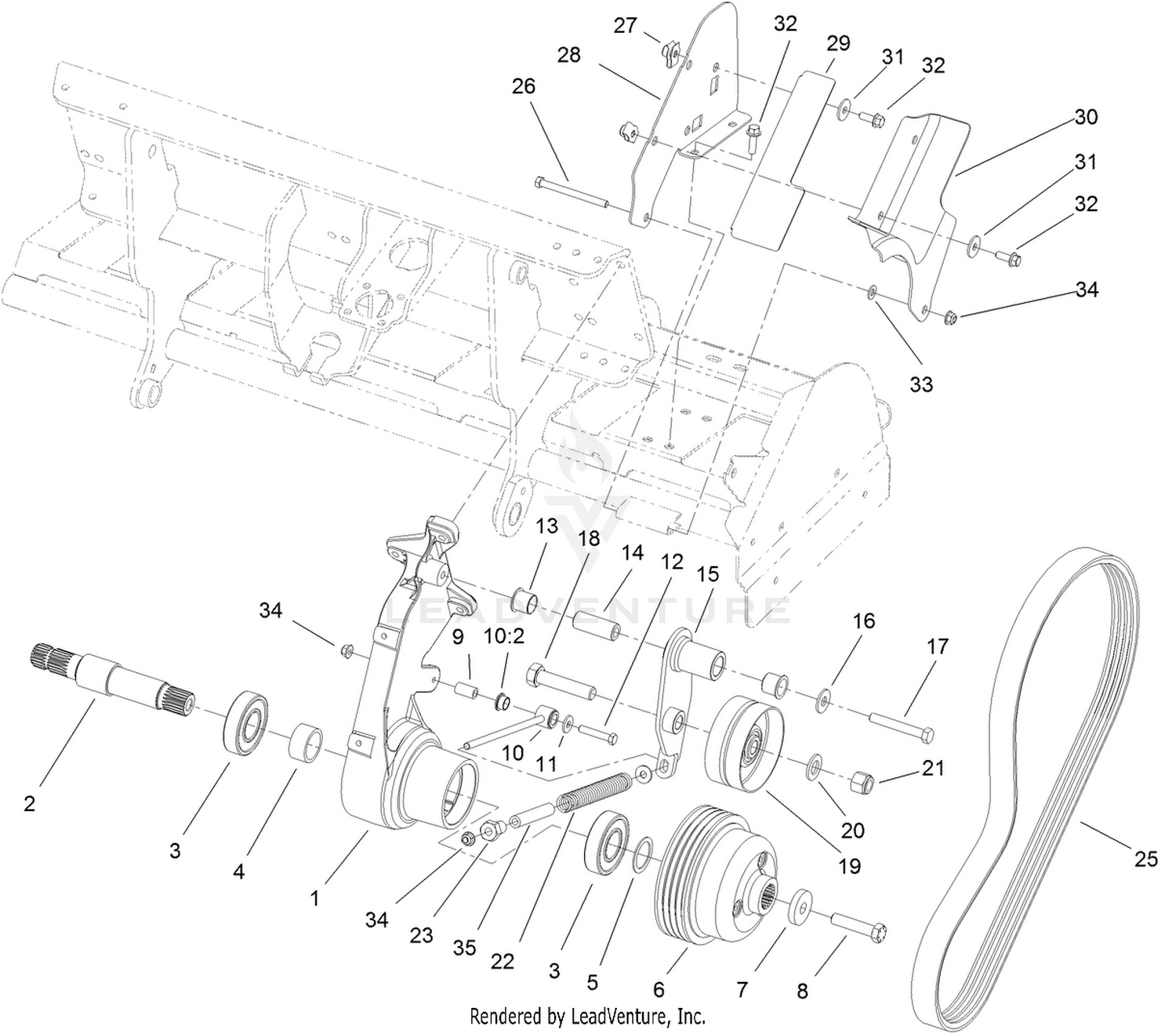

| Ref | Part Number | Description |
|---|
| 1 |
110-4447 |
SUPPORT-PULLEY, LH Price: $578.38 |
| 2 |
110-4527 |
SHAFT-PULLEY, SPLINED Price: $280.50 |
| 3 |
106-8871 |
BEARING-BALL Price: $25.32 |
| 4 |
110-4460 |
SPACER-BEARING Price: $12.01 |
| 5 |
110-4498 |
WASHER-SHIM Price: $6.58 |
| 6 |
110-4419 |
PULLEY Price: $400.50 |
| 7 |
105-1016 |
WASHER-FLAT Price: $17.48 |
| 8 |
110-4614 |
SCREW-HH Price: $3.44 |
| 9 |
110-4631 |
TUBE-SPACER Price: $9.91 |
| 10 |
115-2815 |
IDLER ARM ASM Price: $106.17 |
| 11 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 12 |
323-11 |
SCREW-HH Price: $1.08 |
| 13 |
126-1963 |
BUSHING-PIVOT Price: $6.69 |
| 14 |
105-0945 |
SLEEVE-PIVOT Price: $34.22 |
| 15 |
110-4625-03 |
ARM-IDLER, LH Price: $125.27 |
| 16 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 17 |
325-14 |
SCREW-HH Price: $2.64 |
| 18 |
328-5 |
SCREW-HH Price: $3.60 |
| 19 |
100-7631 |
PULLEY-IDLER Price: $146.29 |
| 20 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 21 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 22 |
110-4632 |
SPRING-COMPRESSION Price: $19.67 |
| 23 |
110-4676 |
NUT-IDLER Price: $43.09 |
| 25 |
110-4327 |
BELT-BANDED, 4 GROOVE Price: $153.97 |
| 26 |
323-17 |
SCREW-HH Price: $2.05 |
| 27 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 28 |
110-4476-03 |
SUPPORT-GUARD, BELT Price: $45.53 |
| 29 |
114-1464-03 |
SHIELD-DIRT, LH Price: $29.37 |
| 30 |
110-4475 |
GUARD-BELT, LH Price: $162.85 |
| 31 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 32 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 33 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 34 |
104-8301 |
NUT-HF, NI Price: $1.09 |
