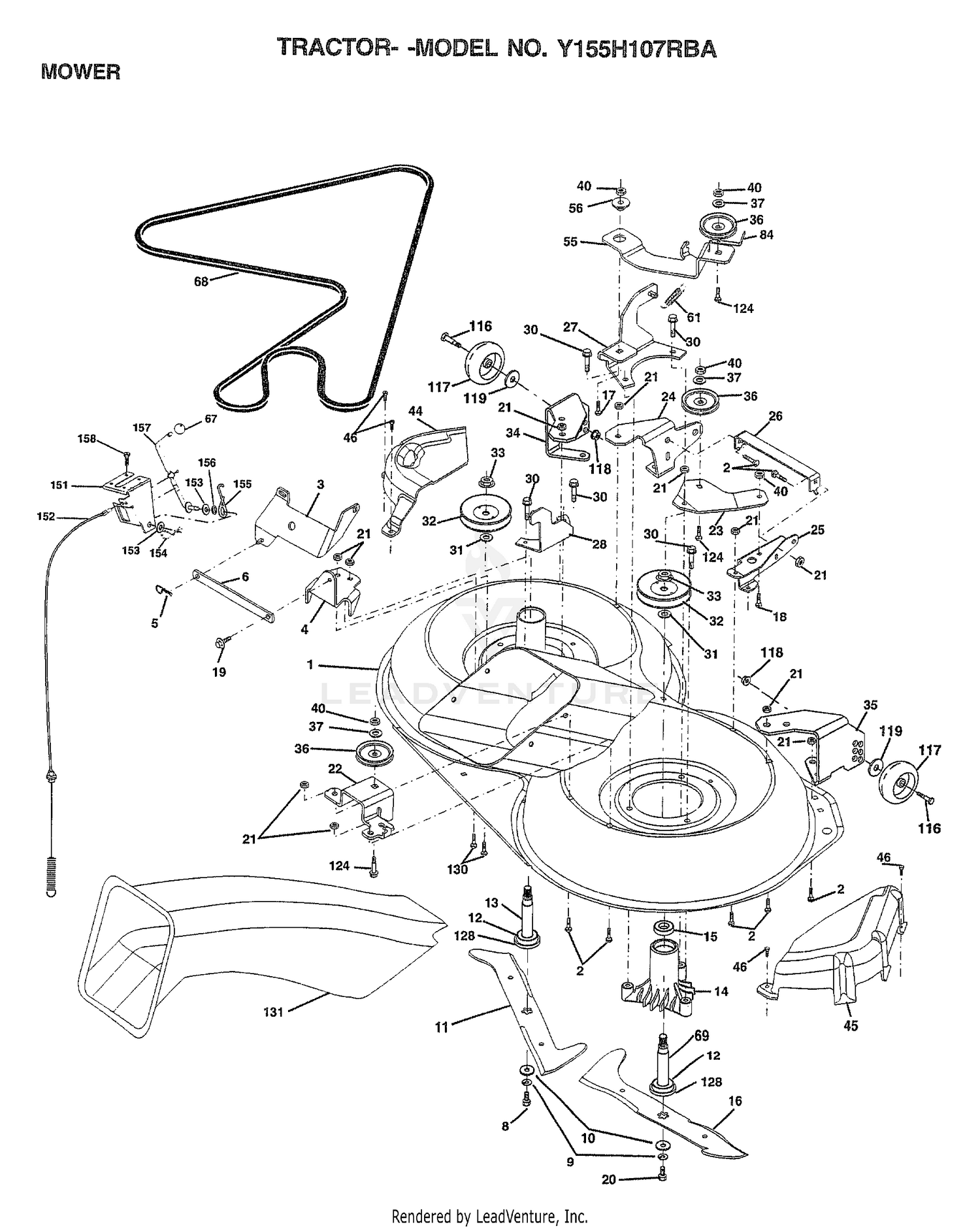

| Ref | Part Number | Description |
|---|
| 1 |
169160 |
HOUSING ASM MOWER Price: Call Us |
| 1 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
165569 |
BRKT.ASM.S-BAR.CHASSIS Price: Call Us |
| 3 |
321-4 |
SCREW-HH Price: $0.99 |
| 4 |
169167 |
BRKT BAR SWAY DECK Price: Call Us |
| 4 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 5 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
165557 |
BAR.SWAY.92.CRD Price: Call Us |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 8 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 11 |
168720 |
BLADE Price: Call Us |
| 11 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
340-86 |
FITTING-TEE Price: $35.23 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
66-8190 |
HYDRAULIC HOSE ASM Price: $85.54 |
| 16 |
168721 |
BLADE Price: Call Us |
| 16 |
66-8640 |
HYDRAULIC HOSE ASM Price: $104.12 |
| 17 |
66-8150 |
HOSE-HYDRAULIC Price: $15.32 |
| 18 |
66-3130 |
FITTING-SPECIAL Price: $76.51 |
| 18 |
72110608 |
BOLT D Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 20 |
165484 |
BOLT.3/8-24X1.25 Price: Call Us |
| 20 |
63-7410 |
BRACKET-BULKHEAD Price: $9.20 |
| 21 |
304-99 |
STEM-HOSE Price: $34.00 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
169165 |
BRKT IDLER SPRT Price: Call Us |
| 22 |
27-4240 |
PIN-CYLINDER Price: $21.90 |
| 23 |
169166 |
BRKT IDLER SPRT Price: Call Us |
| 23 |
63-6630 |
HYD CYLINDER ASM Price: $683.92 |
| 24 |
169170 |
BRKT SUSPENSION Price: Call Us |
| 24 |
3216-3 |
SCREW-HH Price: $7.20 |
| 25 |
169171 |
BRKT SUSPENSION Price: Call Us |
| 25 |
66-2720-03 |
VALVE LEVER ASM Price: $56.12 |
| 26 |
165237 |
BRACE.SUPT.SUSP.FRT.CRD Price: Call Us |
| 26 |
282-27 |
CLEVIS-ADJ Price: $24.71 |
| 27 |
169172 |
BRKT ASM SUSP Price: Call Us |
| 27 |
3220-2 |
NUT-JAM Price: $0.50 |
| 28 |
169168 |
BRKT ASM SUSP Price: Call Us |
| 28 |
321-11 |
SCREW-HH Price: $0.36 |
| 29 |
63-7960 |
VALVE-LIFT Price: $636.36 |
| 30 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
283-16 |
PIN-CLEVIS Price: $2.37 |
| 32 |
153535 |
PULLEY.MANDREL.42 Price: Call Us |
| 32 |
76-4830-03 |
VALVE ROD ASM Price: $38.97 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
340-70 |
NUT-LOCK Price: $2.10 |
| 34 |
169174 |
BRKT GAUGE WHEEL Price: Call Us |
| 34 |
70-7530 |
SPRING-COMPRESSION Price: $15.72 |
| 35 |
169175 |
BRKT GAUGE WHEEL Price: Call Us |
| 35 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 36 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
| 36 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
19131316 |
WASHER Price: Call Us |
| 37 |
32105-12 |
SCREW Price: $2.19 |
| 38 |
169851 |
SPACER HUB ARM IDLER Price: Call Us |
| 38 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 39 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 39 |
72110622 |
BOLT Price: Call Us |
| 40 |
56-7984 |
PROTECTIVE SLEEVE Price: $14.12 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 42 |
66-2670 |
BRACKET-THROTTLE Price: $8.98 |
| 43 |
32128-33 |
NUT-HF Price: $0.25 |
| 44 |
169180 |
COVER MANDREL Price: Call Us |
| 44 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 45 |
169179 |
COVER MANDREL Price: Call Us |
| 45 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 46 |
71-3500-03 |
DISCONTINUED Price: Call Us |
| 47 |
63-6760 |
FITTING-CONNECTOR Price: $61.52 |
| 48 |
105-4288 |
CABLE-THROTTLE Price: $59.41 |
| 49 |
105-0018 |
HOSE-HYD Price: $128.79 |
| 50 |
105-0019 |
HOSE ASM-HYD LP Price: $81.53 |
| 51 |
92-5082 |
HOSE-HYD Price: $25.51 |
| 52 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 53 |
94-6968 |
BRACKET-BELLCRANK, THROTTLE Price: $27.54 |
| 54 |
94-9421 |
BELLCRANK-THROTTLE Price: $15.33 |
| 55 |
169849 |
ARM IDLER Price: Call Us |
| 55 |
94-9420 |
LINK-THROTTLE Price: $34.56 |
| 56 |
94-9422 |
SCREW-SHOULDER Price: $1.93 |
| 61 |
165945 |
SPRING.TENSION.BELT Price: Call Us |
| 67 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 68 |
169178 |
HEX-BELT Price: Call Us |
| 69 |
165482 |
SHAFT.ASM.W/LWR.BRG.RH.THD Price: Call Us |
| 116 |
137644 |
BOLT.SHOULDER Price: Call Us |
| 117 |
133957 |
WHEEL GAGE DONUT Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 124 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 130 |
72110506 |
SUB= 72270506 Price: Call Us |
| 131 |
165661 |
CHUTE.BAGGER.CRD Price: Call Us |
| 151 |
169670 |
BRKT CLUTCH CABLE Price: Call Us |
| 152 |
170300 |
CABLE CLUTCH CRD SERVICE Price: Call Us |
| 153 |
169674 |
WASHER FLAT Price: Call Us |
| 154 |
169675 |
SPRING RETAINER Price: Call Us |
| 155 |
169671 |
SPRING RETENTION LVR CLUTCH CAB Price: Call Us |
| 156 |
169672 |
SPACER Price: Call Us |
| 157 |
169669 |
ROD.CLUTCH.CABLE.3/8 Price: Call Us |
| 158 |
17720410 |
SCREW LT Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
| 165579 |
MANDREL.ASM.CRD.LH.THREADS |
Price: Call Us 165579 |
