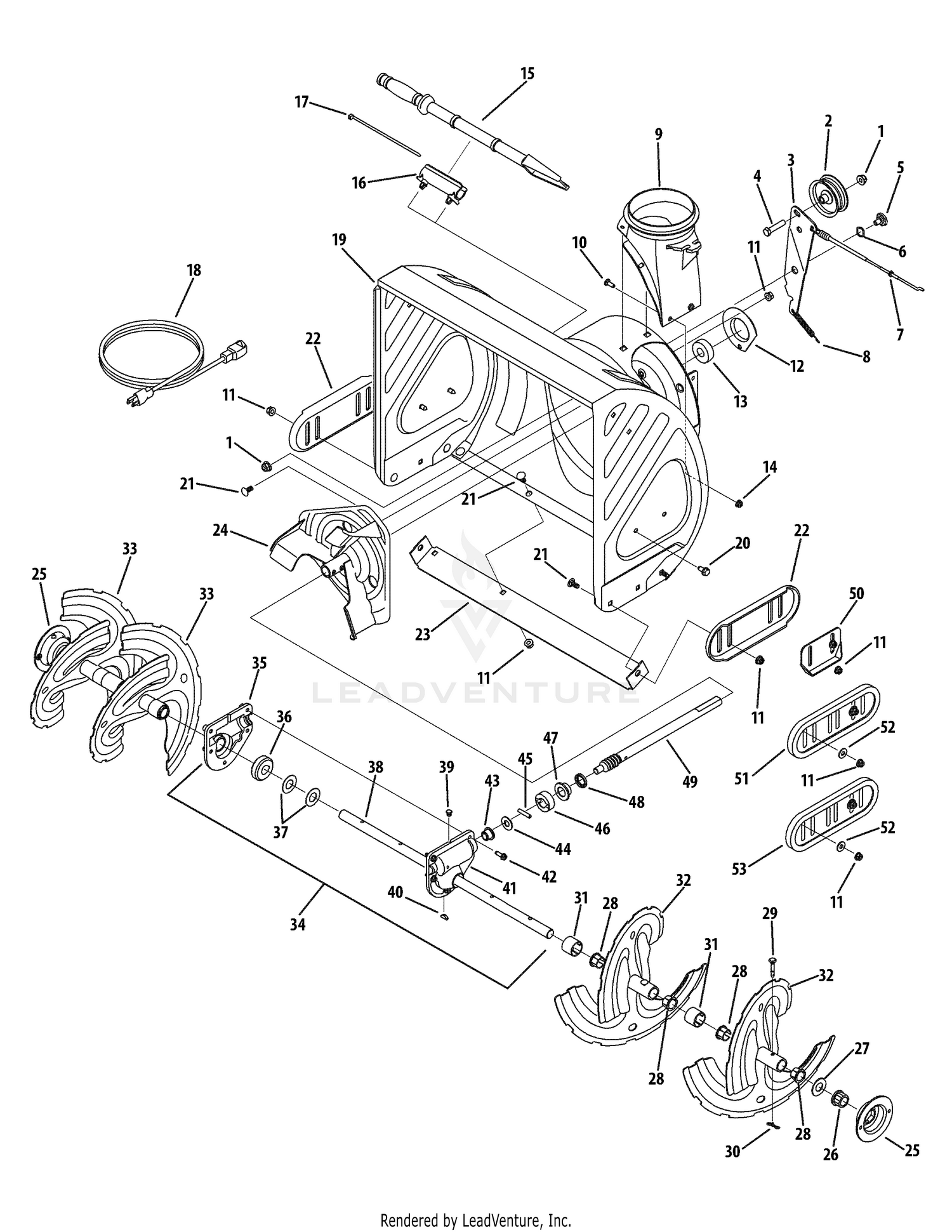

| Ref | Part Number | Description |
|---|
| 1 |
712-04065 |
Flange Lock Nut, 3/8 -16 Price: $3.68 |
| 2 |
756-04224 |
Idler Pulley, 2.75 OD This part replaces 756-0981B. Price: $24.80 |
| 3 |
790-00080D |
AUGER IDLER BRACKET This part replaces 790-00080A. Price: $25.44 |
| 4 |
710-0347 |
Hex Bolt, 3/8-16 x 1.75 Price: $4.39 |
| 5 |
738-0281 |
Shoulder Screw, .625 x .17 x 3/8-16 Price: $9.16 |
| 6 |
736-0174 |
Wave Washer, .625 x .885 x .015 Price: $5.94 |
| 7 |
946-0897 |
Auger Cable This part replaces 746-0897. Price: $23.09 |
| 8 |
932-0611 |
Extension Spring, .38 OD x 3.6 This part replaces 732-0611. Price: $6.92 |
| 9 |
731-04705D |
CHUTE ADAPTER This part replaces 731-04705C. Price: $23.30 |
| 10 |
710-0703 |
Carriage Screw, 1/4-20 x .75 Price: $3.66 |
| 11 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 12 |
05931A |
Bearing Housing Price: $9.73 |
| 13 |
941-0309 |
Flange Ball Bearing, .75 x 1.85 This part replaces 741-0309. Price: $69.59 |
| 14 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 15 |
931-2643 |
Chute Cleanout Tool This part replaces 731-2643. Price: $16.68 |
| 16 |
731-11421 |
Cleanout Tool Mount This part replaces 731-2635. Price: $9.83 |
| 17 |
725-0157 |
Cable Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 20 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 21 |
710-0451 |
Carriage Bolt, 5/16-18 x .750 Price: $3.53 |
| 22 |
790-00091 |
Deluxe Skid Shoe Price: $25.06 |
| 23 |
790-00121 |
Shave Plate, 2.25 x 26" Price: $28.47 |
| 24 |
684-04057C-0637 |
IMPELLER ASSEMBLY-12" This part replaces 684-04057A. Price: $64.81 |
| 25 |
790-00087A |
Bearing Housing Price: $18.74 |
| 26 |
941-0245 |
Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07 |
| 27 |
736-0188 |
Flat Washer, .76 x 1.49 x .06 Price: $3.75 |
| 28 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 29 |
738-04124A |
Shear Pin Price: $1.56 |
| 30 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 31 |
731-04870 |
Spacer, 1.25 OD x .75 ID x 1.00 Price: $4.06 |
| 32 |
684-04107A |
AUGER SPIRAL (LH) This part replaces 684-04107. Price: $63.62 |
| 33 |
684-04108A |
AUGER SPIRAL (RH) This part replaces 684-04108. Price: $67.28 |
| 34 |
918-04172C |
Gearbox Assembly, 26" This part replaces 618-04172A. Price: $381.46 |
| 35 |
918-0123A |
REDUCER HOUSING ASSEMBLY (RH) This part replaces 618-0123A. Price: $46.04 |
| 36 |
917-04861 |
WORM GEAR 20T This part replaces 717-04449. Price: $37.82 |
| 37 |
736-0351 |
Flat Washer, .760 ID x 1.50 OD Price: $3.93 |
| 38 |
711-06144 |
Auger Axle, 26" This part replaces 711-04284. Price: $72.65 |
| 39 |
721-0325 |
Plug, 1/4 x .437 Price: $3.82 |
| 40 |
914-0161 |
KEY 3/16 x 5/8 H This part replaces 714-0161. Price: $3.82 |
| 41 |
918-0124A |
REDUCER HOUSING ASSEMBLY (LH) This part replaces 618-0124A. Price: $45.91 |
| 42 |
710-0642 |
Hex Washer Screw, 1/4-20 x .750 Price: $4.05 |
| 43 |
741-0663 |
Flange Bearing, .50 ID x .75 OD x .59 Price: $8.86 |
| 44 |
736-3084 |
Flat Washer, .51 x 1.12 x .06 Price: $4.39 |
| 45 |
715-04021 |
Dowel Pin, .25 OD x 1.25 Price: $3.68 |
| 46 |
718-04071 |
Thrust Collar, .756 ID x .600 Price: $6.73 |
| 47 |
741-0662 |
Flng. Bearing, .75 ID x 1.00 OD x .59 Price: $9.52 |
| 48 |
721-0327 |
Oil Seal, .75 x 1.131 x .188 Price: $6.10 |
| 49 |
917-04126 |
WORM SHAFT This part replaces 717-04126. Price: $69.83 |
| 51 |
731-06439 |
SLIDE SHOE (POLYMER SMALL) Price: $18.94 |
