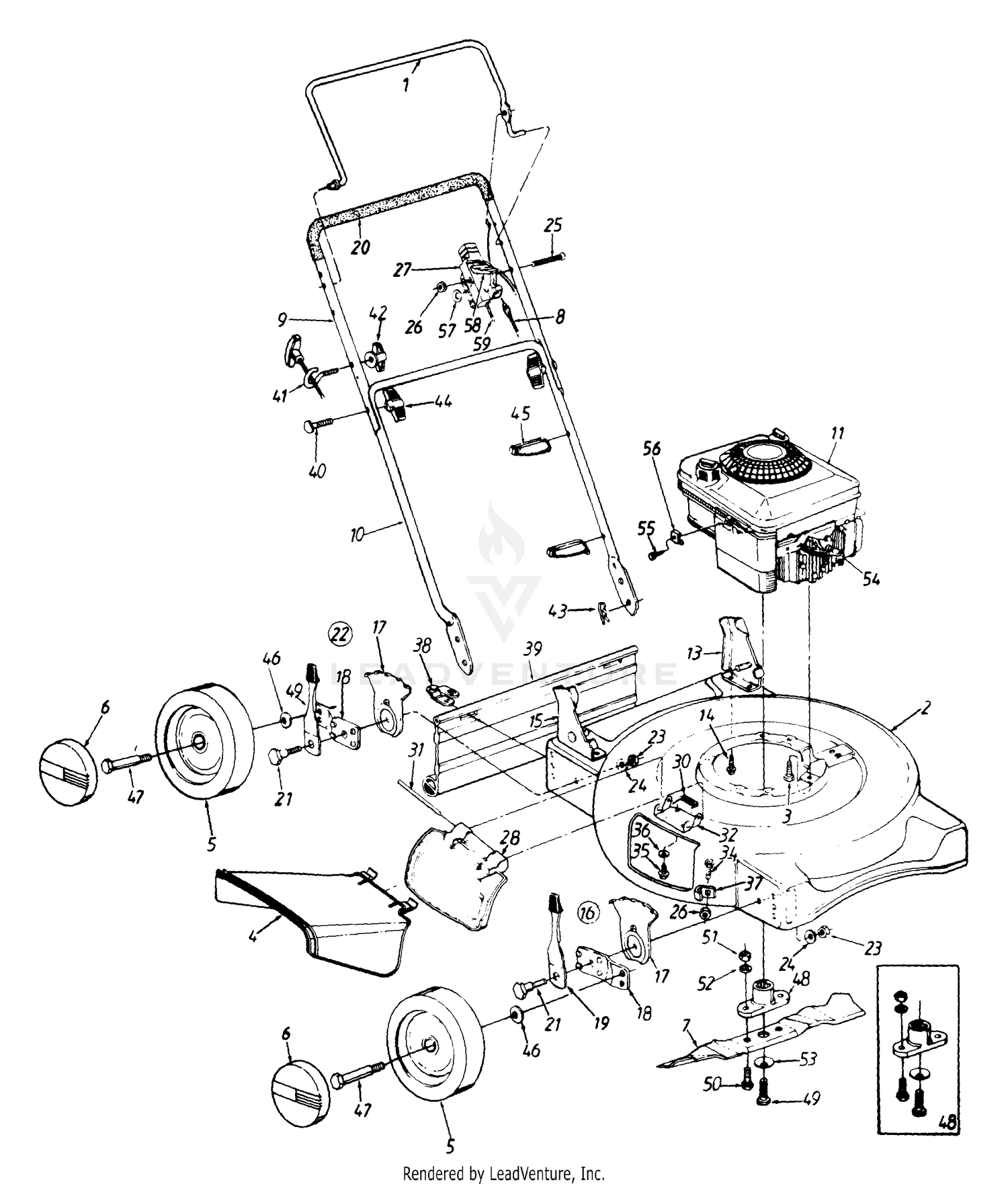

| Ref | Part Number | Description |
|---|
| 1 |
747-0824B-0637 |
Std. Control Handle This part replaces 747-0824. Price: $57.85 |
| 3 |
710-0654A |
Hex TT-Tap Scr. 3/8-16 x 1" Lg. Price: $3.75 |
| 4 |
731-1409B |
Side Discharge Deflector This part replaces 631-1407. Price: $24.80 |
| 5 |
634-0020 |
Wheel Ass'y. Price: $35.05 |
| 6 |
920-0249 |
HUB CAP Not Available This part replaces 720-0249. Price: |
| 8 |
946-0550 |
Control Cable 39" This part replaces 746-0550. Price: $20.12 |
| 9 |
749-0538C |
UPPER HANDLE Not Available Price: |
| 10 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928. Price: $29.67 |
| 13 |
12935B |
BRACKET AS Not Available Price: |
| 14 |
710-0603 |
Hex B-Tap Scr. 5/16-18 x .5" Lg Price: $4.19 |
| 15 |
12936B |
HANDLE BRACKET ASS'Y. (RH) Not Available Price: |
| 16 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 17 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 18 |
15262B |
Small Wheel Pivot Bar Price: $13.59 |
| 19 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 20 |
720-0295 |
Grip Foam This part replaces 720-0226. Price: $29.03 |
| 21 |
738-0507B |
Shoulder Bolt .5" Dia. x .434" Price: $3.86 |
| 22 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14579. Price: $57.55 |
| 24 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 25 |
710-0605 |
Oval C-Sunk Mach. Scr. Price: $3.85 |
| 26 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 27 |
946-0875 |
Throttle Body This part replaces 746-0875. Price: $8.64 |
| 30 |
932-0731 |
Torsion Spring This part replaces 732-0731. Price: $9.09 |
| 31 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 32 |
782-7006 |
MOUNTING BRACKET Not Available Price: |
| 34 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 35 |
710-0599 |
Hex TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 36 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 37 |
782-7009 |
CHUTE STOP BRACKET Not Available Price: |
| 38 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 39 |
731-1447 |
FLAP Not Available Price: |
| 40 |
710-1174 |
Carriage Bolt 5/16-18 x 2" Lg. Price: $6.28 |
| 41 |
710-1205 |
Rope Guide Price: $3.53 |
| 42 |
712-0397A |
Wing Nut This part replaces 712-0397. Price: $3.71 |
| 43 |
714-0104 |
Int. Cotter Pin 5/16" Dia. Price: $3.90 |
| 44 |
920-0276 |
Hand Knob This part replaces 720-0276. Price: $3.23 |
| 45 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 46 |
736-0105 |
Bell-Wash .38" I.D. x .88" O.D. Price: $3.96 |
| 47 |
738-0102 |
Axle Bolt Price: $9.22 |
| 48 |
753-0484 |
Blade Adapter Kit Price: $21.69 |
| 49 |
710-1044 |
Hex Bolt 3/8-24 x 1.5" Lg.- Gr. 5 Price: $3.48 |
| 50 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 51 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 53 |
736-0452 |
Bell-Wash .39" I.D. Price: $4.05 |
| 54 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 55 |
710-1237 |
Hex Self-Tap Scr. #10-32 x .62" Lg. Price: $3.89 |
| 56 |
BS-690798 |
Cable Clamp (B&S) This part replaces 751-0568. Price: $4.88 |
| 57 |
936-0501 |
Curved Spring Wash. .66" I.D. This part replaces 736-0501. Price: $5.99 |
| 58 |
946-0876 |
Throttle Lever This part replaces 746-0876. Price: $7.50 |
