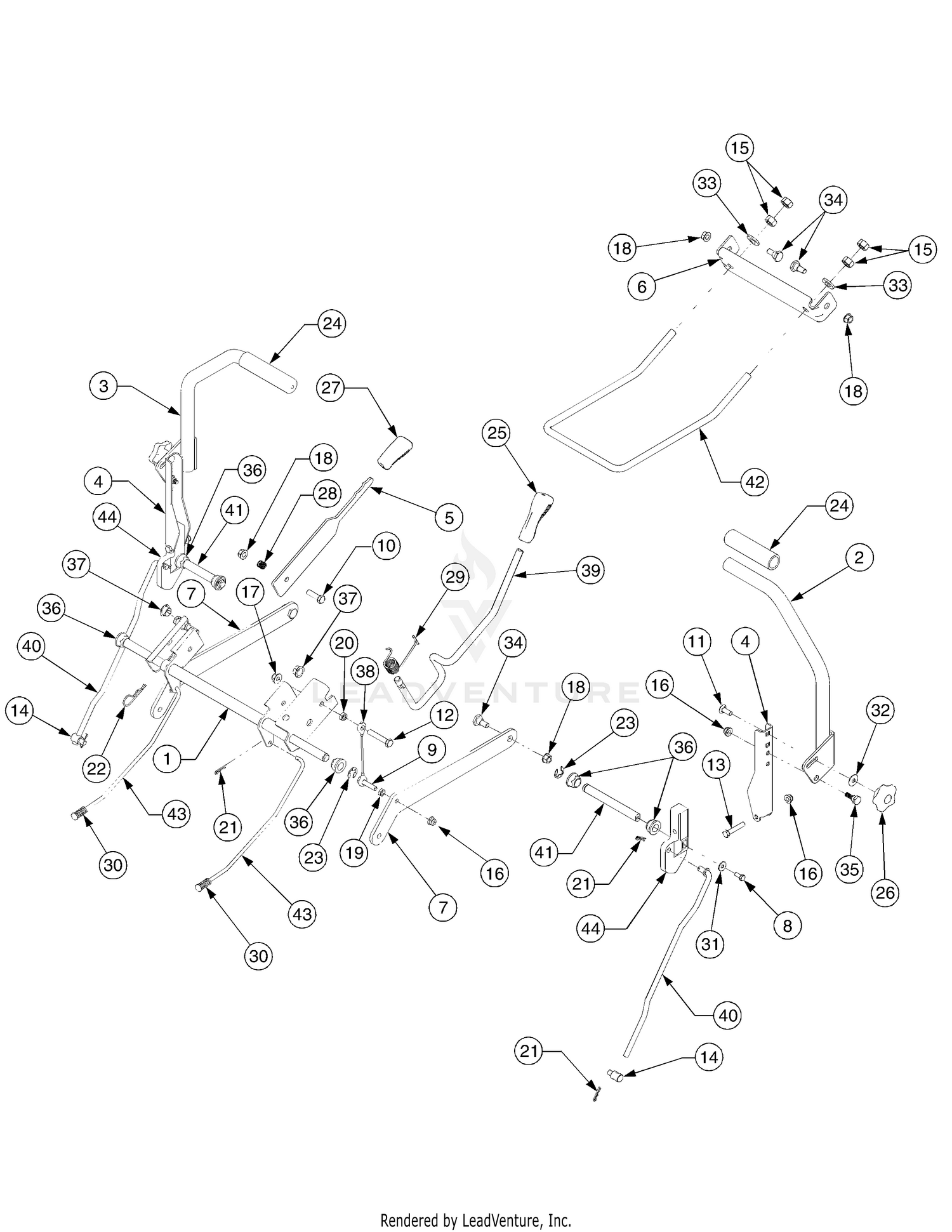

| Ref | Part Number | Description |
|---|
| 1 |
603-04160C-0637 |
Deck Lift Shift Assembly This part replaces 603-04160A. Price: $142.23 |
| 2 |
603-04322 |
LAPBAR HANDLE (RH) Not Available Price: |
| 3 |
603-04324 |
LAPBAR HANDLE (LH) Price: $57.76 |
| 4 |
703-05387B |
Lapbar Pivot Bracket This part replaces 703-05387A. Price: $24.72 |
| 5 |
703-05396A-0637 |
Brake/Shabs Assembly Not Available This part replaces 703-05396. Price: |
| 6 |
703-05414A |
Bracket, Front Deck Hanger Price: $46.96 |
| 7 |
703-05793A |
Arm, Deck Lift This part replaces 703-05793. Price: $37.92 |
| 8 |
710-0433 |
Screw, Hex Lock, 1/4-20 x .62 GR5 Price: $4.02 |
| 9 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 10 |
710-3005 |
Screw, Hex Cap, 3/8-16 x 1.25 GR5 Price: $3.61 |
| 11 |
710-3105 |
Bolt, Carriage, 5/16-18 x .875 Price: $5.35 |
| 12 |
710-3144 |
Screw, Hex Cap, 3/8-16 x 2.0 GR5 Price: $4.02 |
| 13 |
710-3180 |
Screw, Hex Cap, 5/16-18 x 1.75 GR5 Price: $4.93 |
| 14 |
911-0832 |
Ferrule, 3/8-24 x .375 This part replaces 711-0832. Price: $13.68 |
| 15 |
712-3048 |
Nut, Hex Jam, 1/2-13 GR5 Price: $4.08 |
| 16 |
712-04063 |
Nut, Hx Flange Insert Lck, 5/16-18 GrF Price: $3.56 |
| 17 |
712-04065 |
Nut, Hx Flange Insert Lck, 3/8-16GrF Price: $3.68 |
| 18 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 19 |
712-3007 |
Nut, Hex Jam, 5/16-18 GR5 Price: $6.06 |
| 20 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 21 |
714-0104 |
Pin, Internal Cotter Price: $3.90 |
| 22 |
714-3020 |
Pin, Internal Cotter Price: $3.90 |
| 23 |
716-0106 |
E-Ring , .625 Dia. Shaft Price: $3.52 |
| 24 |
720-0274 |
Grip, Hand Price: $9.99 |
| 25 |
720-0311 |
Grip, Handle Price: $13.26 |
| 26 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 27 |
731-04735 |
BRAKE HANDLE GRIP Price: $17.99 |
| 28 |
732-0334 |
Spring, Compression Price: $3.38 |
| 31 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 32 |
736-0425 |
Washer, Bell, .325 x .93 x .045 Price: $3.95 |
| 33 |
736-3019 |
Washer, Flat, .531 x 1.062 x .134 HT Price: $5.45 |
| 34 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 35 |
738-0296 |
Screw, Shoulder, .437 x .268:5/16-18 Price: $3.93 |
| 36 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 37 |
741-3074 |
Bearing, Flange, .626 x .938 x .344 Price: $4.22 |
| 38 |
746-0970 |
Cable, Deck Lift, 5.05 Long Price: $11.72 |
| 39 |
747-04224 |
DECK LIFT HANDLE Not Available Price: |
| 40 |
747-04225A |
Rod, Lapbar Control Not Available Price: |
| 41 |
747-04226A |
Shaft Control This part replaces 747-04226. Price: $45.73 |
| 42 |
747-04401A |
Rod, Deck Front Hanger Price: $51.78 |
