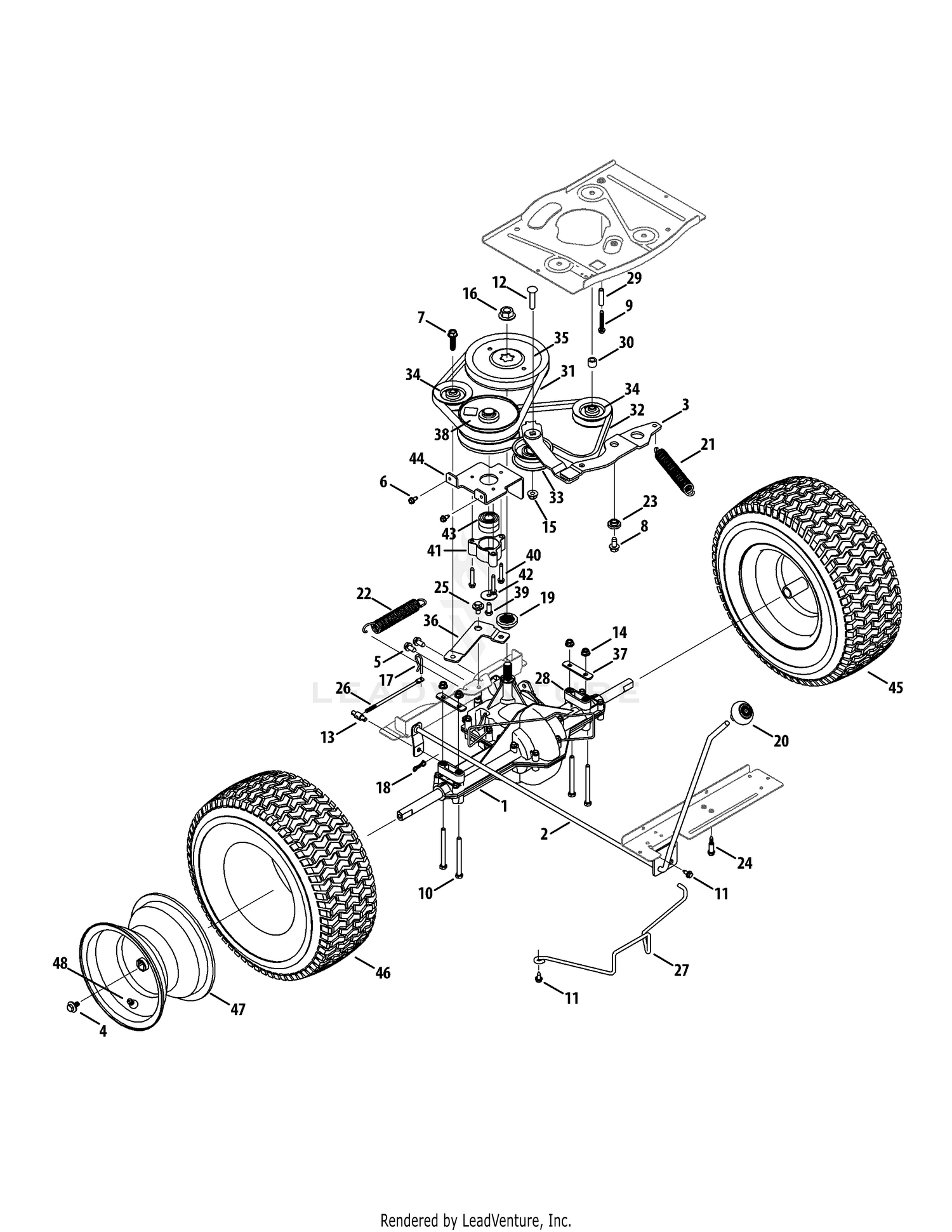

| Ref | Part Number | Description |
|---|
| 1 |
618P09929 |
TRANSMISSION This part replaces 918-05056A. Price: $353.23 |
| 2 |
647-05114 |
SHIFT HANDLE ASSEMBLY This part replaces 647-04262C. Price: $42.51 |
| 3 |
683-04768A-0637 |
Drive Assembly Idler Price: $16.76 |
| 4 |
710-05339A |
SCREW 5/16-24 x .750 GR5 This part replaces 710-05339. Price: $3.70 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0599 |
Tap Scew, 1/4-20, 0.500 Price: $3.86 |
| 7 |
710-06016 |
Screw, 3/8-16 x 1.375 Price: $3.66 |
| 8 |
710-0623 |
Tap Screw, 3/8-16, 0.750 Price: $3.93 |
| 9 |
710-1026 |
Screw, 1/4-20 x 1.750 Price: $5.94 |
| 10 |
710-1266 |
Hex Cap Screw, 5/16-18 x 3.5, Gr5 Price: $8.66 |
| 11 |
710-1652 |
Tap Screw, 1/4-20 x .625 Price: $3.86 |
| 12 |
710-0560 |
Screw, Carriage: 3/8-16 x 1.75" Price: $5.94 |
| 13 |
711-06141 |
Adjustable Ferrule, 1/4-20 X 1.00 Price: $37.25 |
| 14 |
712-04063 |
Flange Locknut, 5/16-18 Price: $3.56 |
| 15 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 16 |
712-0700 |
Flange Nut, 9/16-18 Price: $10.12 |
| 17 |
914-0209 |
Internal Cotter Pin, .125 Dia. Price: $3.22 |
| 18 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 19 |
718-04407 |
Pulley Hub, 5/8 Spline Price: $11.11 |
| 20 |
720-04028 |
Shift Knob Price: $9.44 |
| 21 |
732-0459C |
Extension Spring, .94 Dia. X 6.74 Lg. Price: $16.05 |
| 22 |
732-04934 |
Extension Spring, .97 OD X 6.18 Price: $6.77 |
| 23 |
738-0372B |
Shoulder Spacer, 1.00 X .38 X .38 Price: $8.78 |
| 24 |
738-05016A |
SCREW-SHOULDER SCREW .368 X .75 X 1/4-20 This part replaces 738-05016. Price: $3.70 |
| 25 |
738-05019 |
Shoulder Screw, .560 x .165, 5/16-18 Price: $3.70 |
| 26 |
747-05593 |
Shift Rod Price: $4.83 |
| 27 |
747-06126A |
Deck Belt Keeper, 30" This part replaces 747-06126. Price: $15.13 |
| 28 |
948-0334 |
Spacer Price: $9.87 |
| 29 |
750-04456 |
Spacer, .260 X .372 X 1.420 Price: $6.20 |
| 30 |
750-05563 |
Spacer, .385 x .625 x .500 Price: $6.51 |
| 31 |
954-05040 |
V-Belt, 5L:35.25 Price: $42.39 |
| 32 |
954-04331 |
V-Belt, 5L:35.28 Price: $42.39 |
| 33 |
756-04224 |
Flat Idler Pulley, 2.75 OD Price: $24.80 |
| 34 |
756-04325 |
V-Type Idler Pulley, 3.06 Price: $22.60 |
| 35 |
756-04464 |
V-Type Pulley, 6.56 Price: $18.40 |
| 36 |
783-07248A |
IDLER BRACKET REAR This part replaces 783-07248. Price: $7.44 |
| 37 |
783-08131-0637 |
Transaxle Mounting Bracket Price: $3.86 |
| 38 |
656P05011 |
VARIABLE SPEED PULLEY (4.75 OD) This part replaces 956-04015A. Price: $90.80 |
| 39 |
710-0627 |
Hex Head Lock Screw, 5/16-24:.750 Price: $3.68 |
| 40 |
710-0778 |
Tap Screw, 1/4-20:1.500 Price: $3.90 |
| 41 |
718-04261 |
Bearing Cup Price: $18.82 |
| 42 |
736-0362 |
Flat Washer, .330x1.250x.060 Price: $3.93 |
| 43 |
941-0600 |
Ball Bearing, 17 X 40 X 12 Price: $23.34 |
| 44 |
783-08210A-0637 |
VARIABLE SPEED BRACKET (POWDER BLACK) This part replaces 783-08210-0637. Price: $11.15 |
| 45 |
634-0139-0911 |
Complete Wheel Assembly Price: $280.90 |
| 46 |
734-04641 |
Tire, 16 x 6.5 x 8 Sq. Shldr. Price: $52.74 |
| 47 |
934-04319-0662 |
Rim Assembly, 8.0 x 5.38 Price: $43.21 |
