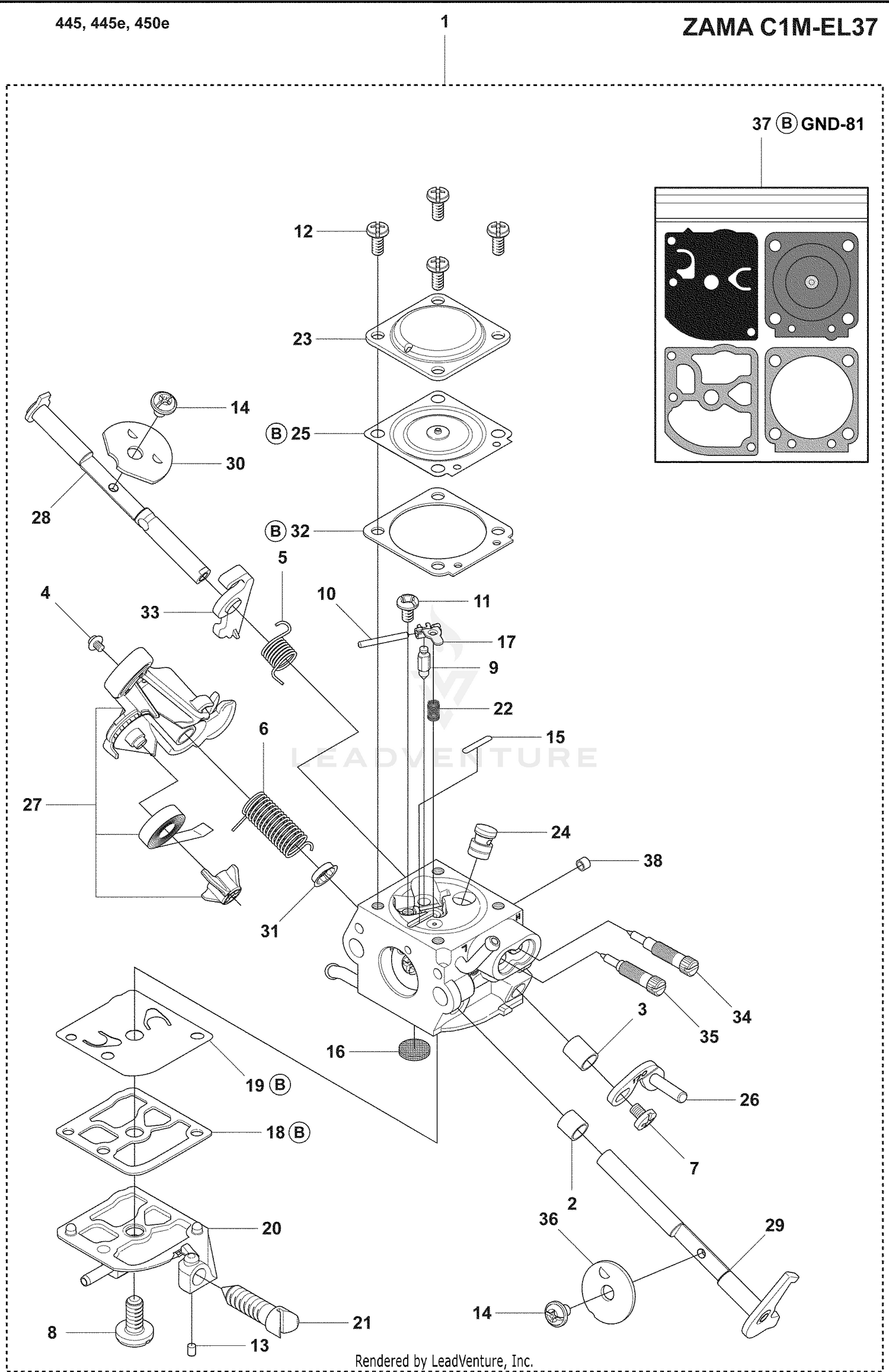

Carburetor Parts
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505453601 | CARBURETOR KIT (CARB & HOSE) This part replaces 544147801. Price: $119.99 |
| 2 | 502078201 | COLLAR Price: $2.99 |
| 3 | 502078301 | COLLAR Price: $4.99 |
| 4 | 502078401 | SCREW Price: $2.99 |
| 5 | 502078601 | SPRING Price: $3.99 |
| 6 | 502078701 | SPRING Price: $3.99 |
| 7 | 503479001 | SCREW Price: $2.99 |
| 8 | 503479601 | SCREW Price: $2.99 |
| 9 | 503479701 | INLET NEEDLE Price: $8.99 |
| 10 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 11 | 503480101 | SCREW Price: $2.99 |
| 12 | 503480501 | SCREW Price: $2.99 |
| 13 | 503481101 | PLUG Price: $3.99 |
| 14 | 503481801 | SCREW Price: $2.99 |
| 15 | 503535601 | PLUG Price: $3.99 |
| 16 | 503535701 | STRAINER Price: $3.99 |
| 17 | 503665901 | LEVER Price: $3.99 |
| 18 | 537020101 | GASKET Price: $3.99 |
| 19 | 537383101 | PUMP DIAPHRAGM Price: $11.99 |
| 20 | 502078901 | COVER Price: $22.99 |
| 21 | 537383301 | SCREW Price: $6.99 |
| 22 | 537383401 | SPRING Price: $3.99 |
| 23 | 537383701 | COVER Price: $11.99 |
| 24 | 544237701 | JET Price: $14.99 |
| 25 | 502079001 | DIAPHRAGM Price: $14.99 |
| 26 | 502079101 | LEVER Price: $19.99 |
| 27 | 505101701 | THROTTLE LEVER This part replaces 502079201. Price: $8.99 |
| 28 | 502079401 | SHAFT ASSY Price: $24.99 |
| 29 | 502079501 | SHAFT ASSY Price: $19.99 |
| 30 | 502247701 | CHOKE VALVE Price: $6.99 |
| 31 | 502079801 | COLLAR Price: $5.99 |
| 32 | 537383601 | GASKET Price: $4.99 |
| 33 | 502081701 | LEVER Price: $7.99 |
| 34 | 502079901 | SCREW Price: $14.99 |
| 35 | 502080001 | SCREW Price: $14.99 |
| 36 | 502080101 | VALVE Price: $8.99 |
| 37 | 502080201 | GASKET KIT Price: $17.99 |
