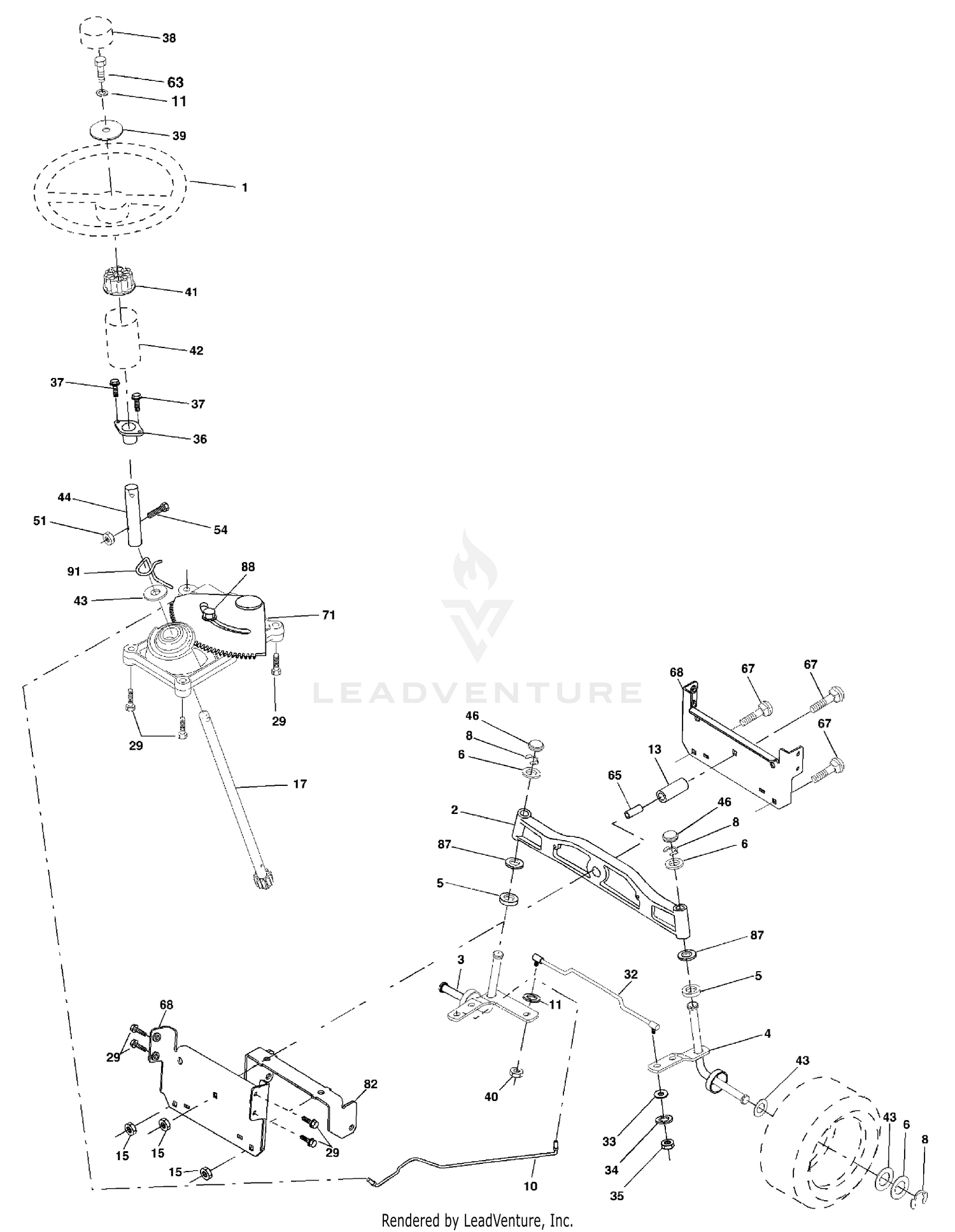

| Ref | Part Number | Description |
|---|
| 1 |
159944X428 |
Wheel Steering Price: Call Us |
| 1 |
99-1864 |
BOLT W/WASHER Price: $6.43 |
| 2 |
172393 |
Axle Asm Cast Iron LT Price: Call Us |
| 2 |
99-1861 |
CASE-GEAR, TIMING Price: $1,019.64 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 3 |
99-1862 |
GASKET-GEAR Price: $47.45 |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
99-1859 |
PLATE-FRONT Price: $320.66 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 5 |
99-1860 |
GASKET-PLATE, FRONT Price: $58.85 |
| 6 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 6 |
99-1868 |
GEAR-CAMSHAFT Price: $342.96 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 9 |
115-4144 |
GEAR KIT-INJ PUMP This part replaces 99-1869. Price: $782.71 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
99-1873 |
GEAR-PUMP, OIL Price: $306.38 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
99-1871 |
PLATE-THRUST Price: $19.69 |
| 12 |
99-1872 |
BOLT W/WASHER Price: $3.31 |
| 13 |
136518 |
Spacer Brg Axle Front Price: Call Us |
| 13 |
99-1810 |
BOLT W/WASHER Price: $2.19 |
| 14 |
99-1865 |
O-RING Price: $38.32 |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 15 |
99-1863 |
COVER-CASE, GEAR Price: $80.96 |
| 16 |
99-1866 |
BOLT W/WASHER Price: $9.96 |
| 17 |
177876 |
Shaft Asm Steering Price: Call Us |
| 17 |
99-1867 |
SEAL - OIL Price: $33.70 |
| 29 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 32 |
171888 |
Rod Tie Price: Call Us |
| 33 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga Price: Call Us |
| 34 |
10040500 |
Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us |
| 35 |
73540500 |
Crownlock Nut 5/16-24 Unf Price: Call Us |
| 36 |
155099 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
159946X428 |
Insert Cap Strg Wh Price: Call Us |
| 39 |
19132411 |
Washer 13/32 X 1-1/20 X 11 Ga Price: Call Us |
| 40 |
7810H |
Lock nut Price: Call Us |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Steering Dash Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
153720 |
Extension Steering Shaft LR/LT Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 51 |
73800500 |
Nut Lock Hex w/Ins 5/16-18 Price: Call Us |
| 54 |
74780520 |
Bolt Fin Hex 5/16-18 Unc x 1-1/4 Price: Call Us |
| 63 |
74780616 |
Bolt Fin Hex 3/8-16unc x 1 Gr. 5 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Rdhd Sq 3/8-16 Unc x 2-3/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 71 |
175146 |
Steering Asm Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1-1/2 x .14 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Unc Price: Call Us |
