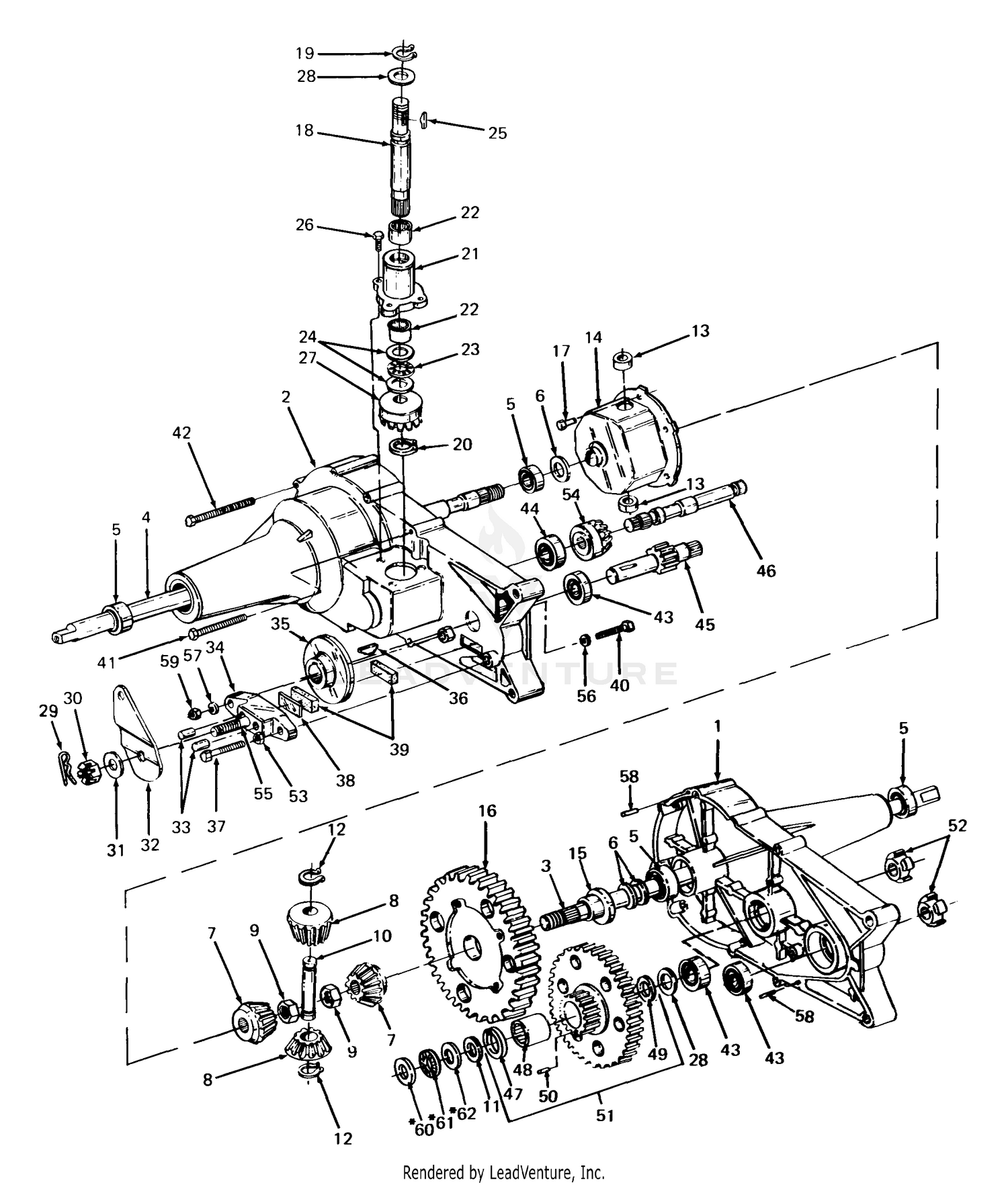

| Ref | Part Number | Description |
|---|
| 1 |
92-5705 |
THREAD-CAP Price: $279.47 |
| 1 |
AF-44077 |
HOUSING ASSEMBLY (LH) Not Available Price: |
| 2 |
92-5704 |
DISCONTINUED Price: Call Us |
| 2 |
HG-62586P |
HOUSING ASSEMBLY R/H Not Available This part replaces AF-44076. Price: |
| 3 |
AF-44085 |
AXLE (LH) Not Available Price: |
| 4 |
AF-44086 |
DIFFERENTI Not Available Price: |
| 5 |
92-5706 |
THREAD-HEAD, CAP Price: $235.69 |
| 5 |
HG-44121P |
BEARING BALL Not Available This part replaces AF-44121. Price: |
| 6 |
736-0351 |
Washer, Flat, .76 X 1.5 X .306 Thk Hdn Price: $3.93 |
| 7 |
917-1019 |
Splined Bore Miter Gear This part replaces 717-1019. Price: $25.67 |
| 8 |
717-1020 |
MITER GEAR Not Available Price: |
| 9 |
712-0200A |
Nut, Hex Jam Patch Lock, 1/2-20 Price: $3.85 |
| 11 |
92-5703 |
PISTON Price: $301.53 |
| 11 |
HG-44371 |
Flat Washer, 5/8 ID x 1.0 OD x .05 This part replaces AF-44371. Price: $13.59 |
| 12 |
88-3590 |
NUT-LOCK Price: $8.08 |
| 14 |
753-0546 |
DIFFERENTIAL KIT Not Available This part replaces 717-0777. Price: |
| 14 |
82-5740 |
NUT-JAM Price: $29.95 |
| 15 |
82-5730-01 |
END-ROD, TIE This part replaces 82-5730. Price: $310.82 |
| 15 |
941-0376 |
Bearing, Flange, .75" I.D. x .587" This part replaces 741-0376. Price: $7.63 |
| 16 |
32121-44 |
PIN-ROLL Price: $0.47 |
| 16 |
717-0767 |
DIFFERENTIAL GEAR Not Available Price: |
| 17 |
92-5708 |
SCREW-CAP, THREAD Price: $15.58 |
| 17 |
HG-44126 |
BOLT-TORX HD Not Available This part replaces AF-44126. Price: |
| 18 |
717-0634A |
Shaft, Input Price: $105.19 |
| 19 |
916-0115 |
SNAP RING FOR .625 DIA SHAFT Not Available This part replaces 716-0115. Price: |
| 20 |
716-0108 |
Ring, Retaining, Ext, 7/16 Dia Price: $4.53 |
| 21 |
AF-44081 |
Bearing, Input Housing Price: Call Us |
| 22 |
941-0335 |
NEEDLE BEARING This part replaces 741-0335. Price: $16.86 |
| 23 |
HG-44139P |
THRUST BEARING Not Available This part replaces AF-44139. Price: |
| 24 |
HG-44109 |
THRUST WASHER Not Available This part replaces AF-44109. Price: |
| 25 |
914-0129 |
KEY-HI-PRO #4-3/32X5/8 DIA Not Available This part replaces 714-0129. Price: |
| 26 |
AF-44122 |
SCREW, HEX PATCH LOCK, 1/4-20 0 x 3/4 LG. 3 Not Available Price: |
| 27 |
AF-44078 |
Gear, Input Pinion, 17 Tooth Price: Call Us |
| 28 |
HG-44371 |
Flat Washer, 5/8 ID x 1.0 OD x .05 This part replaces AF-44371. Price: $13.59 |
| 29 |
AF-44101 |
COTTER PIN Not Available Price: |
| 30 |
912-0273 |
Nut. Castle 5/16-24 This part replaces 712-0335. Price: $4.02 |
| 31 |
736-0371 |
Washer, Flat, .343 X .88 X .062 Thk Price: $3.94 |
| 32 |
AF-44094 |
ARM, BRAKE ACTUATOR Not Available Price: |
| 33 |
741-0343 |
Pin, Actuating, 5/16 Dia Price: $8.93 |
| 34 |
717-0679 |
YOKE Not Available Price: |
| 35 |
717-0677 |
BRAKE DISC Not Available Price: |
| 36 |
914-0161 |
Hi-Pro Key This part replaces 714-0161. Price: $3.82 |
| 37 |
710-3201 |
SCREW 1/4-20X1.5LG GR5 Not Available Price: |
| 38 |
917-0682 |
Plate. Puck This part replaces 717-0682. Price: $8.68 |
| 39 |
917-0678 |
Puck. Brake This part replaces 717-0678. Price: $6.87 |
| 40 |
AF-44277 |
SCREW, HEX CAP, 1/4-20 x 1.5 LG Not Available Price: |
| 41 |
AF-44123 |
SCREW HEX SELF-TAP, 1/4-20 x 2.0" LG. Not Available Price: |
| 42 |
AF-44124 |
SCREW, HEX SELF-TAP, 1/4-20 x 2.75 LG. Not Available Price: |
| 43 |
941-0155 |
Bearing This part replaces 741-0155. Price: $22.09 |
| 44 |
HG-44232P |
BEARING Not Available This part replaces AF-44232. Price: |
| 45 |
HG-44083P |
SHAFT-PINION Not Available This part replaces AF-44083. Price: |
| 46 |
HG-44080 |
DRIVE SHAFT Not Available This part replaces AF-44080. Price: |
| 47 |
HG-44343 |
BEARING-BRONZE THRUST Not Available This part replaces AF-44343. Price: |
| 48 |
941-0478 |
NEEDLE BEARING Not Available This part replaces AF-44342. Price: |
| 49 |
HG-44394 |
SEAL-GREASE Not Available This part replaces AF-44394. Price: |
| 50 |
AF-44346 |
DOWEL PIN 3/32" x 1/4 Not Available Price: |
| 51 |
HG-62760P |
GEAR ASSEMBLY- Not Available This part replaces AF-62760. Price: |
| 52 |
HG-44084P |
Coupling This part replaces AF-44084. Price: $15.37 |
| 53 |
912-0298 |
Jam Nut, 1/4-20 This part replaces 712-0298. Price: $5.38 |
| 54 |
AF-44079 |
GEAR, DRIVE PINION 17 TOOTH 1 Not Available Price: |
| 55 |
717-0796 |
BOLT Not Available Price: |
| 56 |
736-0176 |
Washer, Flat, .265 X .938 X .12 Thk Price: $3.95 |
| 57 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 58 |
AF-44269 |
PIN ROLL 3/16 DIA. Not Available Price: |
| 59 |
712-3006 |
HEX NUT Price: $4.05 |
