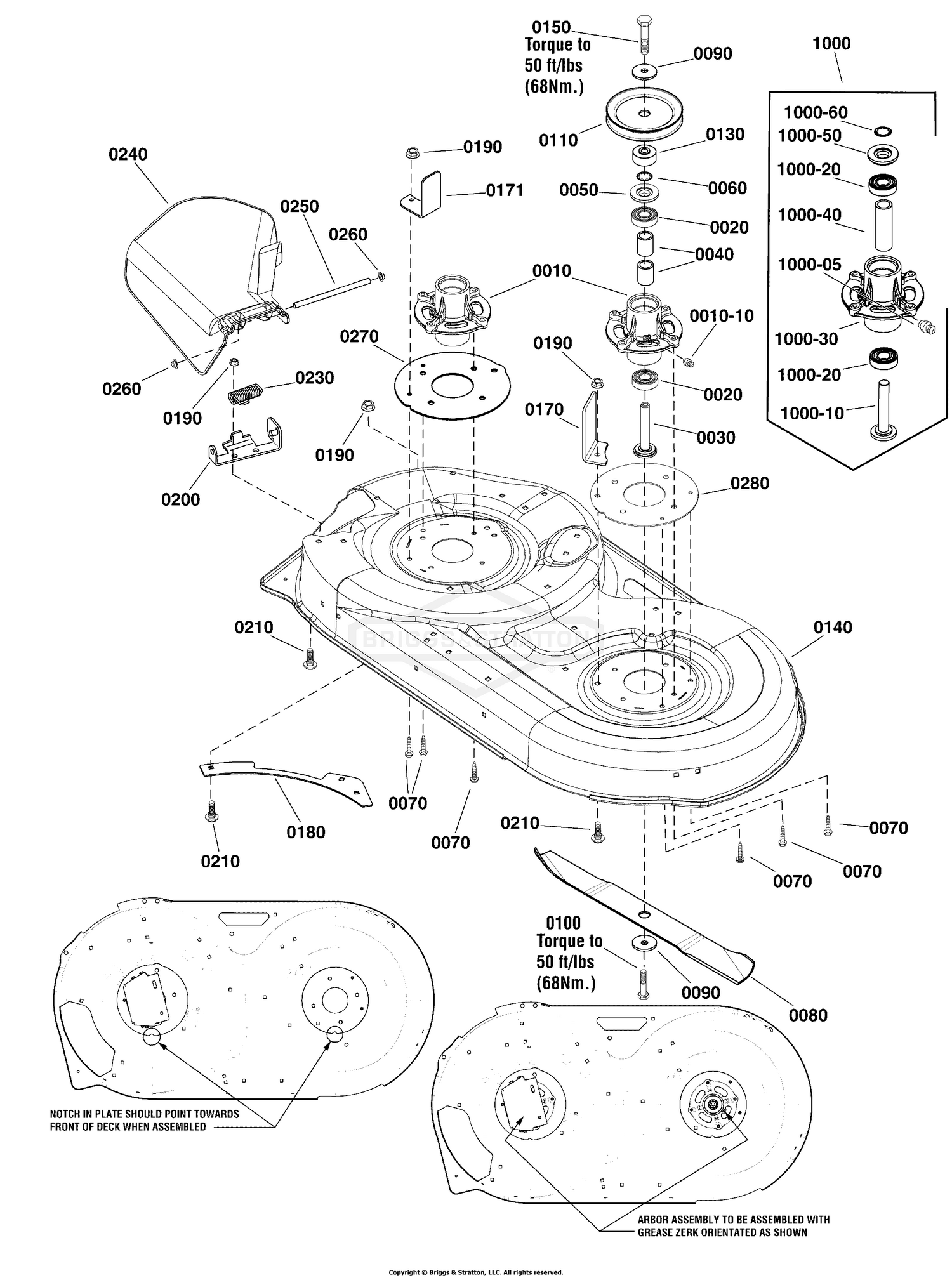

| Ref | Part Number | Description |
|---|
| 0010 |
1735573SM |
HOUSING, Spindle Price: Call Us |
| 0020 |
1735399YP |
BEARING, Ball, 20mm This part replaces 1735399SM. Price: $8.70 |
| 0040 |
84003166 |
COVER, ARBOR This part replaces 1735323SM. Price: $6.34 |
| 0060 |
1960766YP |
RING, SELF LOCKING This part replaces 1960766SM. Price: $3.82 |
| 0070 |
704146 |
SCREW, HEX, 5/16-18X1 This part replaces 1960373SM. Price: $3.40 |
| 0080 |
1737816BMYP |
BLADE, Mower 42" Price: $24.79 |
| 0090 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0100 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 Price: $4.70 |
| 0110 |
1737835YP |
PULLEY, 4.50 Price: $18.70 |
| 0130 |
1737457SM |
SPACER, Pulley Price: Call Us |
| 0140 |
1687779YP |
KIT, HOUSING, 42" This part replaces 1736504DYP. Price: $429.29 |
| 0140 |
1687780YP |
HOUSING, 42" Mower, Orange This part replaces 1736504CYP. Price: $486.84 |
| 0150 |
703171 |
HHCS This part replaces 1923027SM. Price: $3.50 |
| 0170 |
1737845ASM |
BRACKET, Upstop Price: Call Us |
| 0171 |
1757824BMYP |
BRACKET, Upstop Price: $14.03 |
| 0180 |
092426E701MA |
PLATE, Rear This part replaces 721083BM. Price: $9.32 |
| 0190 |
703409 |
NUT, 5/16-18, GR5 This part replaces 1931277SM. Price: $4.92 |
| 0200 |
094956E701MA |
BRACKET - HINGE This part replaces 721369BM. Price: $19.95 |
| 0210 |
703185 |
BOLT, Round Head, Short Square Neck This part replaces 1931333SM. Price: $2.87 |
| 0230 |
0166X4MA |
SPRING, Torsion Price: $6.00 |
| 0240 |
094707MA |
DEFLECTOR & SUPPORT ASSEMBLY, Chute Price: $100.93 |
| 0250 |
094957ZMA |
ROD, Deflector Price: $10.20 |
| 0260 |
703948 |
PUSHNUT, 3/8 This part replaces 1960093SM. Price: $3.82 |
| 0270 |
1750457BMYP |
PLATE, SPINDLE, RH Price: $25.76 |
| 0280 |
1750458BMYP |
PLATE, SPINDLE, LH Price: $25.76 |
| 1000 |
84003175 |
ARBOR ASSEMBLY Price: $93.65 |
