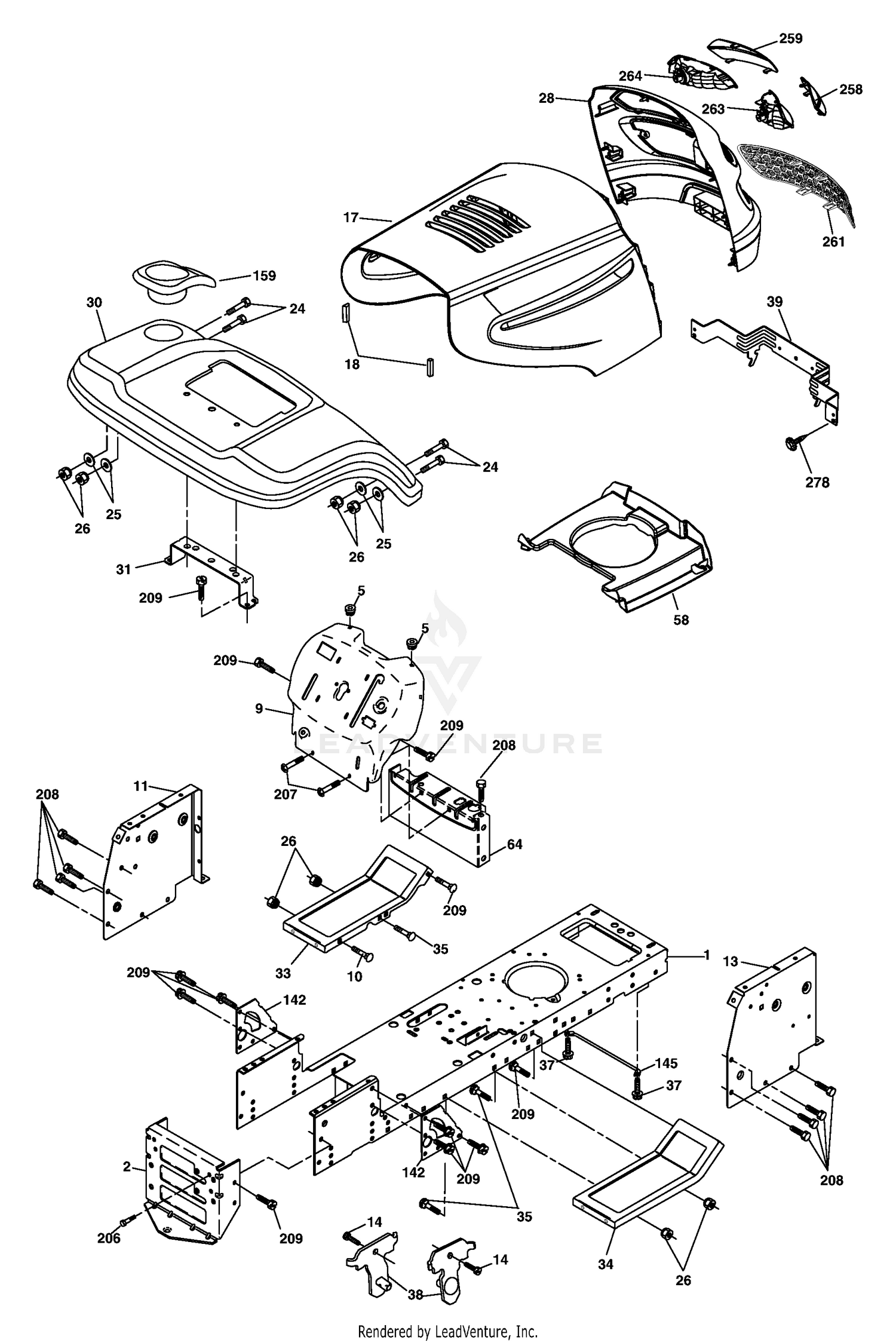

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 2 |
105-3331 |
SEAL-SHAFT This part replaces 94-3008. Price: $35.63 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 4 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 5 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 6 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 7 |
94-3004 |
SHAFT-DRIVE, SPLINED Price: $564.48 |
| 8 |
94-3002 |
SCREW-CAP Price: $7.19 |
| 9 |
193510X010 |
Dash P/L Price: Call Us |
| 9 |
76-6980 |
O-RING Price: $11.28 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 10 |
94-3009 |
PLUG Price: $34.97 |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 11 |
76-6980 |
O-RING Price: $11.28 |
| 13 |
179174X010 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 15 |
94-3003 |
PLATE-VALVE Price: $515.64 |
| 16 |
76-6910 |
ROTATING KIT Price: $2,143.15 |
| 17 |
183393X428 |
Hood Price: Call Us |
| 17 |
76-6970 |
INSERT-PLATE, CAM Price: $140.84 |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 18 |
95-2082 |
HOUSING Price: $857.38 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 30 |
192528X428 |
Fender Price: Call Us |
| 31 |
136619 |
Bracket Fender Price: Call Us |
| 33 |
179716X428 |
Footrest LH Price: Call Us |
| 34 |
179717X428 |
Footrest RH Price: Call Us |
| 35 |
72110606 |
Bolt RDHD SHT SQNK 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 58 |
184322 |
Duct Air Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
169473X428 |
Cupholder Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 258 |
183835X599 |
Lens Grille Pro RH Price: Call Us |
| 259 |
183834X599 |
Lens Grille Pro LH Price: Call Us |
| 261 |
183829X428 |
Insert Grille Price: Call Us |
| 263 |
183833 |
Bezel Grille RH Price: Call Us |
| 264 |
183832 |
Bezel Grille LH Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 5479J |
Plug |
BTN BlK Price: Call Us 5479J |
