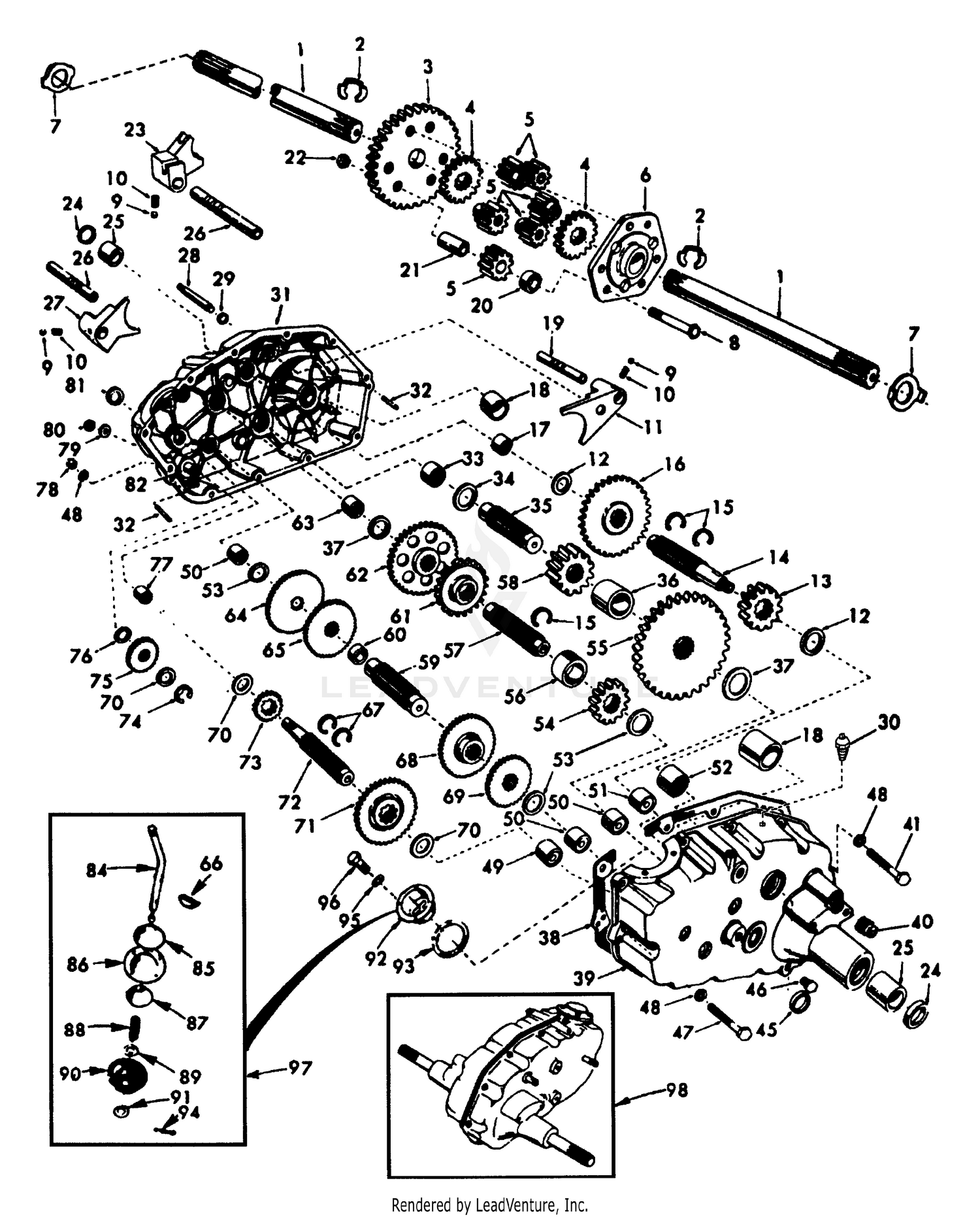

| Ref | Part Number | Description |
|---|
| 1 |
532004197 |
AXLE SHAFT This part replaces 532124662. Price: $80.32 |
| 2 |
812000034 |
Retaining Ring Price: $2.99 |
| 3 |
532184956 |
TRANSAXLE 6SP This part replaces 532004199. Price: $699.99 |
| 4 |
532004216 |
DIFF GEAR T Price: $8.99 |
| 5 |
532004215 |
DIFF PINION T Price: $7.99 |
| 6 |
532004217 |
DIFF CARRIER T Price: $23.99 |
| 7 |
532006256 |
WASHER This part replaces 532124674. Price: $2.42 |
| 8 |
874020652 |
Bolt, Hex Head 3/8-24 x 3-1/4 (1" Thread Length) Price: $4.99 |
| 9 |
532100482 |
KIT.STEEL BALL(12 BALLS) This part replaces 532124697. Price: $4.99 |
| 10 |
532145359 |
KIT.SPRING.GT/TIL This part replaces 532137261. Price: $2.99 |
| 11 |
532004985 |
NLA SHIFT FORK T Price: $17.99 |
| 12 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 13 |
532004212 |
PINION This part replaces 532124667. Price: $8.99 |
| 14 |
532004196 |
GEAR SHAFT This part replaces 532124661. Price: $68.34 |
| 15 |
532006276 |
SNAP RING This part replaces 532124677. Price: $5.54 |
| 16 |
532063363 |
GEAR This part replaces 532124679. Price: $54.99 |
| 17 |
532008118 |
BEARING T Price: $7.99 |
| 18 |
532008740 |
BEARING This part replaces 532124705. Price: $7.05 |
| 19 |
532122238 |
SHAFT Price: $8.99 |
| 20 |
532004218 |
SPACER T Price: $3.99 |
| 21 |
532006252 |
PINION This part replaces 532124673. Price: $5.99 |
| 22 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 23 |
532006262 |
FORK T Price: $28.99 |
| 24 |
532007393 |
OIL SEAL This part replaces 532124698. Price: $3.99 |
| 25 |
532000992 |
BEARING This part replaces 532124709. Price: $6.99 |
| 26 |
532006216 |
SHAFT This part replaces 532124672. Price: $10.85 |
| 27 |
532004986 |
SHIFT FORK T Price: $27.30 |
| 28 |
532122254 |
SHIFT SHAFT Price: $7.99 |
| 29 |
532006269 |
SEAL.OIL.SHAFT.SHIFT.T Price: $9.99 |
| 30 |
532005855 |
VALVE M Price: $4.99 |
| 32 |
532006277 |
PIN T Price: $2.99 |
| 33 |
532004225 |
NEEDLE BRNG T Price: $11.99 |
| 34 |
532007396 |
WASHER RACE BEARING THRUST Price: $3.99 |
| 35 |
532004198 |
GEAR SHAFT T Price: $32.99 |
| 36 |
532004200 |
SPACER, 4TH REDUCTION GEAR This part replaces 532124663. Price: $3.99 |
| 37 |
532007395 |
RACE T Price: $4.99 |
| 38 |
532121878 |
GASKET Price: $19.99 |
| 40 |
813320400 |
Pipe Plug 1/2-14 N.P.T. Price: $2.99 |
| 41 |
874780526 |
Bolt, Hex 5/16-18 UNC x 1-5/8 Price: $3.99 |
| 45 |
532006271 |
SEAL T Price: $4.99 |
| 46 |
813060200 |
PIPE PLUG Price: $2.99 |
| 47 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 48 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 49 |
532004895 |
BEARING This part replaces 532124792. Price: $9.99 |
| 50 |
532004222 |
NEEDLE BRNG T Price: $6.99 |
| 51 |
532001529 |
NEEDLE BRNG T Price: $7.99 |
| 52 |
532008119 |
BEARING STD Price: $17.99 |
| 53 |
532004220 |
BRNG RACE T Price: $4.99 |
| 54 |
532004209 |
RED PINION T Price: $7.04 |
| 55 |
532004213 |
GEAR This part replaces 532124668. Price: $44.99 |
| 56 |
532004442 |
PINION SPACER T Price: $2.99 |
| 57 |
532004195 |
GEAR SHAFT T Price: $37.99 |
| 58 |
532004214 |
FINAL PINION T Price: $14.99 |
| 59 |
532004194 |
GEAR SHAFT T Price: $27.99 |
| 60 |
532007528 |
SPACER T Price: $2.99 |
| 61 |
532004208 |
PINION This part replaces 532124666. Price: $13.99 |
| 62 |
532124665 |
RED GEAR T Price: $17.99 |
| 63 |
532007398 |
RACE T Price: $9.99 |
| 64 |
532004203 |
LOW SPEED GEAR This part replaces 532124664. Price: $22.99 |
| 65 |
532004204 |
GEAR.REVERSE.T Price: $15.99 |
| 66 |
532002898 |
KEY T Price: $2.42 |
| 67 |
532004926 |
RING STD (1 2) Price: $2.99 |
| 68 |
532004205 |
GEAR.SPEED.INTERMEDIATE.T/A Price: $16.93 |
| 69 |
583750601 |
GEAR.HIGH SPEED This part replaces 532125099. Price: $10.99 |
| 70 |
532001370 |
THRUST WASHER Price: $4.99 |
| 71 |
532063369 |
GEAR.CLUSTER.GT. This part replaces 532124681. Price: $32.99 |
| 72 |
532000208 |
INPUT SHAFT T Price: $84.99 |
| 73 |
532004201 |
LO SPEED PINION T Price: $21.99 |
| 74 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 75 |
532001153 |
IDLER GEAR T Price: $8.99 |
| 76 |
532124862 |
WASHER T Price: $4.99 |
| 77 |
532006803 |
NEEDLE BEARING TI Price: $7.99 |
| 78 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 79 |
532001167 |
WASHER T Price: $2.99 |
| 80 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $5.99 |
| 81 |
532006270 |
SEAL This part replaces 532124675. Price: $4.99 |
| 82 |
532007384 |
SHAFT This part replaces 532124696. Price: $29.65 |
| 84 |
532005384 |
GEAR SHIFT LVR T Price: $19.99 |
| 85 |
532002978 |
CAP T Price: $4.99 |
| 86 |
532063385 |
COVER This part replaces 532124682. Price: $8.99 |
| 87 |
532008739 |
GUIDE BALL This part replaces 532124704. Price: $22.99 |
| 88 |
532004924 |
SPRING TI Price: $5.99 |
| 89 |
594976501 |
Washers This part replaces 819151516. Price: $2.99 |
| 90 |
532110542 |
SEAL.SHIFT Price: $5.99 |
| 91 |
819181511 |
Washer 9/16 x 15/16 x 12 Gauge Price: $2.99 |
| 92 |
532000075 |
GEAR SHIFT GATE T Price: $3.99 |
| 93 |
532006274 |
GASKET T Price: $4.99 |
| 94 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 95 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 96 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 97 |
532124863 |
GEAR SHFT LVR T Price: $59.99 |
