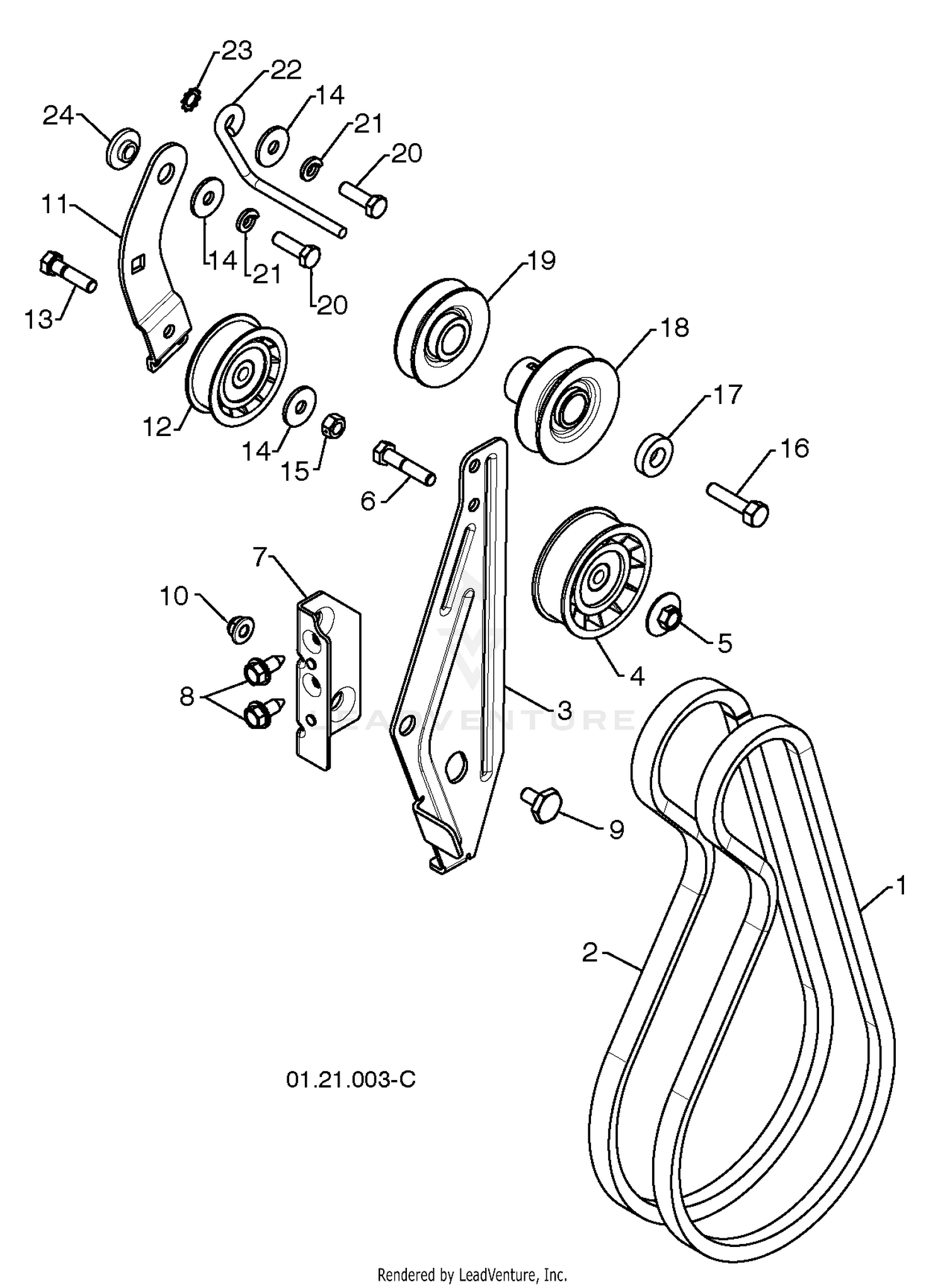

| Ref | Part Number | Description |
|---|
| 1 |
408007 |
IMPELLER BELT Price: Call Us |
| 2 |
105-8122 |
SEAL-BOOT Price: $19.70 |
| 2 |
419744 |
TRACTION BELT Price: Call Us |
| 3 |
423723X431 |
IDLER ARM BRACKET Price: Call Us |
| 4 |
105-8119 |
BEARING-CUP Price: $130.48 |
| 4 |
180523 |
IDLER PULLEY Price: Call Us |
| 5 |
105-8124 |
STUD-WHEEL Price: $7.84 |
| 5 |
426589 |
NUT 5/16-18 Price: Call Us |
| 6 |
105-8125 |
BOLT-HEAD, SOCKET Price: $6.53 |
| 6 |
74780524 |
SCREW 5/16-18 X 1 .50 Price: Call Us |
| 7 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 7 |
423990X431 |
IDLER BRACKET Price: Call Us |
| 8 |
428867 |
SCREW 5/16-18 X .625 Price: Call Us |
| 9 |
105-8121 |
PIN-DOWEL Price: $0.41 |
| 9 |
424297 |
SHOULDER BOLT 5/16-18 X .500 Price: Call Us |
| 10 |
105-8117 |
BEARING-CUP Price: $114.89 |
| 10 |
751153 |
NUT 5/16-18 NYLOCK Price: Call Us |
| 11 |
105-8118 |
BEARING-CONE Price: $87.73 |
| 11 |
187786 |
TRACTION IDLER ARM Price: Call Us |
| 12 |
105-8136 |
SHIM KIT Price: $177.70 |
| 12 |
180522 |
TRACTION PULLEY Price: Call Us |
| 13 |
105-8113 |
GEAR-RING Price: $633.38 |
| 13 |
74780520 |
SCREW 5/16-18 X 1 .00 Price: Call Us |
| 14 |
105-8132 |
RING-RETAINING Price: $16.29 |
| 14 |
59289 |
WASHER Price: Call Us |
| 15 |
237-78 |
O-RING Price: $3.85 |
| 15 |
73800500 |
NUT 5/16-18 Price: Call Us |
| 16 |
105-8133 |
PLUG-THRUST Price: $36.88 |
| 16 |
851084 |
SCREW 3/8-24 X 1.375 Price: Call Us |
| 17 |
105-8123 |
WASHER-THRUST Price: $20.15 |
| 17 |
400026 |
WASHER Price: Call Us |
| 18 |
105-8131 |
RING-RETAINING Price: $3.05 |
| 18 |
426491 |
PULLEY ENG IMPELLER Price: Call Us |
| 19 |
105-8114 |
GEAR-PRIMARY Price: $100.24 |
| 19 |
426490 |
PULLEY ENG TRACTION Price: Call Us |
| 20 |
105-8115 |
SHAFT-DRIVE Price: $134.40 |
| 20 |
74610516 |
SCREW 5/16-18 X 1 .00 Price: Call Us |
| 21 |
10040500 |
LOCKWASHER 5/16 Price: Call Us |
| 21 |
105-8129 |
CARRIER-PRIMARY Price: $691.83 |
| 22 |
105-8139 |
GEAR-SECONDARY Price: $146.04 |
| 22 |
155452 |
BELT GUIDE Price: Call Us |
| 23 |
11050500 |
LOCKWASHER 5/16 Price: Call Us |
