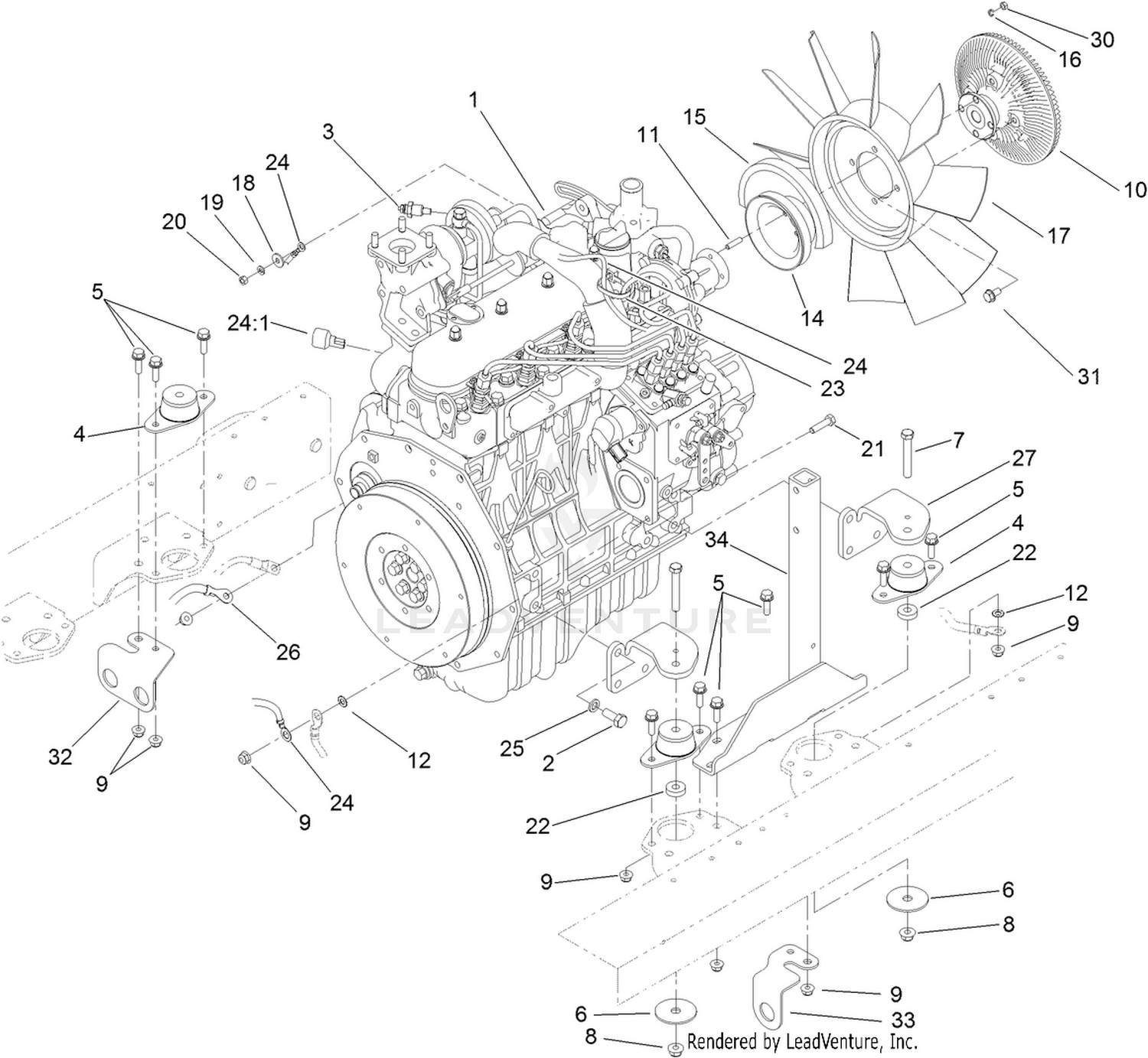

| Ref | Part Number | Description |
|---|
| 1 |
132-5209 |
ENGINE-KUBOTA, V1505T (SERVICE) This part replaces 110-9045. Price: $11,438.98 |
| 2 |
43-0090 |
SCREW-HH Price: $8.05 |
| 3 |
98-9346 |
SENDER-TEMPERATURE Price: $74.58 |
| 4 |
120-6274 |
MOUNT-ENGINE This part replaces 107-3640. Price: $30.17 |
| 5 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 6 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 7 |
323-12 |
SCREW-HH Price: $1.14 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 10 |
136-3817 |
FAN & SPACER ASM This part replaces 117-8972. Price: $277.06 |
| 11 |
104-5222 |
STUD Price: $7.53 |
| 12 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 14 |
110-0972 |
PULLEY Price: $55.10 |
| 15 |
98-9676 |
V-BELT Price: $31.01 |
| 16 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 17 |
74-3650 |
FAN Price: $269.64 |
| 18 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 19 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 20 |
48-7890 |
NUT-HEX Price: $0.25 |
| 21 |
322-6 |
SCREW-HH Price: $0.45 |
| 22 |
62-6660 |
SPACER Price: $0.79 |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 24 |
106-3615 |
HARNESS-WIRE, ENGINE Price: $226.04 |
| 25 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 26 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 27 |
115-8066-0P |
MOUNT-ENGINE This part replaces 115-8066-03. Price: $42.18 |
| 30 |
33013-00 |
NUT-HEX Price: $0.25 |
| 31 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 32 |
117-0154 |
BRACKET-4WD, RH Price: $13.87 |
| 33 |
117-0155 |
BRACKET-4WD, LH Price: $15.11 |
