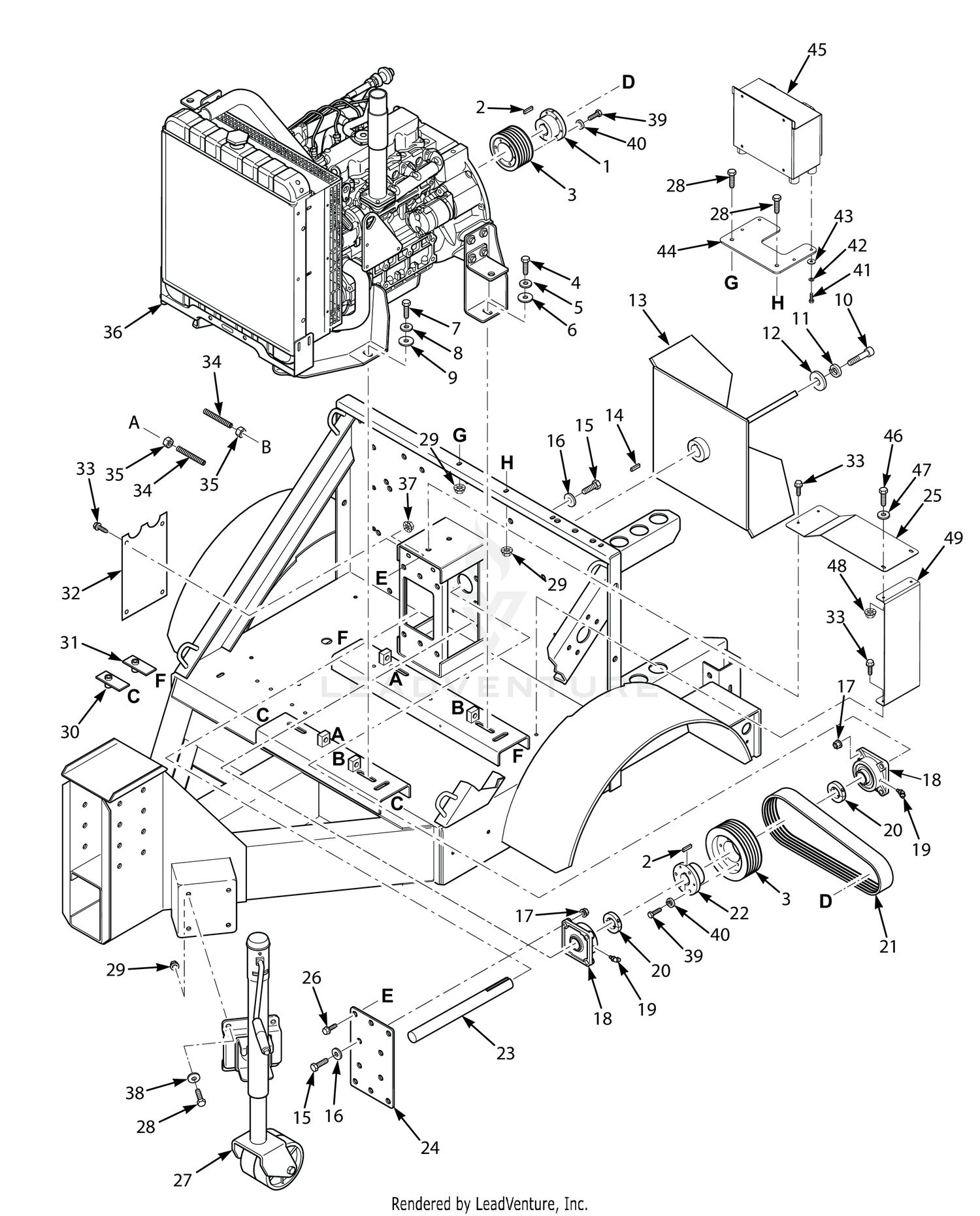

| Ref | Part Number | Description |
|---|
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED Price: $1,130.23 |
| 1 |
484992 |
Bushing, Tapered Lock SK 1-1/2" Price: Call Us |
| 2 |
04063-34 |
Key, 3/8 x 3/8 x 2-1/4" Price: Call Us |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 3 |
484991 |
Pulley, Sheave 3V6.5 x 5 SK Price: Call Us |
| 4 |
04001-131 |
Bolt, Hex Head, 5/8-11 x 1-3/4" Price: Call Us |
| 4 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 5 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 5 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 6 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 6 |
43-6810 |
SPIDER-TORQUE Price: $138.50 |
| 7 |
04001-183 |
Bolt, Hex Head 1/2-13 x 1-3/4" Price: Call Us |
| 7 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 8 |
04030-06 |
Lockwasher, 1/2" Spring Price: Call Us |
| 8 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 9 |
04043-08 |
Washer, Flat, 1/2-.562 x 1.375 x .109 HD Price: Call Us |
| 9 |
43-2690 |
SEE PB #747 Price: Call Us |
| 10 |
04015-23 |
SHCS, 5/8-18 x 2-1/2" Price: Call Us |
| 10 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 11 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 11 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 12 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 12 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 13 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 13 |
452445 |
Impeller, STL 4 Blade - 24-3/4" OD Price: Call Us |
| 14 |
04063-33 |
Key, 3/8 x 3/8 x 4-1/2" Price: Call Us |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 15 |
04001-183 |
Bolt, Hex Head 1/2-13 x 1-3/4" Price: Call Us |
| 15 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 16 |
04040-13 |
Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us |
| 16 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 17 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 17 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 18 |
484909 |
Bearing, Flange Mount Price: Call Us |
| 18 |
99-5694 |
NUT W/WASHER This part replaces 43-6800. Price: $3.86 |
| 19 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 19 |
48114-07 |
Grease Fitting Price: Call Us |
| 20 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 20 |
485096 |
Collar. 2 pc 1-7/16 Price: Call Us |
| 21 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 21 |
485069 |
Belt, R3V x 425-5 Price: Call Us |
| 22 |
484993 |
Bushing, Taper - SK 1-7/16" (incl. hardware) Price: Call Us |
| 23 |
43942 |
Shaft, Impeller Price: Call Us |
| 24 |
426424 |
Bearing Mount Plate Price: Call Us |
| 25 |
427997 |
Shield, Top Price: Call Us |
| 26 |
04017-36 |
Capscrew, 1/2-13 x 1" Serrated Flange Hex Head Price: Call Us |
| 27 |
484848 |
Jack, Trailer 2-Wheel Price: Call Us |
| 28 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 29 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 30 |
452533 |
Nut Plate Weldment, 1/2-13 Price: Call Us |
| 31 |
452532 |
Nut Plate Weldment, 5/8-11 Price: Call Us |
| 32 |
426402 |
Belt Cover, RH Diesel Price: Call Us |
| 33 |
04011-12 |
Screw, Hex Head 5/16-18 x 3/4" Self Tap Price: Call Us |
| 34 |
04012-13 |
SET SCREW, 1/2-13 X 4 HEX SOCK Price: Call Us |
| 35 |
04020-07 |
NUT, HEX #10-32 Price: Call Us |
| 37 |
04019-06 |
Nut, Hex Serrated Flange 1/2-13 Price: Call Us |
| 38 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 39 |
04001-218 |
CAPSCREW, HEXHEAD 7/16-14 X 1.50 Price: Call Us |
| 40 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 41 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 42 |
04030-02 |
Lockwasher, 1/4†Spring Price: Call Us |
| 43 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 44 |
427999 |
Mounting Bracket, Control Box Price: Call Us |
| 45 |
486685 |
Control Panel Price: Call Us |
| 46 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 47 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 48 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
