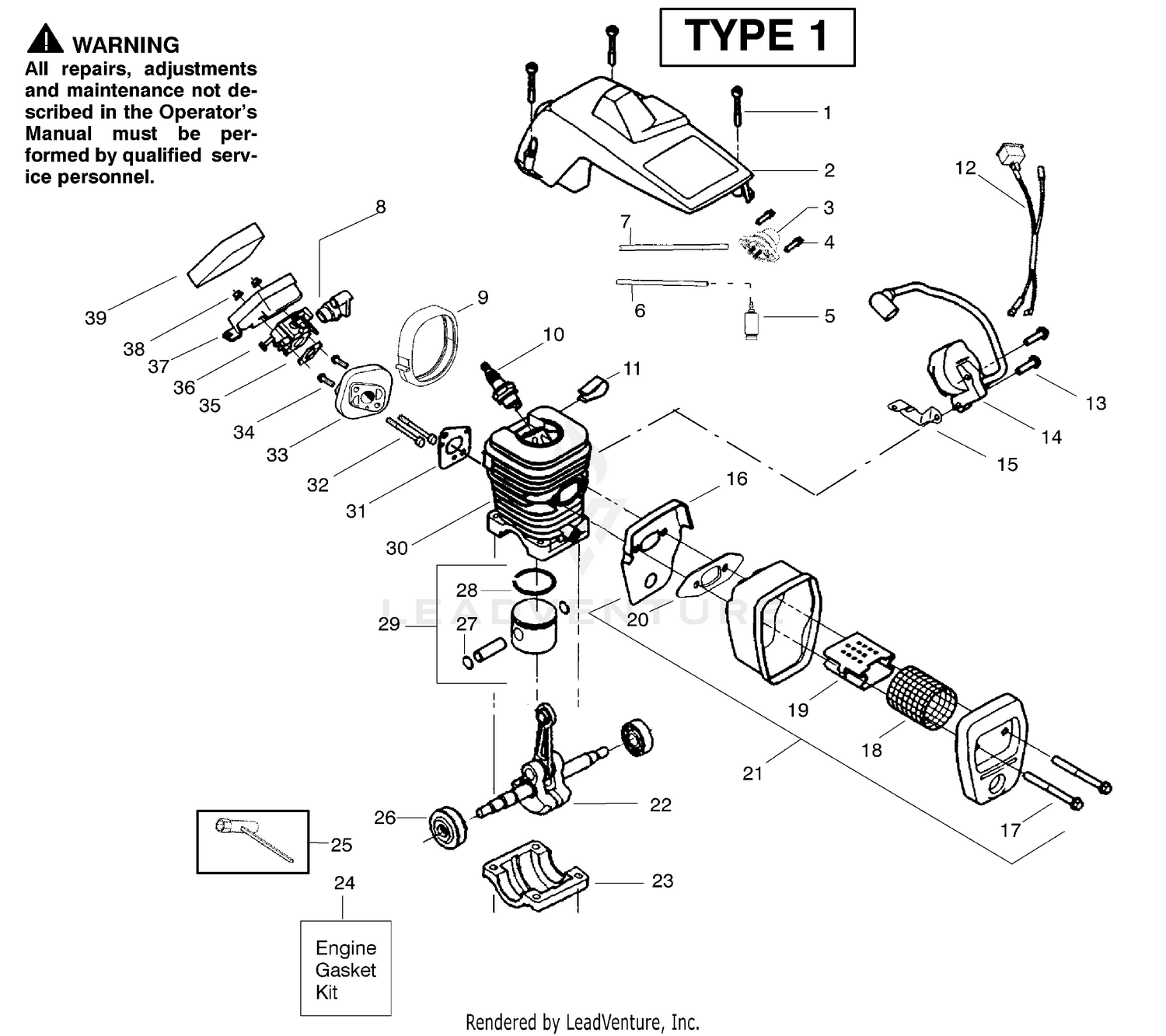

Engine Assembly Type 1
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530016153 | Screw Price: $1.99 |
| 1 | ZBH1L070U | HEX HD.BOLT M12*70 Price: $1.31 |
| 2 | 530055638 | Shield-Cylinder Price: $6.99 |
| 2 | HY09485 | WASHER M12 PLAIN Price: $1.40 |
| 3 | 09650 | NUT Price: $1.40 |
| 3 | 530071835 | Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 4 | 530015780 | Screw Price: $1.99 |
| 5 | 530095646 | Assy-Fuel Pick-Up Price: $2.99 |
| 8 | 111-7460 | PLATE-SPREADER Price: $26.18 |
| 8 | 530035526 | Grommet-Carb Adjust. Price: Call Us |
| 9 | 530054144 | Seal-Carb Adapter Price: $2.99 |
| 11 | 530016136 | Clip-High Tension Lead Price: $1.99 |
| 13 | 530015814 | Screw Price: $1.99 |
| 14 | 530039198 | Module-Ignition Price: $29.99 |
| 15 | 530047442 | Strap-Ground Price: $1.99 |
| 16 | 530049870 | Back Plate-Muffler Price: $3.99 |
| 17 | 530016132 | Screw Price: $1.99 |
| 18 | 530036103 | Screen-Spark Price: Call Us |
| 19 | 530037813 | Diffuser-Muffler Price: $1.99 |
| 22 | 545113101 | CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 23 | 530037935 | Cap-Crankcase Price: $8.99 |
| 25 | 530031163 | Scrench Price: $4.99 |
| 26 | 530056363 | Assy-Seal & Bearing Price: $11.99 |
| 27 | 530015697 | Retainer - Piston Pin Price: $1.99 |
| 28 | 545160401 | Ring-Piston This part replaces 530038729. Price: $2.99 |
| 30 | 530012550 | Cylinder Price: $17.99 |
| 32 | 530016187 | Screw Price: $1.99 |
| 33 | 530049700 | Adapter-Carb. Price: $3.99 |
| 34 | 530016386 | Screw Price: $5.99 |
| 37 | 530047604 | Housing-Air Filter Price: $1.99 |
| 38 | 530016101 | Nut Price: $1.99 |
| 39 | 530037793 | Air Filter - Foam Price: $1.99 |
