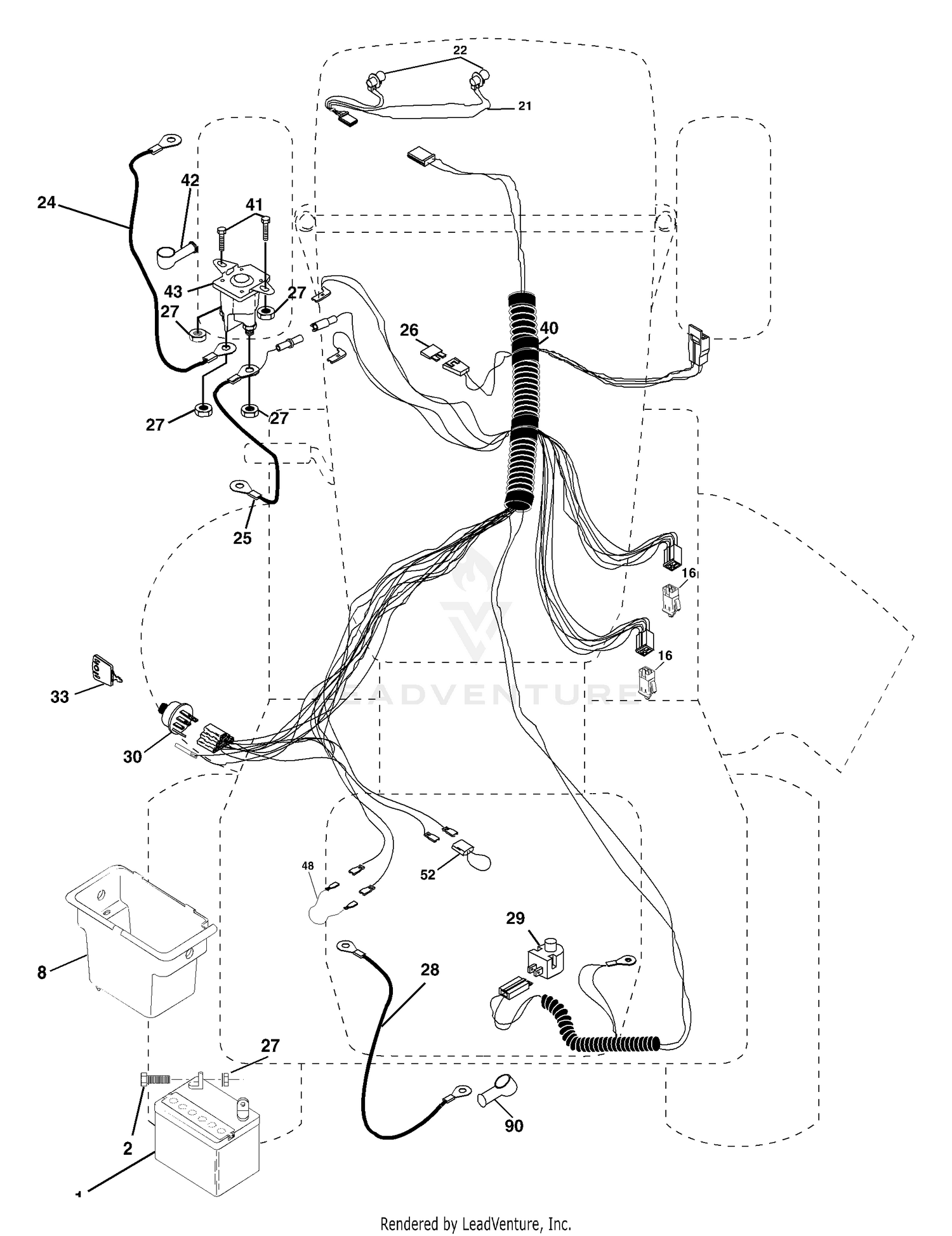

| Ref | Part Number | Description |
|---|
| 1 |
163465 |
Battery Price: Call Us |
| 2 |
74760412 |
Bolt, Hex Head 1/4-20 unc x 3/4 Price: Call Us |
| 8 |
176689 |
Box Battery Fender Price: Call Us |
| 10 |
98-7693 |
ALTERNATOR ASM Price: $511.95 |
| 16 |
176138 |
Switch, Interlock Price: Call Us |
| 20 |
98-7707 |
PULLEY-ALTERNATOR Price: $64.31 |
| 22 |
4152J |
Bulb, Light Price: Call Us |
| 24 |
4799J |
Cable, Battery, 6 Gauge, Red, 11" Price: Call Us |
| 25 |
146147 |
Cable, Battery, 6 Gauge, Red, W/16 Wire Price: Call Us |
| 26 |
175158 |
Fuse Price: Call Us |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 UNC Price: Call Us |
| 28 |
4207J |
Cable, Ground, 6 Gauge, Black, 12" Price: Call Us |
| 29 |
121305X |
Switch, Plunger Price: Call Us |
| 30 |
175566 |
Switch, Ignition Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 33 |
140401 |
Key, Ignition Price: Call Us |
| 40 |
179720 |
Harness, Ignition Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
71110408 |
Bolt, Hex Head, Fin. 1/4-20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover, Terminal, Red Price: Call Us |
| 43 |
178861 |
Solenoid Price: Call Us |
| 48 |
140844 |
Adaptor Ammeter Rectangular Price: Call Us |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 52 |
141940 |
Protection Wire Loop Price: Call Us |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 140 |
98-7719 |
FRAME-END Price: $88.65 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
