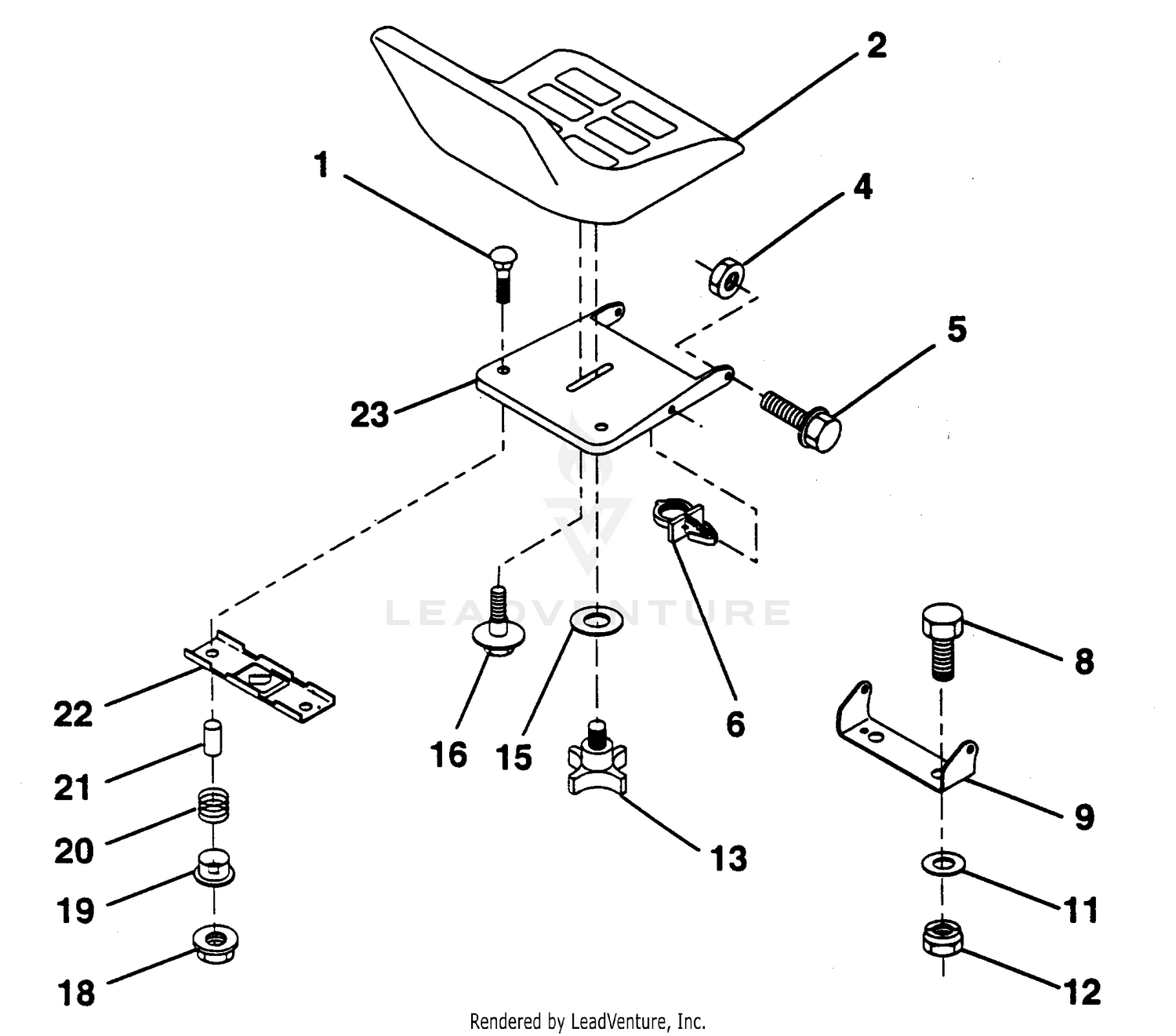

| Ref | Part Number | Description |
|---|
| 1 |
872050411 |
Bolt, Carriage 1/4-20 x 1-3/8 Price: $2.99 |
| 1 |
92-5096 |
JOINT AND SHAFT ASM Price: $742.35 |
| 2 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532127428. Price: $142.99 |
| 2 |
72-3431 |
YOKE AND TUBE ASM Price: $413.85 |
| 4 |
873800500 |
Nut Lock Hex W/Ins 5/16-18 Price: $2.69 |
| 5 |
532139888 |
Bolt, Shoulder 5/16-18 UNC Price: $2.99 |
| 6 |
532140407 |
Clip, Insulated Price: $3.99 |
| 8 |
874780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 This part replaces 874760616. Price: $3.99 |
| 9 |
532140551 |
Bracket, Pivot, Seat Price: $3.99 |
| 11 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 12 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 13 |
532166369 |
Knob Seat Adj. Wingnut This part replaces 532120068. Price: $4.99 |
| 15 |
819171912 |
Washer 17/32 x 1-3/16 x 12 Gauge Price: $3.99 |
| 16 |
532127018 |
Bolt, Shoulder Price: $3.99 |
| 18 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 19 |
532121248 |
Bushing, Snap Price: $3.99 |
| 20 |
532121250 |
Spring, Compression Price: $3.99 |
| 21 |
532134300 |
Spacer, Split, Large .28 ld. x .96 Price: $3.99 |
| 22 |
532174648 |
Bracket Mounting Switch This part replaces 532121246. Price: $4.99 |
