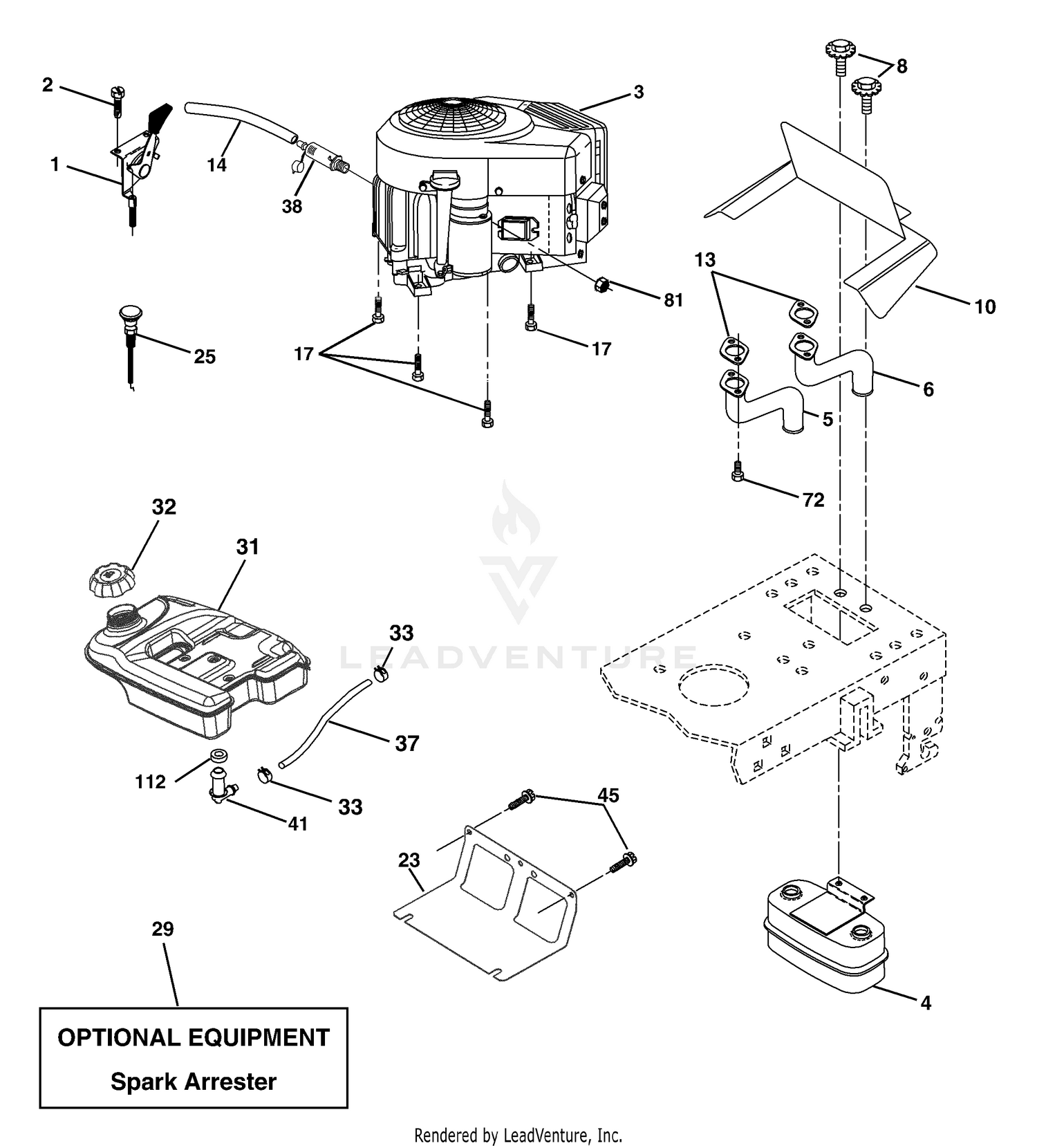

| Ref | Part Number | Description |
|---|
| 1 |
52-2930 |
BOLT-SHOULDER Price: $22.99 |
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 2 |
3220-6 |
NUT-JAM Price: $1.25 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
52-2860 |
WASHER Price: $0.84 |
| 4 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 5 |
66-7240 |
SCREW-PIVOT Price: $23.00 |
| 6 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 7 |
77-0330 |
HOUSING-PIVOT Price: $55.40 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
77-0350 |
WASHER-THRUST, NYLON Price: $1.42 |
| 10 |
257-5 |
WASHER-THRUST Price: $1.83 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532162797. Price: $11.99 |
| 11 |
66-7220 |
ARM-SPRING Price: $17.78 |
| 12 |
77-0300-01 |
HANDLE ASM This part replaces 77-0300. Price: $72.03 |
| 13 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 14 |
324-25 |
SCREW-HH Price: $9.84 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 16 |
302-18 |
FITTING-GREASE Price: $3.46 |
| 17 |
107-7409 |
PIN-PIVOT, BEDBAR This part replaces 57-5260. Price: $33.41 |
| 17 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 18 |
52-2890 |
BUSHING-NYLON Price: $2.49 |
| 19 |
62-5510 |
BUSHING-RUBBER Price: $7.42 |
| 20 |
57-4940-01 |
BEDBAR This part replaces 57-4940. Price: $287.88 |
| 21 |
119-4153 |
RUBBER BUSHING ASM This part replaces 63-9510. Price: $6.66 |
| 22 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 23 |
93-4263 |
BEDKNIFE-TOURNAMENT CUT This part replaces 63-8560. Price: $62.54 |
| 24 |
52-2910 |
BOLT-ECCENTRIC Price: $43.15 |
| 25 |
532145996 |
CONTROL, CHOKE Price: $19.99 |
| 25 |
66-7230 |
SPRING-COMPRESSION Price: $9.25 |
| 26 |
77-0490 |
DECAL-BOLT, ECCENTRIC Price: $2.31 |
| 26 |
873920600 |
Nut Keps 3/8-24 unf Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 72 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
