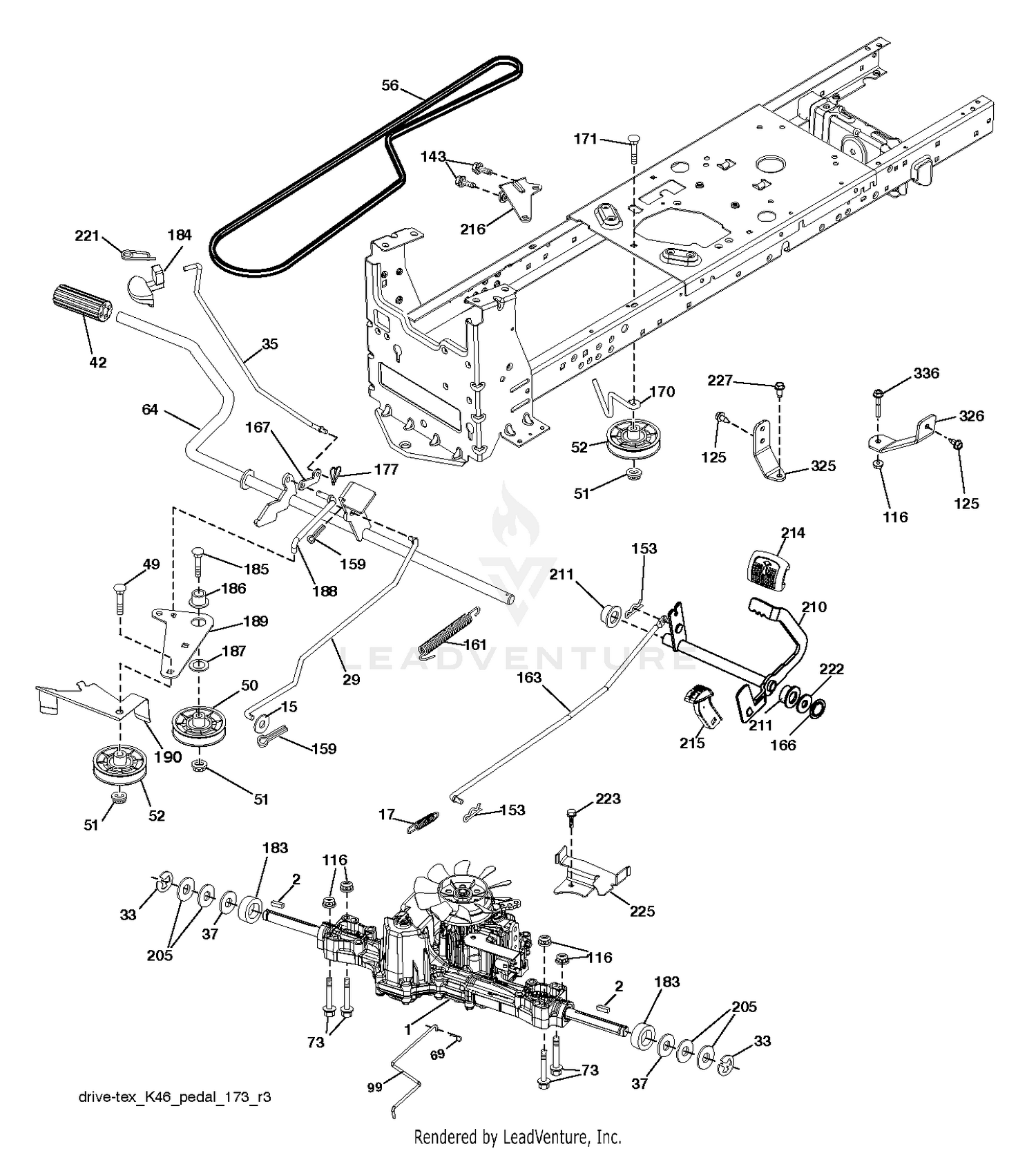

| Ref | Part Number | Description |
|---|
| 1 |
115-0120-03 |
PEDAL-BRAKE Price: $158.58 |
| 2 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
104-7179 |
PIVOT-PEDAL Price: $43.97 |
| 4 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 5 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 6 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 9 |
115-0129 |
ROD-PAWL, BRAKE Price: $29.11 |
| 10 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 13 |
99-7214 |
PAWL-BRAKE Price: $28.35 |
| 14 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 15 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 16 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 17 |
323-12 |
SCREW-HH Price: $1.14 |
| 17 |
501487101 |
SPRING.BRAKE.VARIATOR Price: $4.99 |
| 18 |
117-0238 |
DETENT Price: $11.85 |
| 19 |
5-0652 |
SPACER Price: $5.35 |
| 20 |
283-14 |
PIN-CLEVIS Price: $2.92 |
| 21 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
117-0106 |
CABLE-BRAKE, RH Price: $117.67 |
| 23 |
117-0107 |
CABLE-BRAKE, LH Price: $113.33 |
| 24 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 25 |
110-8982 |
WASHER-SPRING Price: $2.71 |
| 26 |
115-8060 |
CLEVIS-DOUBLE Price: $15.64 |
| 27 |
115-8059 |
YOKE-CABLE Price: $11.28 |
| 29 |
584823102 |
ROD.BRAKE.VARIATOR.SD3.X431 This part replaces 584823101. Price: $9.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
590605902 |
ROD ROD.PARKINGBRAKE.GT.HUSQ/P Price: $7.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532008883. Price: $4.99 |
| 49 |
596136201 |
Bolts Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts Price: $27.99 |
| 64 |
589671401 |
SHAFT VARIATOR PEDAL CROSS Price: $49.99 |
| 69 |
583404901 |
HAIRPIN.SOFT.ZINC.059X1.125 This part replaces 532423303. Price: $2.99 |
| 73 |
596136501 |
Bolts Price: $3.99 |
| 99 |
582404501 |
ARM.PIVOTING.TCRD.GEN2.5.BAGGE Price: $5.99 |
| 116 |
596135701 |
GSPW Nuts Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws Price: $2.99 |
| 153 |
532004497 |
RETAINER M Price: $4.99 |
| 159 |
596029501 |
Pins Price: $2.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts Price: $2.99 |
| 177 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 210 |
588921002 |
WELDMENT.PEDAL.VARIATOR.X431 Price: $39.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
586606502 |
PEDAL.COVER.REVERSE.CRD.X428BK Price: $17.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 223 |
598662601 |
BOLTS Price: $1.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 227 |
596135901 |
Bolts Price: $1.99 |
| 325 |
585668505 |
BRACKET TORQUE STRAP This part replaces 585668502. Price: $5.99 |
| 326 |
585670803 |
BRACKET TORQUE STRAP This part replaces 585670802. Price: $4.99 |
| 336 |
587259602 |
Bolts Price: $3.99 |
