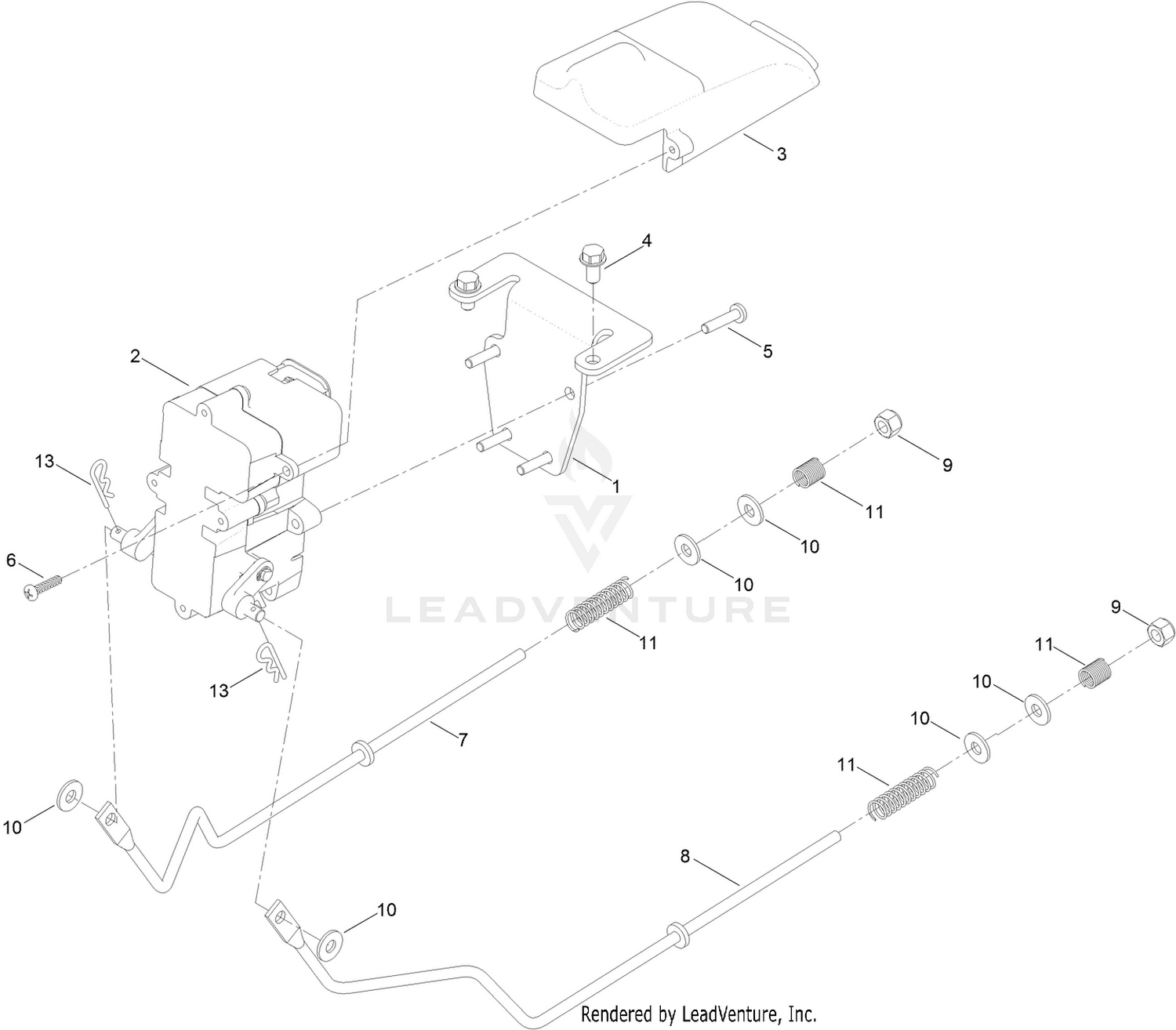

Brake Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130-0790-03 | BRACKET-MOUNT, BRAKE Price: $6.40 |
| 2 | 136-4213 | BRAKE BOX ASM This part replaces 132-0935. Price: $88.03 |
| 3 | 132-6949 | COVER-CONNECTOR Price: $9.05 |
| 4 | 32144-4 | SCREW-HWH Price: $1.29 |
| 5 | 32144-36 | SCREW-PPH Price: $0.99 |
| 6 | 94-4496 | SCREW-PPH Price: $0.89 |
| 7 | 121-2974 | ROD-BRAKE, RH Price: $7.72 |
| 8 | 121-2975 | ROD-BRAKE, LH Price: $7.72 |
| 9 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 10 | 119-8952 | WASHER Price: $0.77 |
| 11 | 117-1169 | SPRING-COMPRESSION Price: $1.57 |
