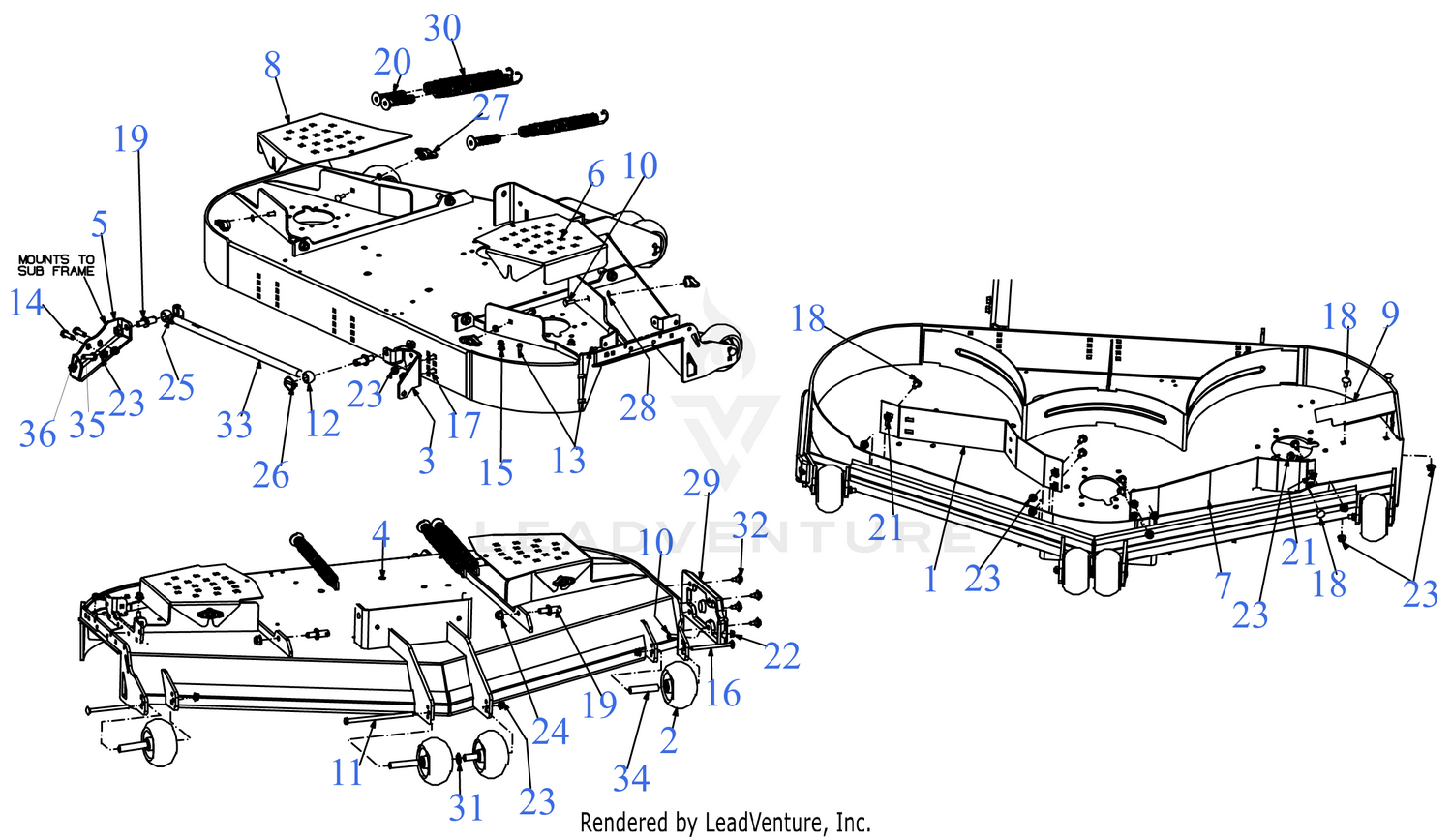

| Ref | Part Number | Description |
|---|
| 1 |
02005694-0637 |
BAFFLE - 60" ADJ Price: $49.67 |
| 10 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 11 |
710-04692 |
SCREW 3/8-16 x 7.25 GR5 Price: $8.15 |
| 12 |
710-05355 |
BOLT 5/8-16 x 2.63 Price: $15.64 |
| 13 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 14 |
710-06012A |
SCREW 3/8-16 x 1.25 GR5 Price: $3.42 |
| 15 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 16 |
710-1649 |
CARRIAGE BOLT 3/8-16 x 4.25 GR5 Price: $15.07 |
| 17 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 18 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 19 |
711-05604 |
PIN Price: $9.67 |
| 20 |
711-06667 |
SPRING INSERT SCREW Price: $35.01 |
| 21 |
712-0229 |
PUSH NUT Price: $3.14 |
| 22 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 23 |
712-04065 |
NUT Price: $3.68 |
| 24 |
712-04150 |
NUT Price: $3.74 |
| 25 |
712-3015 |
Nut, 5/8 Jam Type 5 This part replaces 912-3015. Price: $4.02 |
| 26 |
753-04070 |
LYNCH PIN .1875 Price: $8.64 |
| 27 |
720-04122 |
WING KNOB 5/16-18 Price: $5.87 |
| 28 |
726-0201 |
PUSH NUT Price: $6.01 |
| 29 |
731-11926 |
DECK SKID PLATE (LH) Price: $44.26 |
| 30 |
732-05476 |
EXTENTION SPRING 1.20 x 11.35 Price: $30.40 |
| 31 |
736-04296 |
FLAT WASHER .632X1.00X.16 Price: $2.83 |
| 32 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 34 |
750-3193 |
WHEEL SPACER .38ID x 3.04LG Price: $16.22 |
| 35 |
710-06749 |
HEX HEAD BOLT (3/8-16:1.50 GR8) Price: $5.95 |
