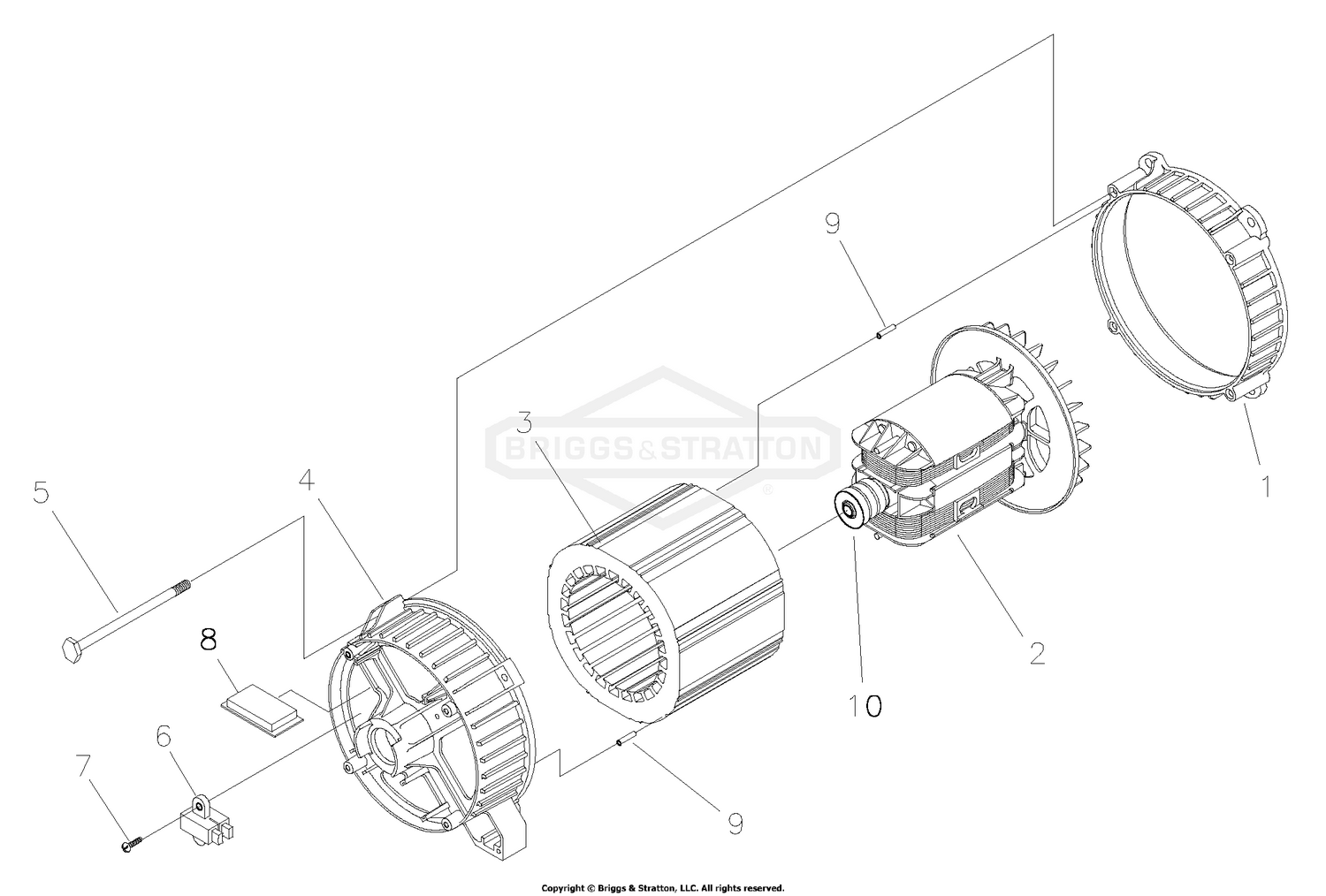

Alternator (200834)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 209599GS | ADAPTER, Alternator This part replaces 186059GS. Price: $33.00 |
| 3 | 198498AGS | STATOR Price: $474.99 |
| 4 | 193336GS | RBC, (with O-Ring p/n 189197GS) Price: $36.50 |
| 5 | 86308KGS | HHCS, M6 - 1.0 x 140 SEMS Price: $6.41 |
| 6 | 66386GS | ASSY, Holder, Brush Price: $21.52 |
| 7 | 49815GS | HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 8 | 205858GS | BOARD, Circuit, System Control This part replaces 189769GS. Price: $98.29 |
| 9 | 81917GS | PIN, Roll, 4mm x 10 Price: $2.79 |
