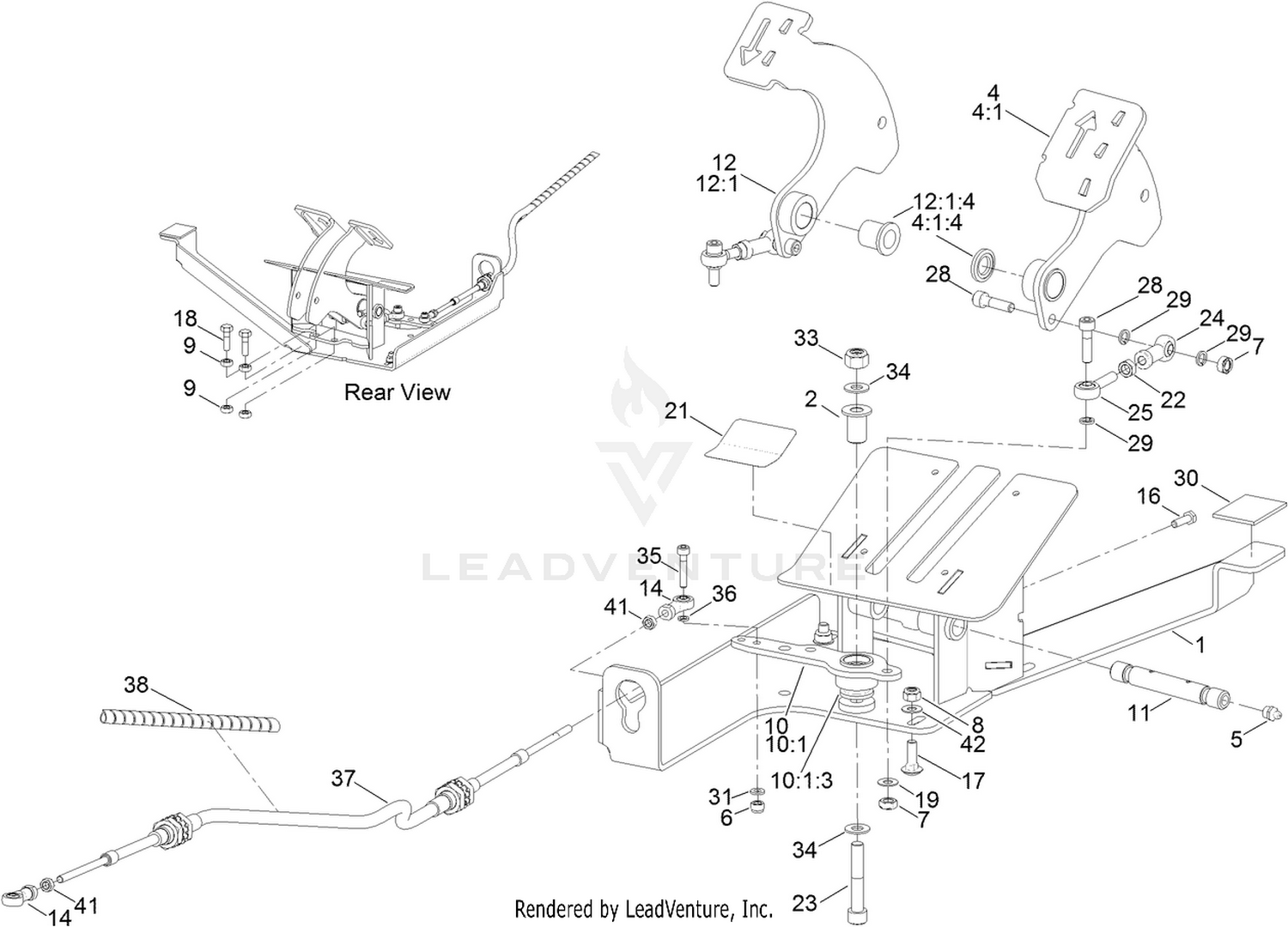

| Ref | Part Number | Description |
|---|
| 1 |
111-6150-03 |
PEDAL BASE ASM Price: $192.16 |
| 2 |
111-6494 |
BUSHING-SPACER Price: $14.87 |
| 4 |
111-6278-03 |
FORWARD PEDAL ASM Price: $56.55 |
| 5 |
10-11-017 |
GREASE NIPPLE 1/8BSP STR Price: $1.44 |
| 6 |
09544 |
NUT M6 NYL INS GD 8 Price: $1.34 |
| 7 |
ZNB1H000U |
NUT Price: $1.42 |
| 8 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 9 |
09449 |
NUT M10 PLAIN Price: $1.34 |
| 10 |
111-6148-03 |
PEDAL LEVER ASM Price: $30.67 |
| 11 |
111-1310 |
PIN - CONTROL PEDAL Price: $30.98 |
| 12 |
111-6277-03 |
REVERSE PEDAL ASM Price: $58.48 |
| 14 |
111-4579 |
ROD END-FEMALE/FEMALE Price: $36.04 |
| 16 |
09363 |
SETSCREW M6 X 20 Price: $1.31 |
| 17 |
09373 |
BOLT COACH M8 X 25 PLATED Price: $1.30 |
| 18 |
ZDH1J035U |
HEX.HD.SET SCW.M10 * 35LG Price: $1.38 |
| 19 |
09475 |
WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40 |
| 21 |
111-3567 |
DECAL PEDAL OPERATION Price: $21.25 |
| 22 |
ZNH1H000U |
HEX.NUT M8 Price: $1.40 |
| 23 |
111-6757 |
SCREW-HD Price: $1.42 |
| 24 |
111-2896 |
ROD END-FEMALE Price: $20.36 |
| 25 |
111-6147 |
ROD END Price: $20.36 |
| 28 |
ZCS1H030U |
SCREW-CAP Price: $1.38 |
| 29 |
111-6948 |
WASHER-SPRING Price: $1.47 |
| 30 |
HY910808 |
STRIP - NEOPRENE Price: $15.11 |
| 31 |
09472 |
WASHER-PLAIN Price: $1.25 |
| 33 |
09447 |
NUT M10 X 1.5 NYL INS Price: $1.40 |
| 34 |
09479 |
WASHER M10 X 21 X 1.45 THK (P) Price: $1.39 |
| 35 |
111-4586 |
SCREW-HSH Price: $1.40 |
| 36 |
09474 |
WASHER M6 SC SPRING Price: $1.34 |
| 37 |
111-7140 |
CABLE-TRANSMISSION This part replaces 111-6282. Price: $125.98 |
| 38 |
111-6133 |
GUARD-SPIRAL Price: $13.02 |
| 41 |
09437 |
NUT M6 PLAIN Price: $1.40 |
