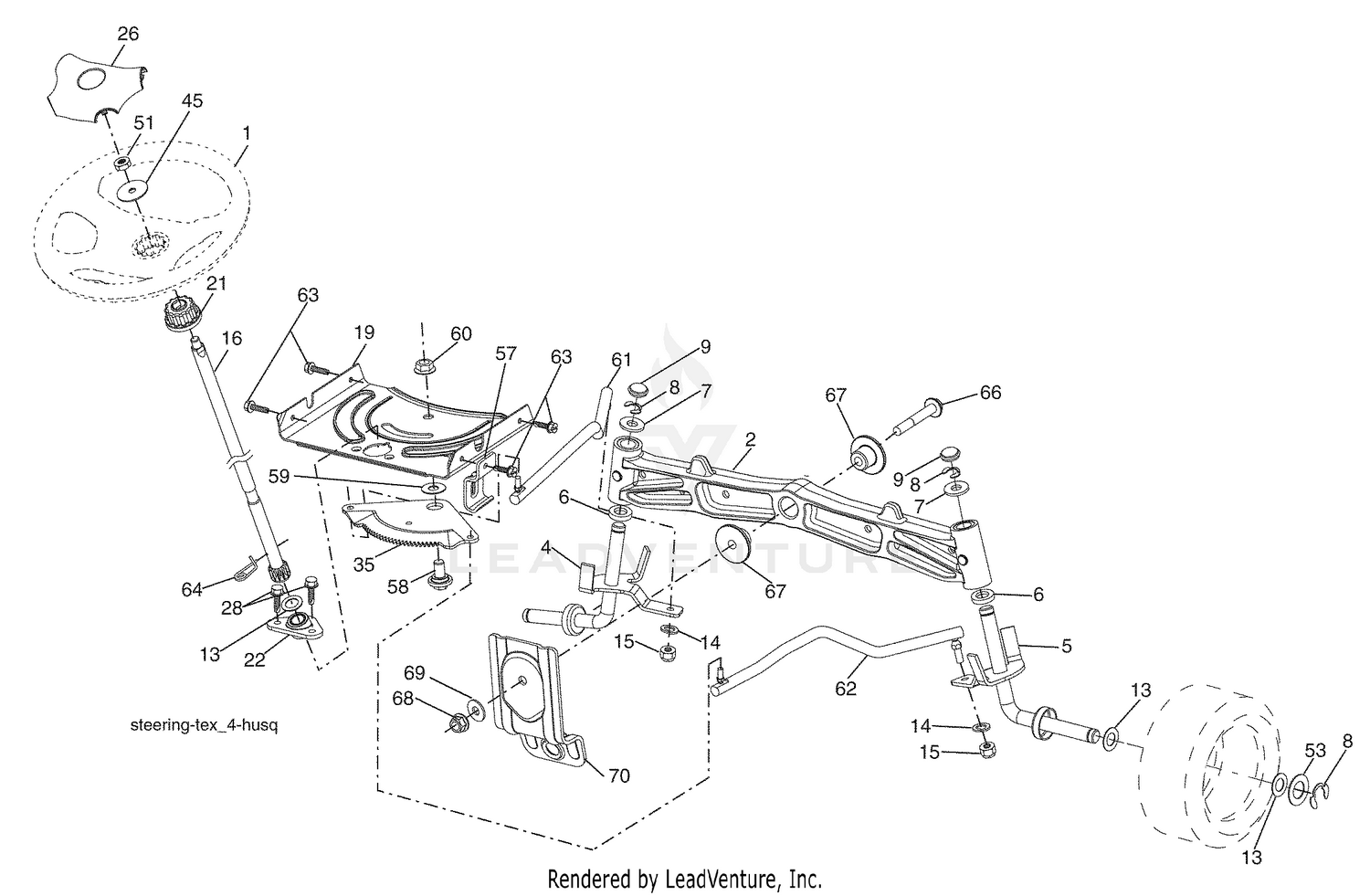

| Ref | Part Number | Description |
|---|
| 1 |
532423469 |
WHEEL STEERING Price: $32.99 |
| 1 |
58-9580-03 |
REST-FOOT Price: $291.45 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 2 |
60-0640-01 |
PEDAL-TRACTION Price: $172.47 |
| 3 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 4 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 5 |
60-2110 |
PIN Price: $1.42 |
| 6 |
48-6790 |
BEARING Price: $12.14 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
33014-00 |
NUT-HEX Price: $0.25 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
3-2858 |
DISC-FRICTION Price: $31.32 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
60-1130 |
LEVER Price: $177.91 |
| 11 |
3290-483 |
WASHER-CONICAL Price: $7.61 |
| 12 |
325-9 |
SCREW-HH Price: $1.87 |
| 13 |
47-7030 |
BUSHING-RUBBER Price: $31.76 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
3217-9 |
NUT-HH Price: $0.37 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532408219. Price: $34.99 |
| 18 |
33114-035 |
SCREW-HH This part replaces 48-7740. Price: $3.77 |
| 19 |
48-7100 |
DAMPER-STEERING Price: $441.57 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
3219-5 |
NUT-HEX Price: $1.22 |
| 21 |
58-4310 |
COLLAR-PINNED Price: $51.49 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
58-5100 |
WASHER-TRACTION Price: $28.50 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532194845. Price: $14.99 |
| 23 |
60-5700 |
SPRING Price: $27.02 |
| 24 |
58-9010 |
TAB-CLAMP Price: $60.87 |
| 25 |
3274-89 |
SCREW-HSH Price: $8.07 |
| 26 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM This part replaces 532415987. Price: $8.99 |
| 27 |
3250-40 |
SCREW-SPH Price: $0.54 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 28 |
98-1209-03 |
LEVER-PUMP Price: $336.56 |
| 29 |
60-6990 |
WASHER Price: $4.62 |
| 30 |
3255-24 |
WASHER-LOCK / EXT Price: $0.25 |
| 31 |
3217-29 |
NUT-HEX Price: $0.25 |
| 32 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 33 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 35 |
112-6500-01 |
BRACKET-LOCK, NEUTRAL This part replaces 60-0730-01. Price: $300.58 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 36 |
92-9228-03 |
LEVER Price: $170.54 |
| 37 |
3296-19 |
NUT-HEX Price: $0.65 |
| 38 |
60-6740 |
WASHER Price: $2.31 |
| 39 |
92-9221 |
CABLE ASM Price: $19.69 |
| 40 |
92-4730-03 |
PLATE-FLOOR Price: $1,213.65 |
| 42 |
60-0760 |
CLEVIS-ROD, TRACTION Price: $42.76 |
| 43 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 44 |
33114-020 |
SCREW-HH This part replaces 66-3160. Price: $0.28 |
| 45 |
58-0400-01 |
SHROUD Price: $472.86 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 46 |
62-7400 |
DECAL Price: $24.54 |
| 47 |
60-0600-03 |
BRACKET-PIVOT Price: $236.10 |
| 48 |
60-1110 |
BUSHING Price: $15.95 |
| 49 |
3-7877 |
GRIP-HANDLE Price: $10.69 |
| 50 |
325-7 |
SCREW-HH Price: $1.53 |
| 51 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 52 |
2411-44 |
END-ROD Price: $72.59 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 54 |
76-3430 |
ROD-TRACTION Price: $79.20 |
| 55 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 57 |
532197246 |
BRKT.UPSTOP.GT/LT.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 65 |
322-6 |
SCREW-HH Price: $0.45 |
| 66 |
3218-2 |
NUT-JAM Price: $0.25 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
32128-20 |
NUT-HF Price: $0.99 |
| 71 |
33114-045 |
SCREW-HH Price: $0.68 |
| 72 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 73 |
3290-482 |
WASHER-BELLEVILLE Price: $5.87 |
