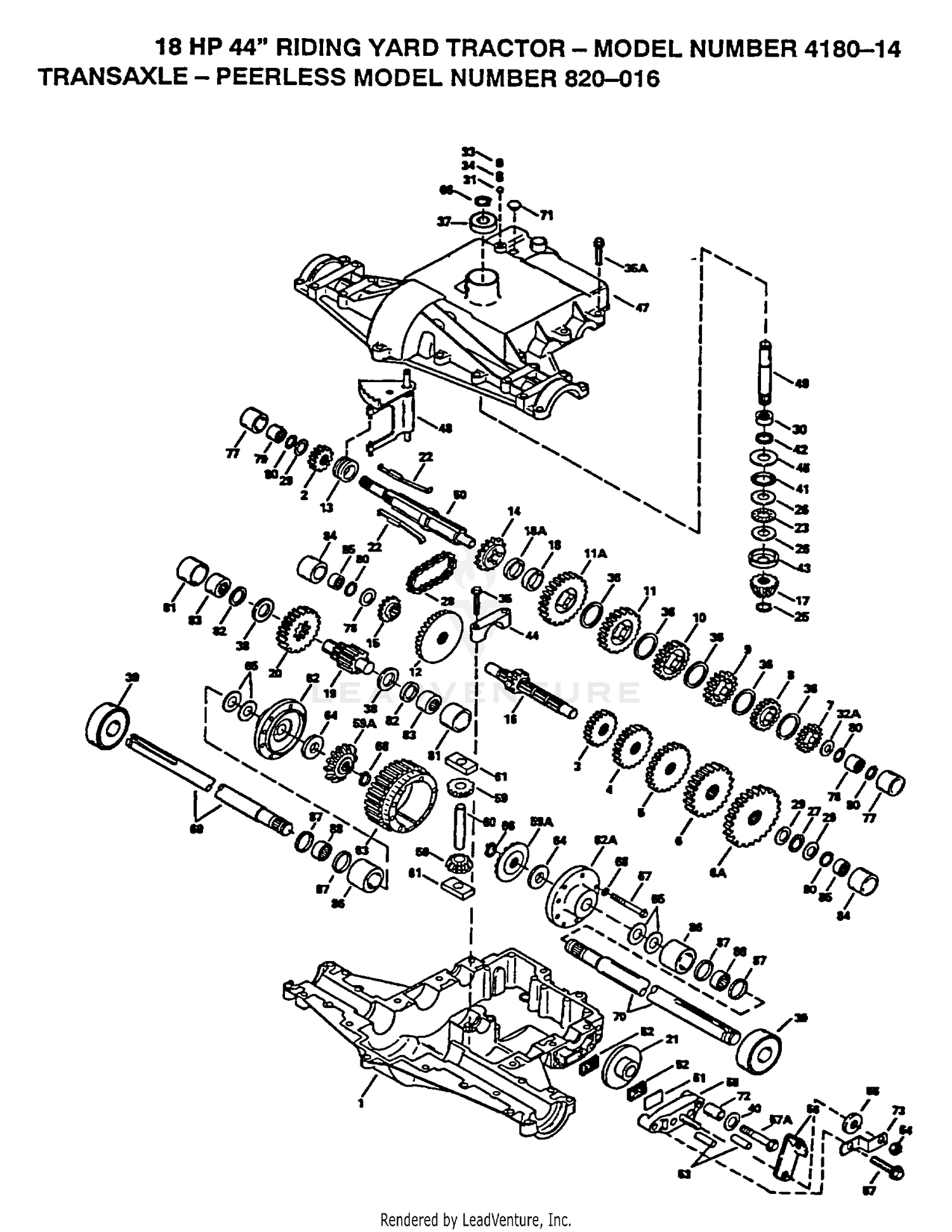

| Ref | Part Number | Description |
|---|
| 1 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 1 |
770088 |
CASE TRANSAXLE Price: Call Us |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
778253 |
GEAR, SPUR, 15T Price: Call Us |
| 3 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
778211 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 4 |
5-0652 |
SPACER Price: $5.35 |
| 4 |
778240 |
GEAR, SPUR, 18 TEETH Price: Call Us |
| 5 |
104-3401-03 |
DRIVE SHAFT ASM Price: $64.08 |
| 5 |
778201 |
GEAR, SPUR, 25T Price: Call Us |
| 6 |
27-4370 |
HUB-PUMP Price: $70.04 |
| 6 |
778202 |
GEAR, SPUR, 28T Price: Call Us |
| 6A |
778208 |
GEAR, SPUR, 31T Price: Call Us |
| 7 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 7 |
778209 |
GEAR, SPUR, 19 TEETH Price: Call Us |
| 8 |
3241-6 |
SCREW-SQH Price: $4.80 |
| 8 |
778203A |
GEAR, SPUR, 22T Price: Call Us |
| 9 |
23-2300 |
FILTER-OIL, TRANSMISSION Price: $11.03 |
| 9 |
778204A |
GEAR, SPUR, 25T Price: Call Us |
| 10 |
27-9620 |
SCREW-HH Price: $16.90 |
| 10 |
778239A |
GEAR, SPUR, 32 TEETH Price: Call Us |
| 11 |
27-3680 |
SPACER-MOUNTING Price: $6.65 |
| 11 |
778207A |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 11A |
778216A |
GEAR, SPUR, 41T Price: Call Us |
| 12 |
323-39 |
SCREW-HH Price: $1.60 |
| 12 |
778246 |
GEAR BEVEL, 33T Price: Call Us |
| 13 |
784216 |
COLLAR SHIFT Price: Call Us |
| 13 |
99-5677 |
TRANSMISSION ASM This part replaces 92-5513. Price: $4,071.30 |
| 14 |
27-3690 |
GASKET-TRANSMISSION Price: $8.27 |
| 14 |
786123 |
SPROCKET 18T (REV) Price: Call Us |
| 15 |
786082 |
SPROCKET 9T Price: Call Us |
| 15 |
86-7220 |
GEAR-PINION Price: $81.33 |
| 16 |
32120-72 |
RING-SNAP Price: $2.09 |
| 16 |
776291 |
SHAFT COUNTER Price: Call Us |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 17 |
778245 |
BEVEL PINION, 13T Price: Call Us |
| 18 |
63-7170 |
ANCHOR-TRANSMISSION Price: $37.61 |
| 18 |
786121 |
SPACER, .350/.340 THICK Price: Call Us |
| 18A |
786122 |
SPACER, .276/.268 THICK Price: Call Us |
| 19 |
3218-3 |
NUT-JAM Price: $0.25 |
| 19 |
776275 |
SHAFT, OUTPUT, 9T Price: Call Us |
| 20 |
66-8490 |
HOSE-HYD Price: $140.41 |
| 20 |
778247 |
GEAR, OUTPUT, 35T Price: Call Us |
| 21 |
790043 |
DISK BRAKE Price: Call Us |
| 21 |
82-8530 |
FITTING-STR,ORIF Price: $36.90 |
| 22 |
66-3110 |
FITTING-HYD, 90 DEG Price: $61.37 |
| 22 |
792138 |
KEY Price: Call Us |
| 23 |
353-979 |
FITTING-STR Price: $12.62 |
| 23 |
780084 |
BEARING THRUST Price: Call Us |
| 25 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 25 |
788040 |
RETAINING RING Price: Call Us |
| 26 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 26 |
780051 |
WASHER THRUST Price: Call Us |
| 27 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 27 |
780071 |
THRUST BEARING Price: Call Us |
| 28 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 28 |
786081 |
CHAIN, ROLLER Price: Call Us |
| 29 |
780072 |
WASHER THRUST Price: Call Us |
| 29 |
92-5076 |
ADAPTER-FILTER Price: $266.19 |
| 30 |
780155 |
BEARING NEEDLE Price: Call Us |
| 30 |
92-5085 |
UNION-FILTER Price: $86.00 |
| 31 |
792077 |
BALL STEEL, 5/16" DIA. Price: Call Us |
| 31 |
92-5087 |
SEAL-ADAPTOR, FILTER Price: $25.51 |
| 32 |
92-5086 |
FITTING-ELBOW, 90 DEG Price: $53.77 |
| 32A |
780139 |
WASHER Price: Call Us |
| 33 |
792078 |
SCREW, 3/8-16 X 3/8" Price: Call Us |
| 33 |
92-5512 |
FITTING-STR Price: $21.46 |
| 34 |
3220-7 |
NUT-JAM Price: $4.09 |
| 34 |
792079 |
SPRING Price: Call Us |
| 35 |
353-990 |
PLUG ASM Price: $10.01 |
| 35 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 35A |
792129 |
SCREW HEX HD 5/16-18 X 1-1/4 Price: Call Us |
| 36 |
353-988 |
PLUG-HEX Price: $10.61 |
| 36 |
780108 |
WASHER THRUST Price: Call Us |
| 37 |
115-4523 |
COUPLING-RUBBER This part replaces 44-2230. Price: $52.81 |
| 37 |
780119 |
BEARING BALL Price: Call Us |
| 38 |
27-6590 |
SPACER-COUPLING, RUBBER Price: $13.38 |
| 38 |
780128 |
WASHER THRUST Price: Call Us |
| 39 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 39 |
780050 |
BEARING BALL Price: Call Us |
| 40 |
3210-5 |
SCREW-HH Price: $0.54 |
| 40 |
792128 |
WASHER FLAT Price: Call Us |
| 41 |
32152-5 |
NUT-HEX Price: $0.54 |
| 42 |
3210-8 |
SCREW-HH Price: $1.02 |
| 42 |
788042 |
OIL SEAL 3/4 Price: Call Us |
| 43 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 44 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 44 |
786131 |
BEARING CAP Price: Call Us |
| 45 |
67-1900 |
SCREW-HH Price: $3.46 |
| 45 |
780165 |
WASHER Price: Call Us |
| 46 |
2412-4 |
CLAMP-R Price: $4.22 |
| 47 |
772098 |
COVER, TRANSAXLE Price: Call Us |
| 48 |
784342 |
ROD AND FORK ASSY SHIFT Price: Call Us |
| 49 |
776274 |
SHAFT INPUT Price: Call Us |
| 50 |
776313 |
SHAFT BRAKE Price: Call Us |
| 51 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 52 |
790006 |
PAD BRAKE Price: Call Us |
| 53 |
786026 |
PIN DOWEL Price: Call Us |
| 54 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 55 |
792076 |
WASHER, FLAT Price: Call Us |
| 56 |
790047 |
LEVER BRAKE Price: Call Us |
| 57 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 57A |
792085 |
SCREW FLNG HEX 1/4-20 X 2-1/4 Price: Call Us |
| 58 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 59 |
778197 |
PINION, 10T Price: Call Us |
| 59A |
778198 |
GEAR BEVEL Price: Call Us |
| 60 |
786019 |
PIN DRIVE Price: Call Us |
| 61 |
786027 |
BLOCK DRIVE Price: Call Us |
| 62 |
774833 |
CARRIER DIFF THREADED HOLES Price: Call Us |
| 62A |
774834 |
CARRIER DIFF Price: Call Us |
| 63 |
778248 |
GEAR, RING, 31T Price: Call Us |
| 64 |
780107 |
WASHER Price: Call Us |
| 65 |
780042 |
WASHER THRUST Price: Call Us |
| 66 |
792018 |
RING STRAP Price: Call Us |
| 67 |
792020 |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 68 |
792006 |
WASHER LOCK 1/4 Price: Call Us |
| 69 |
774832 |
AXLE, 12-5/16" LONG Price: Call Us |
| 70 |
774831 |
AXLE, 16-3/16" LONG Price: Call Us |
| 71 |
792074 |
PLUG, THRDED, 9/16-18 Price: Call Us |
| 72 |
786067 |
SPACER Price: Call Us |
| 73 |
780166 |
WASHER CUPPED Price: Call Us |
| 73 |
786086 |
BRKT BRAKE LEVER Price: Call Us |
| 76 |
780153 |
WASHER Price: Call Us |
| 77 |
786144 |
SLEEVE Price: Call Us |
| 78 |
780150 |
BEARING NEEDLE Price: Call Us |
| 79 |
780152 |
BEARING NEEDLE Price: Call Us |
| 81 |
786142 |
SLEEVE STEPPED Price: Call Us |
| 82 |
788071 |
RING SQ CUT Price: Call Us |
| 83 |
780049 |
BEARING, NEEDLE Price: Call Us |
| 84 |
786143 |
SLEEVE STEPPED Price: Call Us |
| 85 |
780151 |
BEARING NEEDLE CAPPED Price: Call Us |
| 86 |
786145 |
SLEEVE STEPPED Price: Call Us |
| 87 |
788070 |
RING SQ CUT Price: Call Us |
