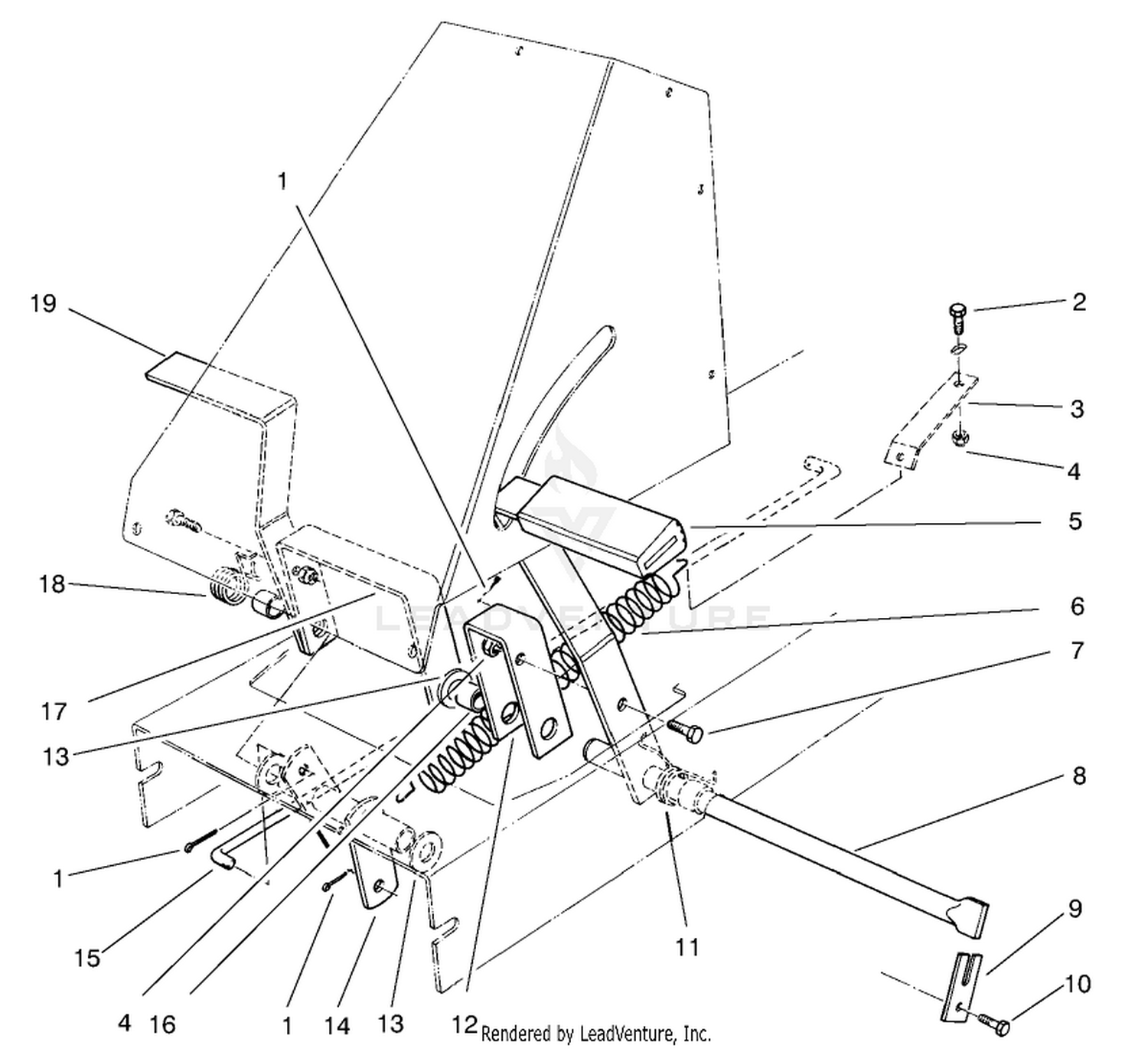

| Ref | Part Number | Description |
|---|
| 1 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 2 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 3 |
56-7240 |
BRKT-SPRING RET Price: $6.39 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
65-2920 |
PAD-PEDAL Price: $22.41 |
| 6 |
62-3930 |
SPRING-EXTENSION Price: $36.75 |
| 7 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 8 |
47-0770 |
SHAFT-PEDAL PIVOT Price: $44.83 |
| 9 |
47-0780 |
DISCONTINUED Price: Call Us |
| 10 |
321-4 |
SCREW-HH Price: $0.99 |
| 11 |
56-7070 |
SPRING-TORS CLUTCH Price: $18.75 |
| 12 |
47-0560-03 |
BRACKET-PEDAL Price: $13.72 |
| 13 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 14 |
56-7650-03 |
PIVOT TUBE ASM Price: $49.45 |
| 15 |
56-7570 |
ROD-ENGAGE Price: $21.50 |
| 16 |
47-0570 |
SPACER-PEDAL Price: $8.06 |
| 17 |
47-0550-03 |
DISCONTINUED Price: Call Us |
| 18 |
56-7080 |
SPRING-TORS BRAKE Price: $15.42 |
