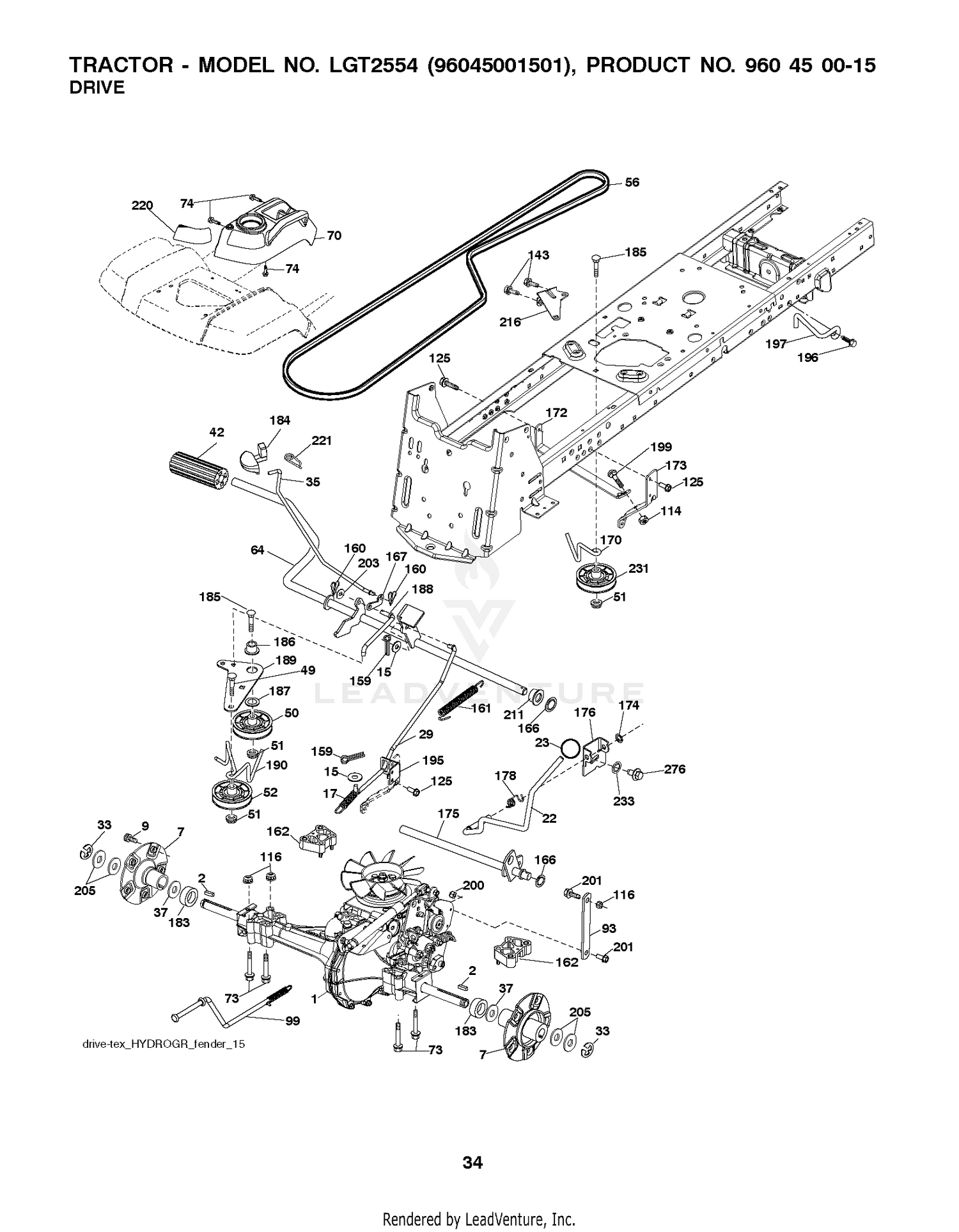

| Ref | Part Number | Description |
|---|
| 1 |
92-0450-03 |
BRACKET-PIN Price: $19.10 |
| 2 |
92-0448 |
PIN-PIVOT Price: $100.36 |
| 3 |
106-5247-03 |
TRACTION PEDAL ASM Price: $244.19 |
| 4 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 5 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 6 |
80-7730 |
SPACER Price: $1.97 |
| 7 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 8 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 9 |
3220-3 |
NUT-HJ Price: $0.28 |
| 10 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 11 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 12 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 13 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 14 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 15 |
104-7201 |
NUT-HF Price: $0.69 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
321-9 |
SCREW-HH Price: $0.27 |
| 17 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 18 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 19 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 20 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 21 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 22 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 23 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 24 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532140218 |
V-BELT. Price: $49.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 70 |
532439660 |
SUBASM.CONSOLE.HUSQ.GT.HYDRO This part replaces 532400298. Price: $79.99 |
| 73 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 93 |
532198254 |
LINK.SHIFT.T/A.0610.TE Price: $3.99 |
| 99 |
532406642 |
ROD.BYPASS.HYDRO.0510/0610.GT Price: $14.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532428305. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 175 |
532197653 |
SHAFT.ASM.SHFT.HG0510/ Price: $17.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $6.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $4.99 |
| 183 |
532400424 |
SPACER.SPLIT.800X.350 Price: $4.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 195 |
532198012 |
BRKT.ROD.BRAKE.18/20/2 Price: $3.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 199 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 200 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 201 |
596231101 |
BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $5.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
| 233 |
596135201 |
Washers This part replaces 532405296. Price: $2.99 |
