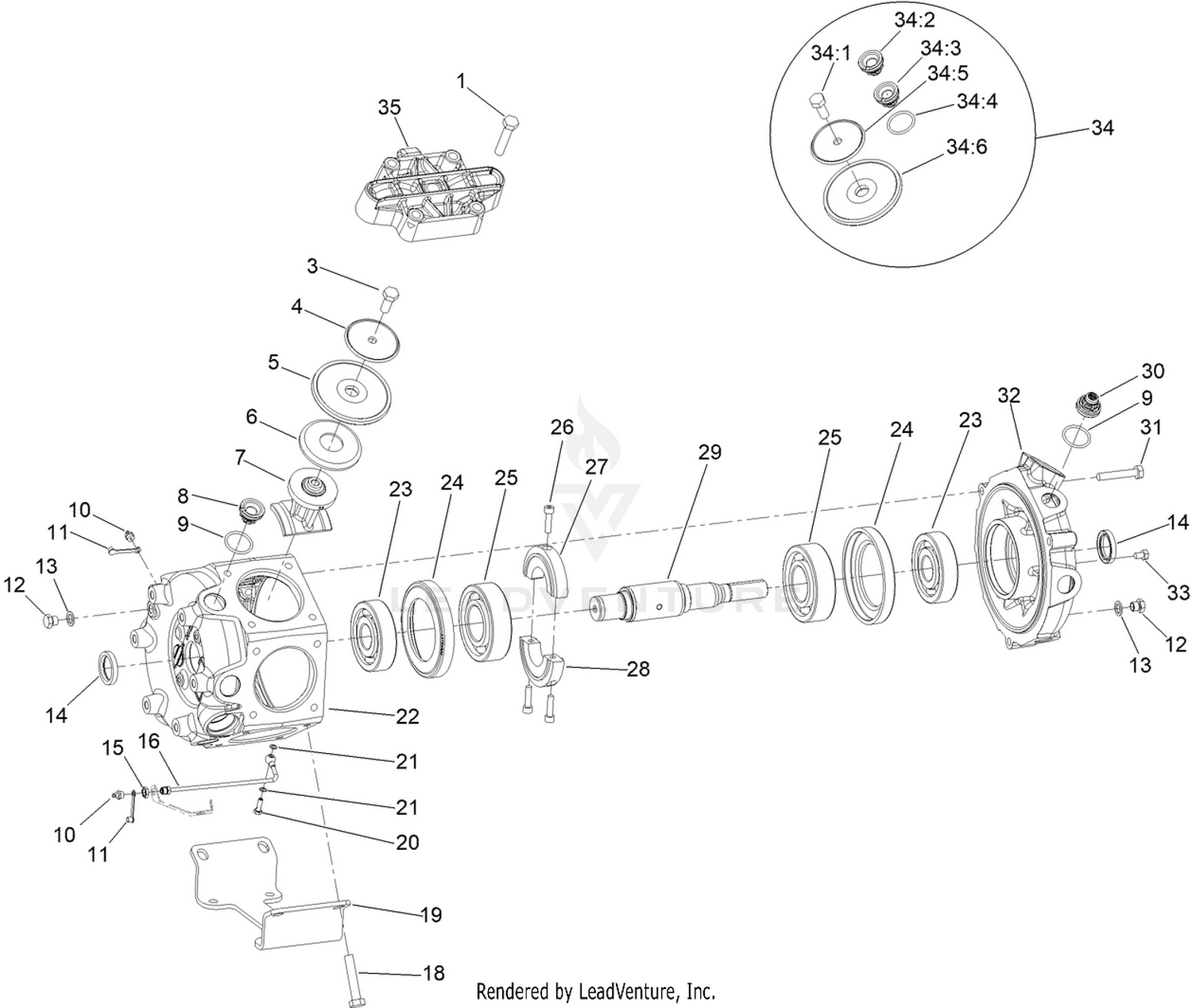

Pump Assembly No. 145-3381
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-0773 | BOLT-HEX Price: $3.15 |
| 3 | 120-0777 | BOLT-HEX Price: $8.62 |
| 4 | 120-0778 | DISC-DIAPHRAGM Price: $54.29 |
| 5 | 120-0779 | DIAPHRAGM Price: $90.88 |
| 6 | 120-0780 | DISC-BACKING, DIAPHRAGM Price: $8.46 |
| 7 | 125-8141 | ROD-CONNECTIING Price: $254.11 |
| 8 | 99-0861 | VALVE-PUMP Price: $65.70 |
| 9 | 100-6651 | O-RING Price: $8.81 |
| 10 | 133-2879 | NIPPLE-GREASE Price: $9.83 |
| 11 | 133-2880 | CAP-GREASE NIPPLE, YELLOW Price: $3.54 |
| 12 | 120-0785 | PLUG Price: $12.21 |
| 13 | 120-0786 | SEAL Price: $2.66 |
| 14 | 120-0783 | SEAL-OIL Price: $8.75 |
| 15 | 133-2878 | NUT Price: $1.42 |
| 16 | 133-2877 | TUBE-BANJO, LONG Price: $92.00 |
| 18 | 120-0774 | BOLT-HEX Price: $3.07 |
| 19 | 120-0787 | FOOT-PUMP Price: $157.76 |
| 20 | 133-2830 | BOLT-BANJO Price: $30.85 |
| 21 | 136-2251 | GASKET Price: $1.79 |
| 22 | 133-2821 | HOUSING-PUMP, MAIN Price: $2,168.51 |
| 23 | 120-0788 | BEARING-BALL Price: $149.10 |
| 24 | 133-2820 | SPACER-METAL Price: $95.32 |
| 25 | 120-0791 | BEARING-BALL Price: $180.61 |
| 26 | 125-8146 | BOLT-ALLEN Price: $1.22 |
| 27 | 133-2828 | COUNTER WEIGHT Price: $123.31 |
| 28 | 133-2829 | COUNTER WEIGHT Price: $70.13 |
| 29 | 133-2826 | SHAFT - CRANK Price: $767.76 |
| 30 | 120-0793 | VALVE W/HOLE Price: $64.60 |
| 31 | 120-0794 | BOLT-HEX Price: $1.36 |
| 32 | 133-2822 | HOUSING-PUMP, FRONT Price: $1,193.86 |
| 33 | 120-0784 | BOLT-HEX Price: $0.68 |
| 34 | 120-0796 | PUMP KIT Price: $856.47 |
