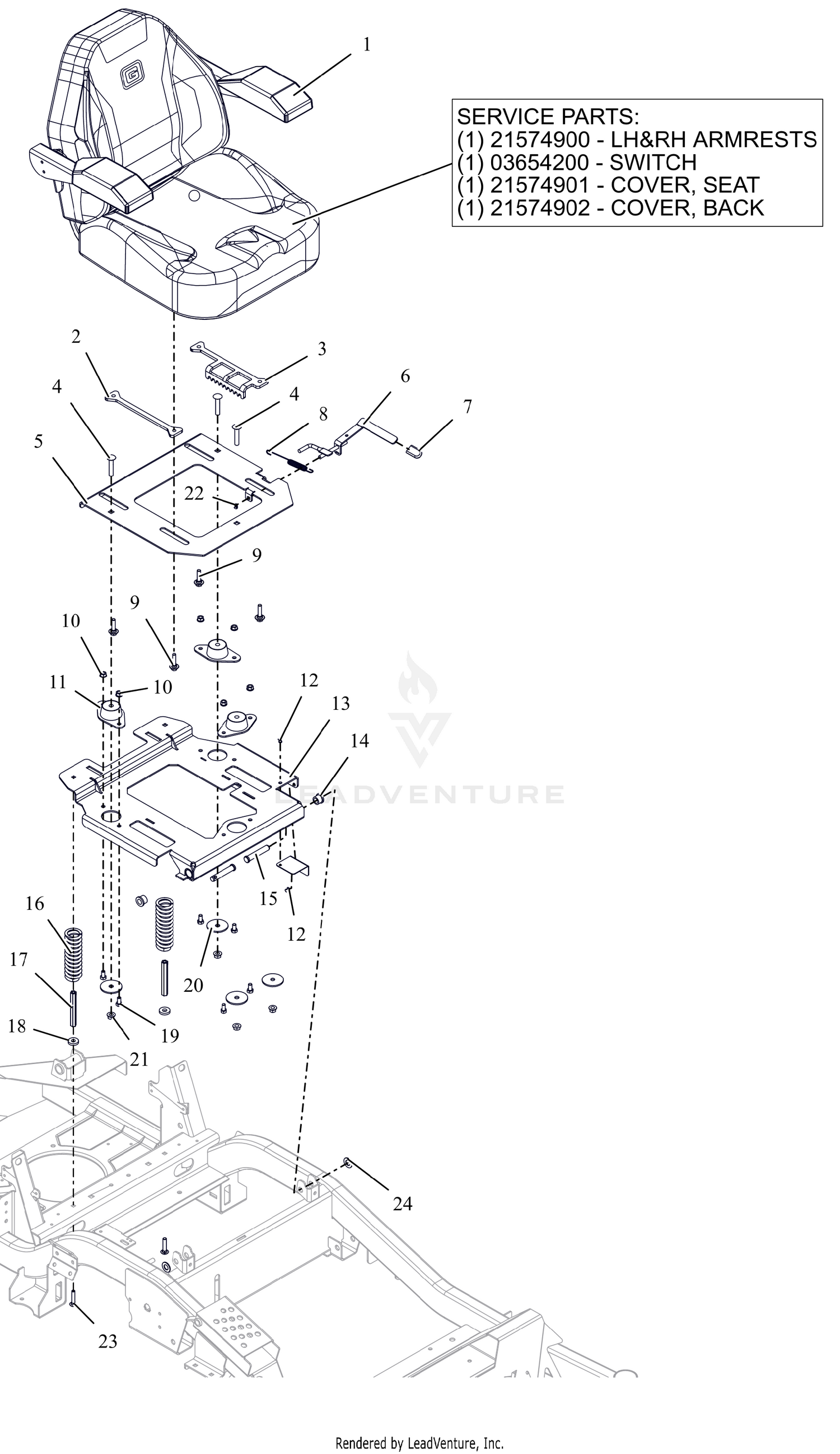

| Ref | Part Number | Description |
|---|
| 1 |
09190900 |
SEAT, HD Price: $592.95 |
| 2 |
09363451 |
PLATE, ADJ SEAT SLIDE (BLACK) Price: $9.45 |
| 3 |
09363551 |
PLATE, SEAT ADJ (BLACK) Price: $24.45 |
| 4 |
06200323 |
BLT,RHSSN.375-16X2.00 G5 ZCC Price: $2.45 |
| 5 |
30148153 |
PLATE- SEAT MTG 3PT (ISO KIT) Price: $37.95 |
| 6 |
05015251 |
WLDMT, SEAT SLIDE LEVER Price: $19.45 |
| 7 |
04396600 |
GRIP, SEAT LEVER, GREY Price: $2.45 |
| 8 |
08300022 |
SG-TENS .06X.482X5.35 Price: $5.45 |
| 9 |
07001929 |
BLT, SHLDR .31-18 X .175 Price: $2.45 |
| 10 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 11 |
07500520 |
MOUNT- FAIL-SAFE COMPRESSION Price: $32.95 |
| 12 |
06800120 |
RIVET, .1875 AL/AL .126-.250 Price: $1.45 |
| 13 |
30135951 |
WLDMT- ISO MTG PLATE 3PT Price: $101.95 |
| 14 |
05500901 |
BSHG, FLG .516X.750X.625X.937 Price: $5.45 |
| 15 |
06800202 |
PIN, SLIC-.500X42.70X2.31 -ZC Price: $7.45 |
| 16 |
08300704 |
SPRING, COMPRESSION SEAT 224LB Price: $15.45 |
| 17 |
06500828 |
NUT, COUPLING 5/16X18 X 3.75 Price: $11.45 |
| 18 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC Price: $2.45 |
| 19 |
05901832 |
BLT, HEX .31-18X.625 G5 ZCC Price: $1.45 |
| 20 |
06401221 |
WSHR-FL-STL 0.406X2X0.125 ZCC Price: $3.45 |
| 21 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 22 |
06514900 |
NUT-PUSH .312 Price: $0.45 |
| 23 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC Price: $1.45 |
