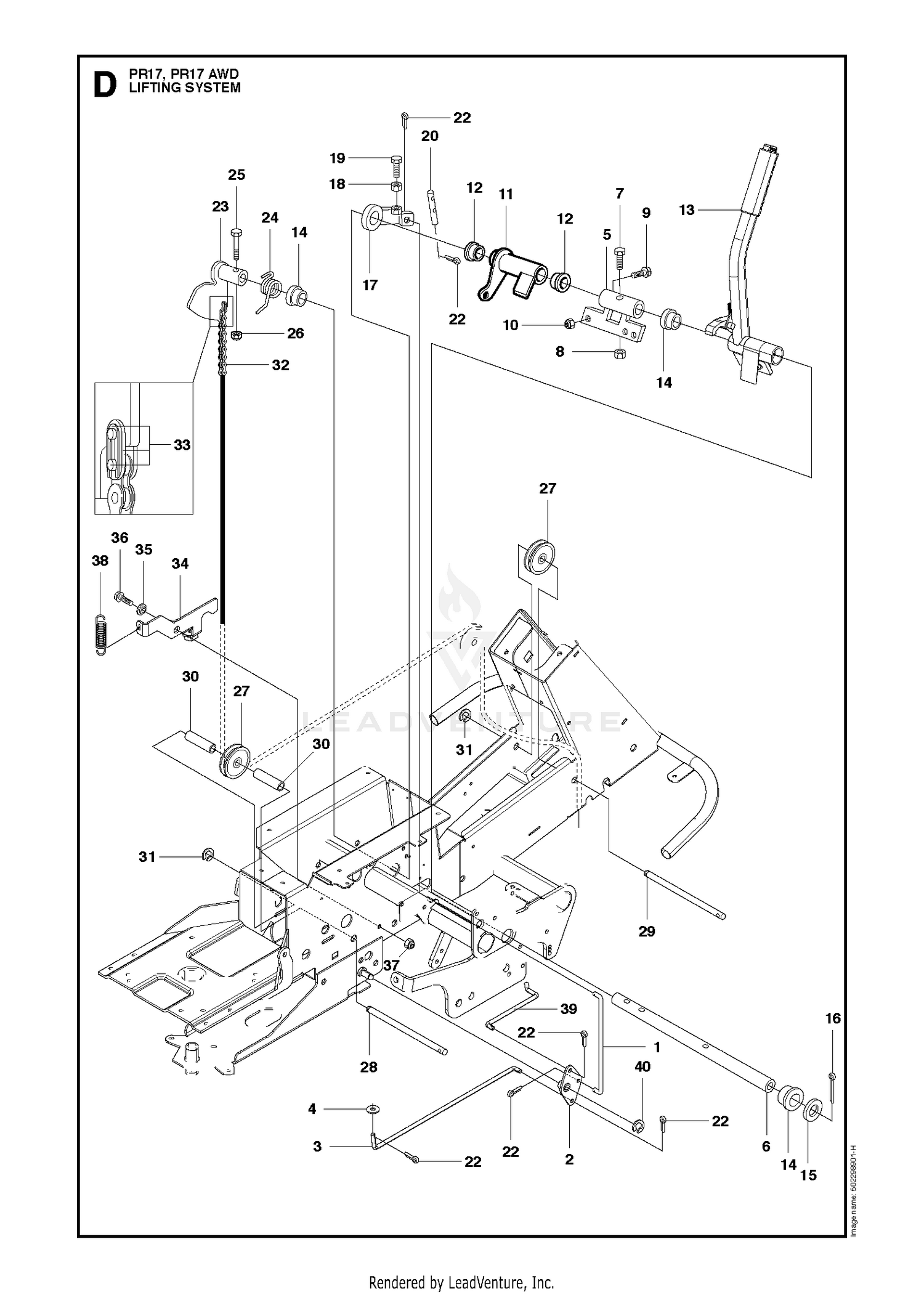

MOWER LIFT / DECK LIFT
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506665901 | ROD Price: $14.99 |
| 2 | 504636701 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 535444703 | NEEDS DESCRIPTION Price: Call Us |
| 4 | 734116441 | SPACER Price: $3.99 |
| 5 | 506951101 | Price: $66.56 |
| 6 | 506968001 | SHAFT Price: $69.99 |
| 7 | 725254451 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 732252201 | Nut Price: $2.65 |
| 9 | 725245371 | SCREW This part replaces 725245351. Price: $4.99 |
| 10 | 731231801 | NUT Price: $3.99 |
| 11 | 506951401 | ARM Price: $109.99 |
| 12 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 13 | 504907901 | LIFTING LEVER ASSY Price: $54.99 |
| 14 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 15 | 506515701 | WASHER Price: $3.05 |
| 16 | 721620101 | SPLIT PIN Price: $1.99 |
| 17 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 18 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 19 | 725249751 | SCREW Price: $4.99 |
| 20 | 525406601 | PIN Price: $7.99 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 23 | 506940501 | ARM Price: $159.99 |
| 24 | 506817001 | SPRING Price: $6.99 |
| 25 | 725254471 | Price: Call Us |
| 26 | 732252201 | Nut Price: $2.65 |
| 27 | 506905601 | PULLEY Price: $14.99 |
| 28 | 506905701 | SHAFT Price: $18.26 |
| 29 | 506905702 | SHAFT Price: $19.99 |
| 30 | 506905801 | SPACER Price: $11.99 |
| 31 | 735311820 | Lock Ring Price: $1.99 |
| 32 | 506554608 | CHAIN Price: $54.13 |
| 33 | 506554701 | LINK Price: $4.99 |
| 34 | 504628702 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 36 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 37 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 38 | 506542501 | SPRING Price: $6.99 |
| 40 | 735311420 | RETAINING RING Price: $2.99 |
